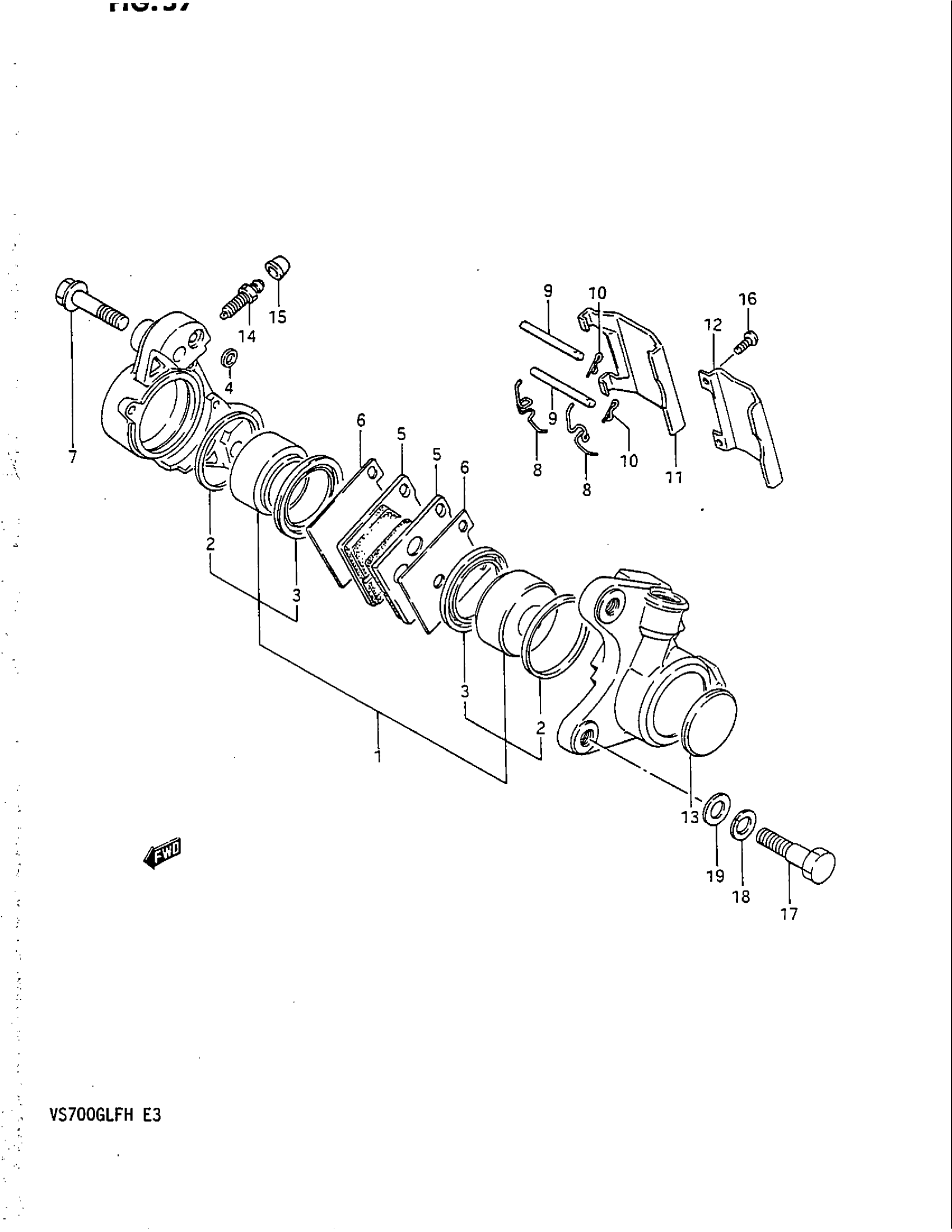

Suzuki VS700GLEF (1987) FRONT CALIPER Diagram

#

Description
Price

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 59300-24A00.

59300-38A01

Unavailable

NO DESCRIPTION AVAILABLE | MODEL H; Includes Item(s) 1 - 16 This part replaces 59300-38A00.

59300-38A01

Unavailable

1

PISTON SET This part replaces 69100-24820.

69100-24821

Unavailable

2

PISTON SEAL This part replaces 55136-66310.

69107-38B00

$9.22

3

BOOT

69108-45000

$8.00

4

SEAL

69107-34200

$9.80

5

PAD SET This part replaces 59130-24A00.

59100-38820

$52.40

6

SHIM

59371-33410

$16.68

7

BOLT

59145-16700

$9.97

8

SPRING

59143-16700

$5.30

9

PIN

69141-45000

$4.86

10

.CLIP, PAD PIN

69142-45000

$3.97

11

COVER (BLACK) | MODEL G

59151-24A00

Unavailable

12

COVER | MODEL H This part replaces 59151-38B00.

59151-38B01

Unavailable

13

CAP, CALIPER

59152-24A00

Unavailable

14

BLEEDER

59121-18410

$7.99

15

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

$4.73

16

SCREW (4X6) | MODEL H This part replaces 59153-38B00.

59153-38B10

$8.80

17

BOLT

09104-10029

$3.25

18

LOCK WASHER This part replaces 08321-21107.

08321-01107

$1.83

19

WASHER This part replaces 08322-21108.

08322-01107

$1.88
