Partiron

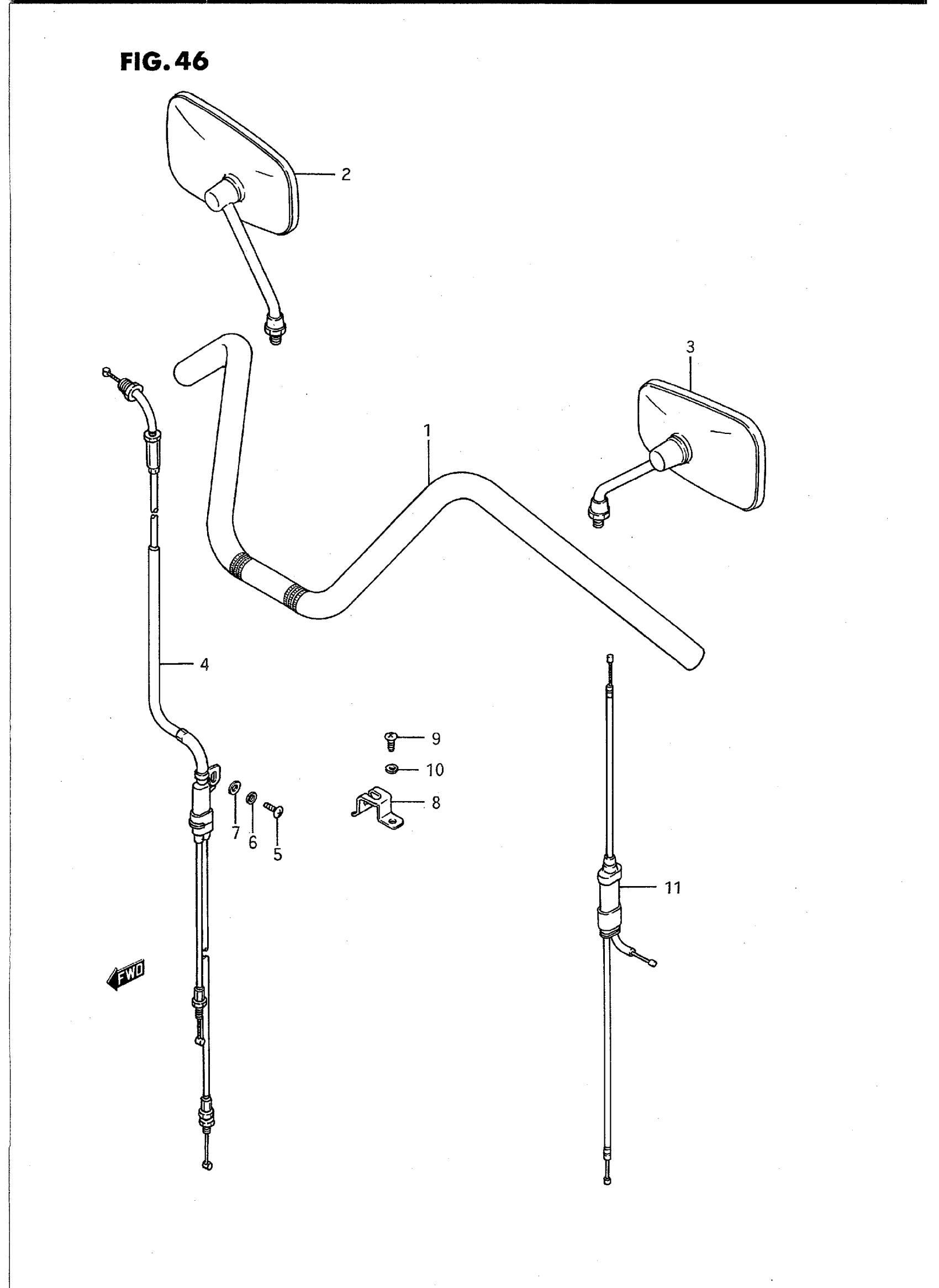

Suzuki VS1400GLPS (1995) HANDLEBAR (VS1400GLPH Diagram

#

Description
Price

1

HANDLEBAR (PULL BACK TYPE) | ->56111-38B31 This part replaces 56111-38B10.

56111-38B32

Unavailable

1

HANDLEBAR (PULL BACK TYPE) This part replaces 56111-38B31.

56111-38B32

Unavailable

2

MIRROR ASSY,RR This part replaces 56500-38B00.

56500-38B02

$90.97

3

MIRROR ASSY,RR This part replaces 56600-38B00.

56600-38B02

$89.70

4

CABEL ASSY,THRO This part replaces 58300-38B10.

58300-38B12

Unavailable

5

SCREW | VS1400GLPH,MODEL J/L This part replaces 02112-05168.

02112-05167

$1.97

5

SCREW | MODEL M/N/P This part replaces 02112-75168.

02112-7516A

$2.42

5

SCREW | MODEL R This part replaces 02112-75163.

02112-7516A

$2.42

6

LOCK WASHER | VS1400GLPH,MODEL J/L This part replaces 08321-21057.

08321-0105A

$1.83

7

WASHER | VS1400GLPH,MODEL J/L This part replaces 08322-21057.

08322-01057

$1.86

8

CLAMP, THROTTLE CABLE

58621-38B00

$7.22

9

SCREW | MODEL H/J/L/M/N/P

02112-05107

$1.43

9

SCREW | MODEL R This part replaces 02112-75163.

02112-7516A

$2.42

10

LOCK WASHER | MODEL H/J/L/M/N/P This part replaces 08321-21057.

08321-0105A

$1.83

11

CABLE, STARTER This part replaces 58400-38B01.

58400-39B00

$47.90

12

REFER TO FIG.46A(G-11) FOR

SPECIAL NOTE

Unavailable
