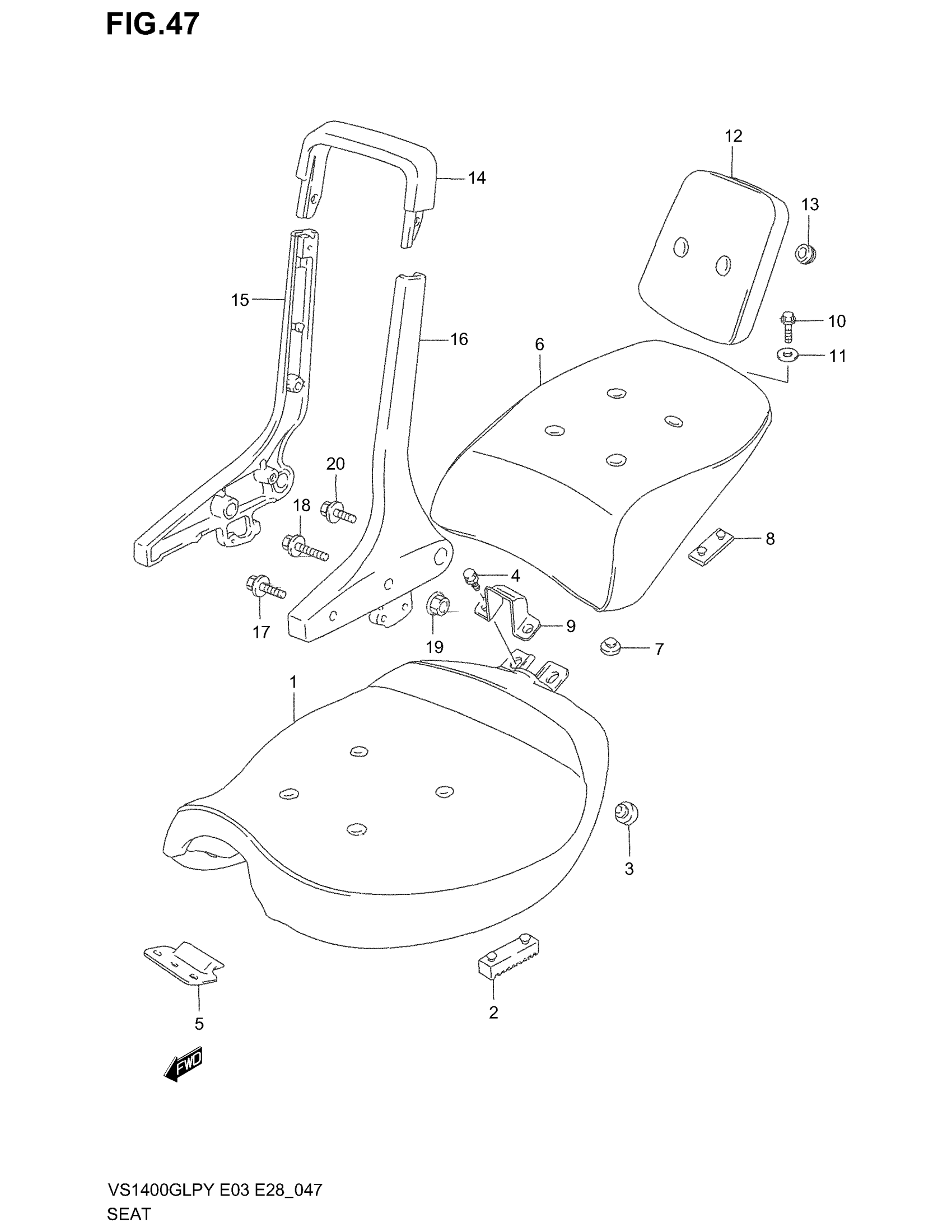

Suzuki VS1400GLP (2003) SEAT Diagram

#

Description
Price

1

SEAT ASSY | Includes Item(s) 2 - 3 This part replaces 45100-38B60-E7T.

45100-38B61-E7T

$847.40

2

CUSHION

45148-38B01

$10.12

3

CUSHION

09321-10012

$2.80

4

BOLT | MODEL T/V/W/X This part replaces 01570-06203.

01570-0620A

$2.21

4

BOLT | MODEL Y/K1/K2/K3 This part replaces 02162-06203.

02162-0620C

$1.73

5

BRACKET, SEAT FRONT

45210-38B00

$22.25

6

SEAT ASSY, PILLION | Includes Item(s) 7 - 8

45300-38B60-E7T

Unavailable

7

CUSHION

09321-10022

$2.37

8

CUSHION, REAR

45149-38B00

Unavailable

9

BRACKET, SEAT FRONT

45119-38B00

$7.00

10

BOLT, PILLION REAR (6X17.5)

09111-06057

$5.43

11

WASHER

09160-09016

$2.50

12

PAD ASSY, SEAT | Includes Item(s) 13

45350-38A60-E7T

Unavailable

13

CUSHION This part replaces 09320-09026.

09320-09062

$2.14

14

HANDLE, PILLION RIDER UPPER

46211-38B01

Unavailable

15

NO DESCRIPTION AVAILABLE This part replaces 46212-38B01.

46212-38B11

Unavailable

16

HANDLE,PILLION This part replaces 46213-38B01.

46213-38B11

Unavailable

17

BOLT, FRONT This part replaces 01580-06403.

01580-0640B

$4.03

18

BOLT, CENTER This part replaces 01580-08453.

01580-0845B

$5.10

19

NUT This part replaces 08316-10083.

08316-1008B

$2.65

20

BOLT, REAR This part replaces 01580-06203.

01580-0620B

$3.58
