2003 Suzuki VS1400GLP Rear Caliper Diagram

← All diagrams

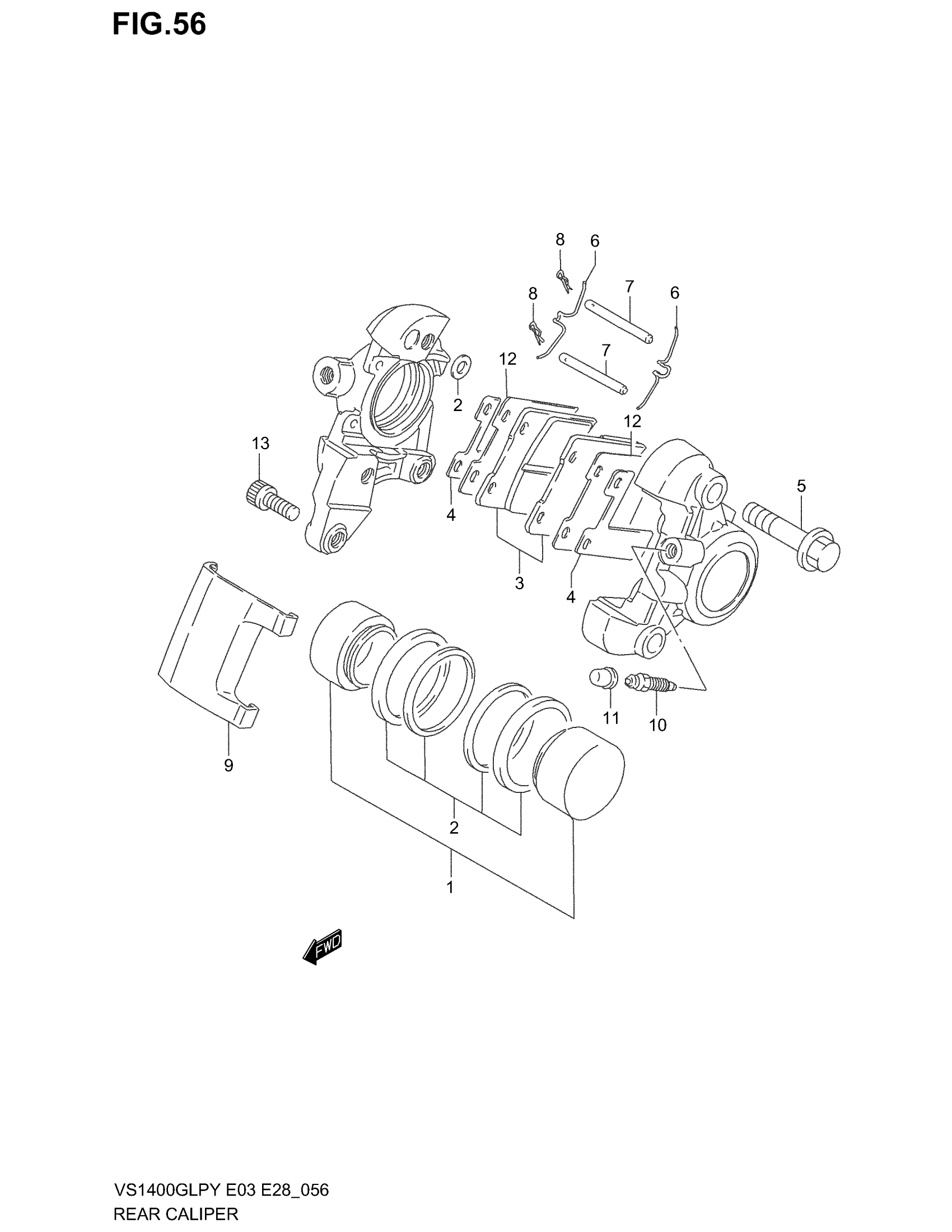

Find the part on the Rear Caliper diagram for your 2003 Suzuki VS1400GLP, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Suzuki VS1400GLP Rear Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

CALIPER ASSY, REAR | Includes Item(s) 1 - 12 This part replaces 69100-38B11.

69100-38B50-999

1
Out of stock

1

PISTON SET This part replaces 69100-38850.

69100-38851

1
Out of stock

2

SEAL SET, PISTON This part replaces 69100-38830.

69100-38831

1
Out of stock

3

PAD SET

69100-38820

1
Out of stock

4

SHIM

59371-33420

2
Out of stock

5

BOLT

59145-16700

2
Out of stock

6

SPRING

59143-16700

2
Out of stock

7

PIN

69141-45000

2
Out of stock

8

.CLIP, PAD PIN

69142-45000

2
Out of stock

9

COVER

59151-24A00

1
Out of stock

10

BLEEDER

59121-18410

1
Out of stock

11

CAP

55156-66310

1
Out of stock

12

SHIM

59371-33410

2
Out of stock

13

BOLT This part replaces 07130-10203.

07130-1020B

2
Out of stock
