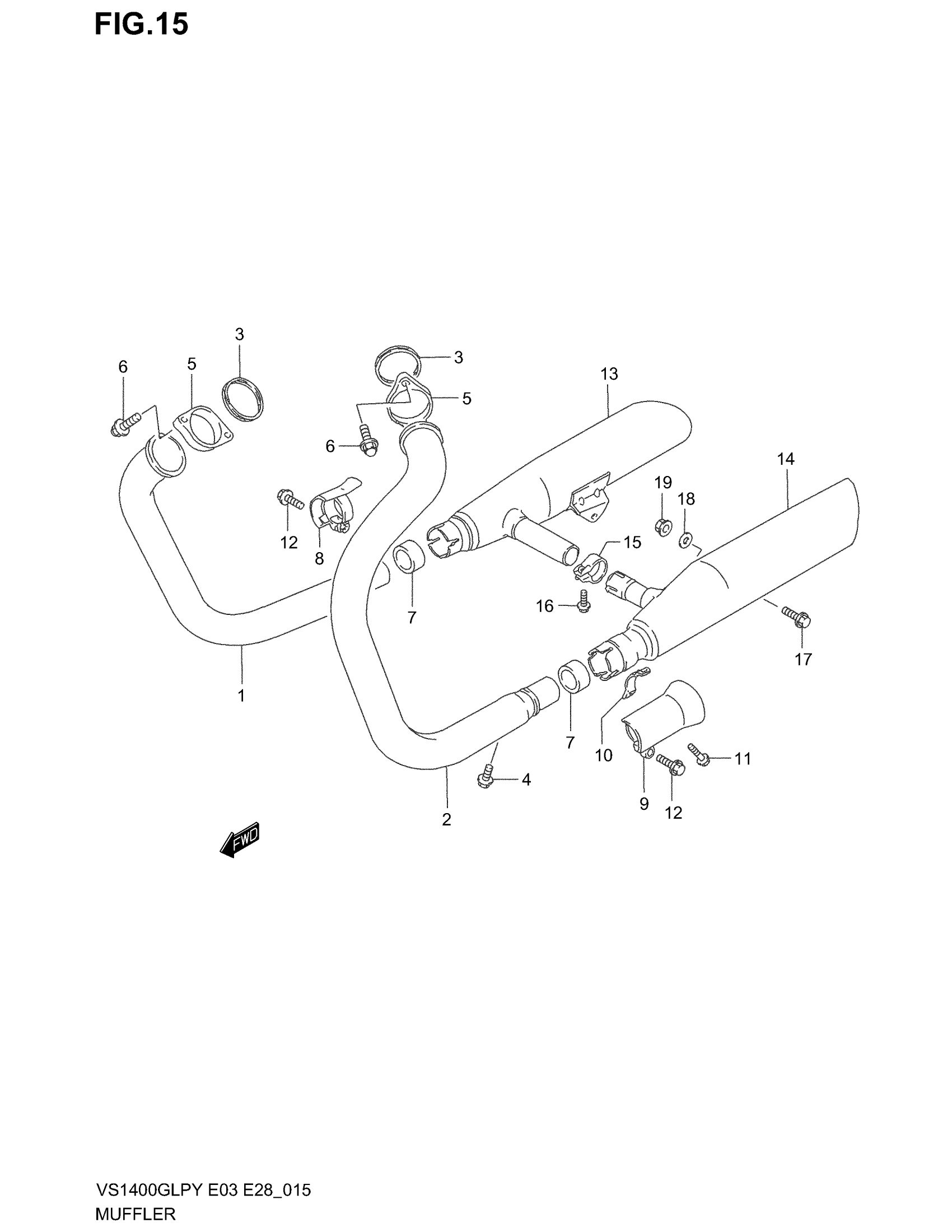

Suzuki VS1400GLP (2003) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST RH | MODEL T This part replaces 14150-38B20.

14150-38B21

Unavailable

1

PIPE, EXHAUST RH | MODEL V/W/X/Y/K1/K2/K3

14150-38B21

Unavailable

2

PIPE, EXHAUST LH | MODEL T This part replaces 14160-38B20.

14160-38B21

Unavailable

2

PIPE, EXHAUST LH | MODEL V/W/X/Y/K1/K2/K3

14160-38B21

Unavailable

3

GASKET, EXHAUST PIPE

14181-45C00

$6.75

4

BOLT, EXHAUST DRAIN

01547-06127

$1.67

5

CLAMP, EXHAUST PIPE

14182-38A02

$47.90

6

BOLT (8X35)

09104-08026

$3.44

7

CONNECTOR, MUFFLER | MODEL T

14771-38B01

$31.55

7

CONNECTOR, MUFFLER | MODEL V/W/X/Y/K1/K2/K3

14771-46E00

$17.59

8

CLAMP, MUFFLER CONNECTOR RH

14450-38B02

$75.92

9

CLAMP, MUFFLER CONNECTOR LH

14460-38B02

$87.65

10

CLAMP, MUFFLER CONNECTOR LH

14785-24A00

$9.60

11

BOLT

01547-06207

$2.01

12

BOLT (8X35)

09103-08241

$5.43

13

MUFFLER, RH

14310-38B40-H01

Unavailable

14

MUFFLER, LH

14340-38B40-H01

Unavailable

15

CLAMP, EXHAUST COUPLER

14772-38B00

$10.58

16

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

17

BOLT

01550-08307

$3.24

18

WASHER (8.5X26X1.6) | MODEL T/V This part replaces 09160-08004.

09160-08134

$2.06

18

WASHER (8.5X26X1.6) | MODEL W/X/Y/K1/K2/K3

09160-08134

$2.06

19

NUT | MODEL T/V/W/X/Y This part replaces 08316-10083.

08316-1008B

$2.65

19

NUT | MODEL K1/K2/K3 This part replaces 08319-31083.

08319-3108A

$2.31
