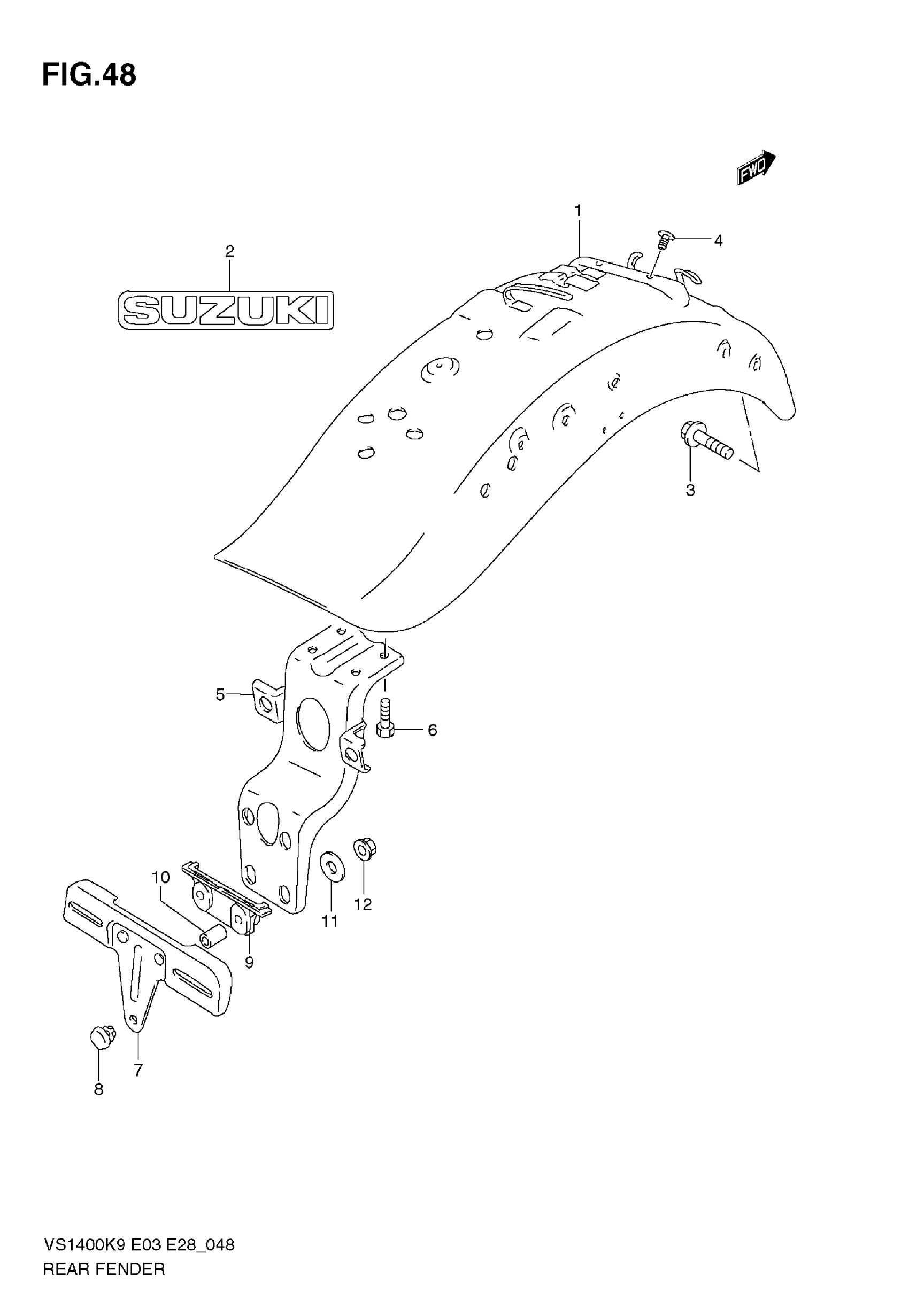

Suzuki VS1400 (2009) REAR FENDER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 63100-39B00-YAY.

63110-38B01-13L

Unavailable

1

FENDER, REAR (GRAY) | Includes Item(s) 2

63100-39B00-YHG

Unavailable

2

.EMBLEM,"SUZUKI" (SILVER) This part replaces 68271-34A00-YES.

68271-34A01-YES

$9.08

3

BOLT

01550-0820B

$2.80

4

CAP (BLACK)

09250-05011-5PK

Unavailable

5

BRACKET, LAMP

63460-38B00

$117.03

6

BOLT

01570-0612B

Unavailable

7

PLATE, LICENSE

63463-38B10

$51.22

8

CUSHION This part replaces 09321-08005.

09321-08025

$2.58

9

CUSHION, PLATE

63464-38B00

$19.45

10

SPACER

09180-05050

$5.10

11

WASHER (5.5X20X1.2)

09160-05051

Unavailable

12

NUT

08316-2005B

$3.13
