2009 Suzuki VS1400 Rear Caliper Diagram

← All diagrams

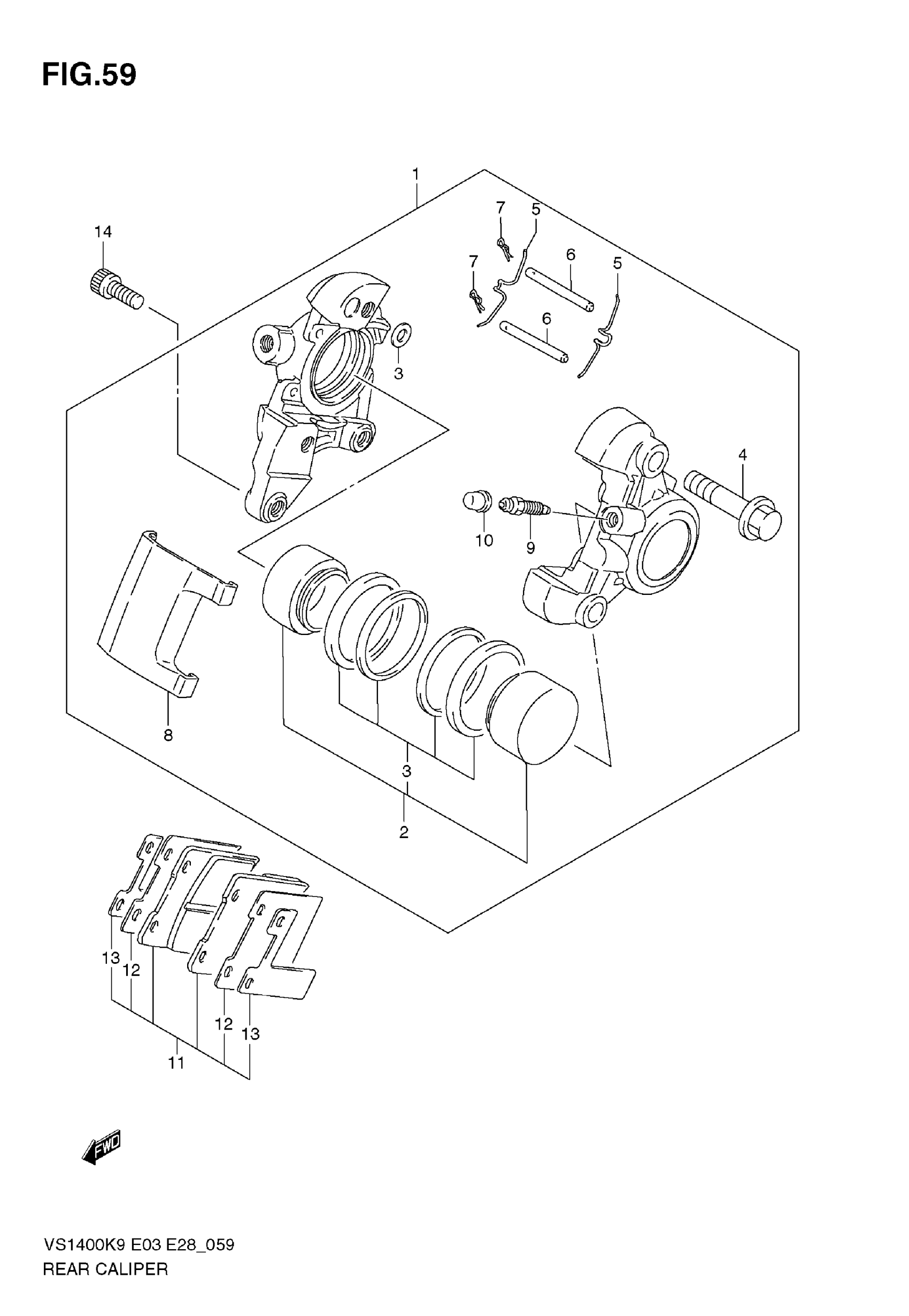

Find the part on the Rear Caliper diagram for your 2009 Suzuki VS1400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki VS1400 Rear Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY, REAR | Includes Item(s) 2 - 10

69100-38B50-999

1
Out of stock

2

PISTON SET

69100-38851

1
Out of stock

3

SEAL SET, PISTON

69100-38831

1
Out of stock

4

BOLT

59145-16700

2
Out of stock

5

SPRING

59143-16700

2
Out of stock

6

PIN

69141-45000

2
Out of stock

7

.CLIP, PAD PIN

69142-45000

2
Out of stock

8

COVER

59151-24A01

1
Out of stock

9

BLEEDER

59121-18410

1
Out of stock

10

CAP

55156-66310

1
Out of stock

11

PAD & SHIM SET | Includes Item(s) 12 - 13

69100-38880

1
Out of stock

12

SHIM

59371-33410

2
Out of stock

13

SHIM

59371-33420

2
Out of stock

14

BOLT This part replaces 07130-10203.

07130-1020B

2
Out of stock
