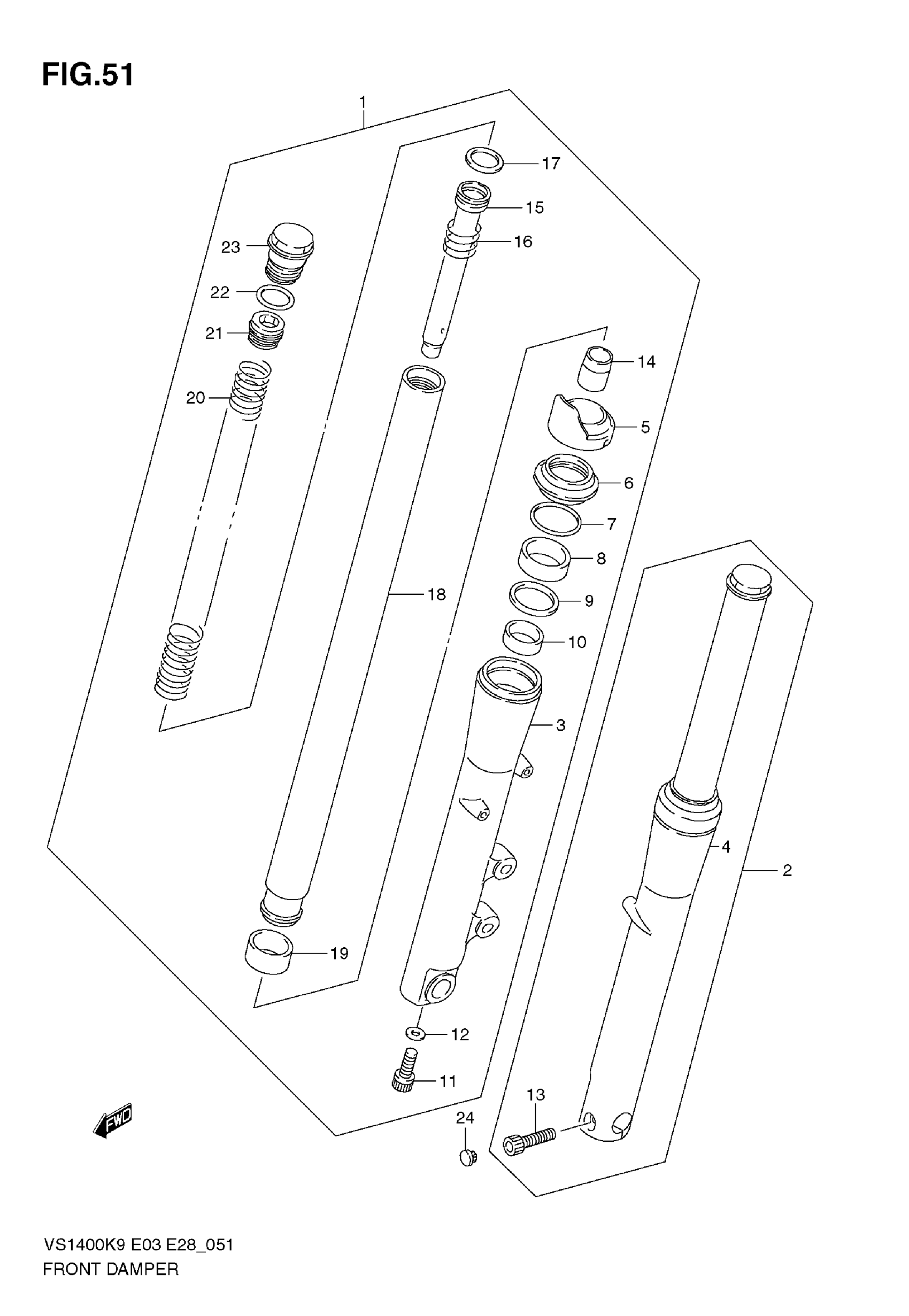

Suzuki VS1400 (2009) FRONT DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-38B70

Unavailable

2

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 3 - 23

51104-38B70

Unavailable

3

TUBE, OUTER RH

51131-38B00

Unavailable

4

TUBE, OUTER LH

51141-38B00

Unavailable

5

COVER, UPPER R

51530-38B70

Unavailable

5

COVER, UPPER L

51540-38B70

Unavailable

6

.DUST SEAL

51173-15D00

$21.83

7

RING, STOPPER

51556-38B00

$6.61

8

OIL SEAL

51153-08D00

$21.02

9

SPACER, SEAL

51168-38B00

$6.12

10

BUSH, GUIDE

51152-48B31

$25.08

11

BOLT

51147-48130

$3.97

12

GASKET (8.2X13X1.5)

51148-36011

$3.26

13

BOLT, LH

07130-08407

$2.88

14

PIECE, OIL LOCK

51195-38B00

$34.12

15

CYLINDER

51146-38B00

Unavailable

16

SPRING, REBOUND

51177-32B00

Unavailable

17

RING, PISTON

51196-32B00

$9.50

18

TUBE, INNER

51110-38B00

$569.33

19

PISTON

51121-03D00

$19.60

20

SPRING

51171-38B00

Unavailable

21

BOLT, FORK INNER

51353-38B00

$34.12

22

O RING

51117-38B00

$3.22

23

CAP

51351-38B00

$97.52

24

CAP, OUTER TUBE LH

09250-06009

$3.13
