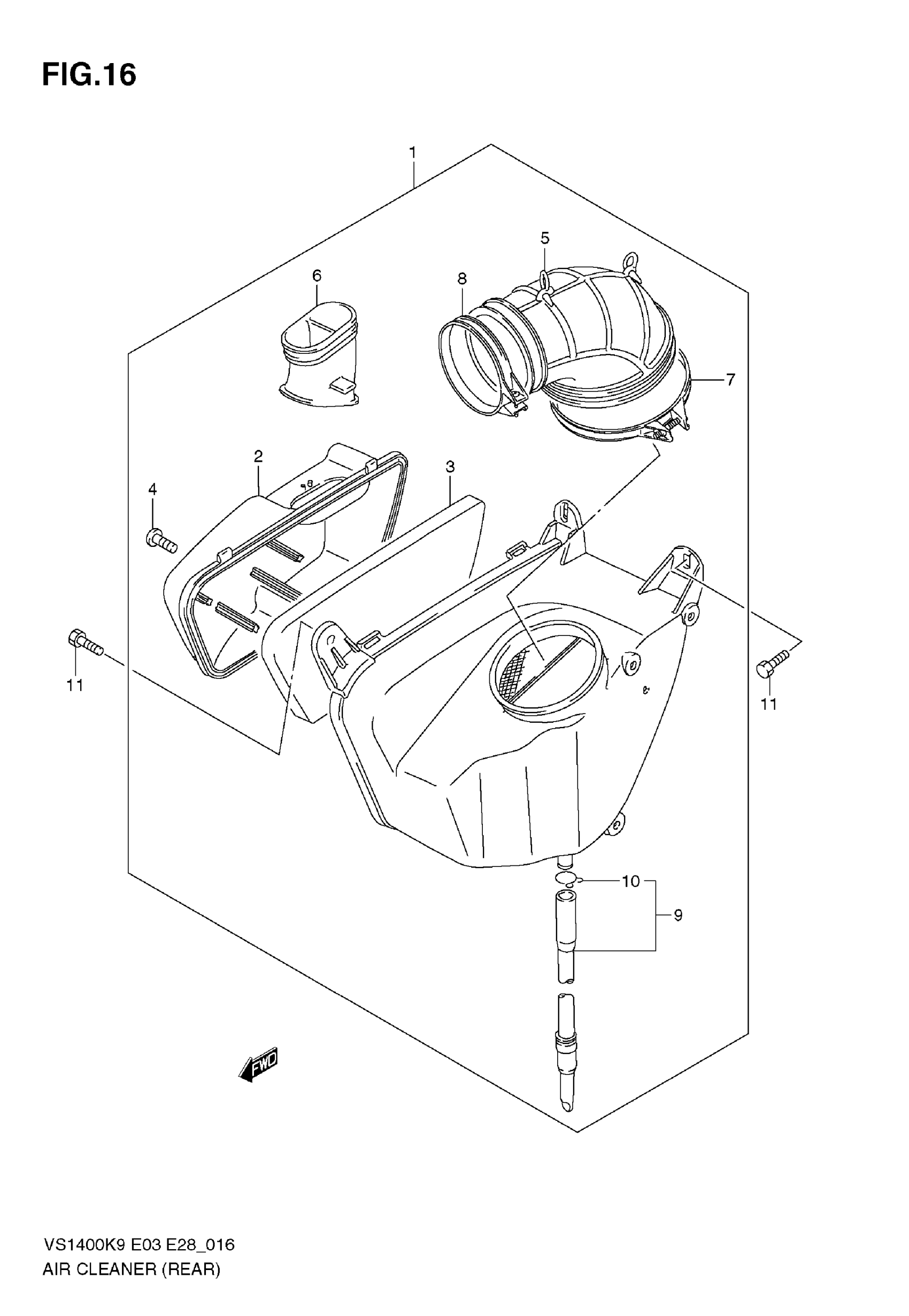

Suzuki VS1400 (2009) AIR CLEANER (REAR) Diagram

#

Description

Price

1

CLEANER ASSY,AI | Includes Item(s) 2 - 10 This part replaces 13700-38B70.

13700-38B71

$266.97

2

CAP

13740-38B51

$46.98

3

FILTER

13781-38B60

$11.85

4

SCREW

02142-0516B

$2.01

5

TUBE,AIR CLEANE This part replaces 13881-38B50.

13881-38B51

$28.08

6

TUBE, INLET

13891-38B50

$26.03

7

CLAMP This part replaces 09402-82202.

09402-82208

$5.74

8

CLAMP

09402-58208

$4.99

9

TUBE,DRAIN This part replaces 13870-11458.

13870-11459

$15.27

10

CLIP

09401-13409

$2.20

11

BOLT

01500-06207

$2.06
