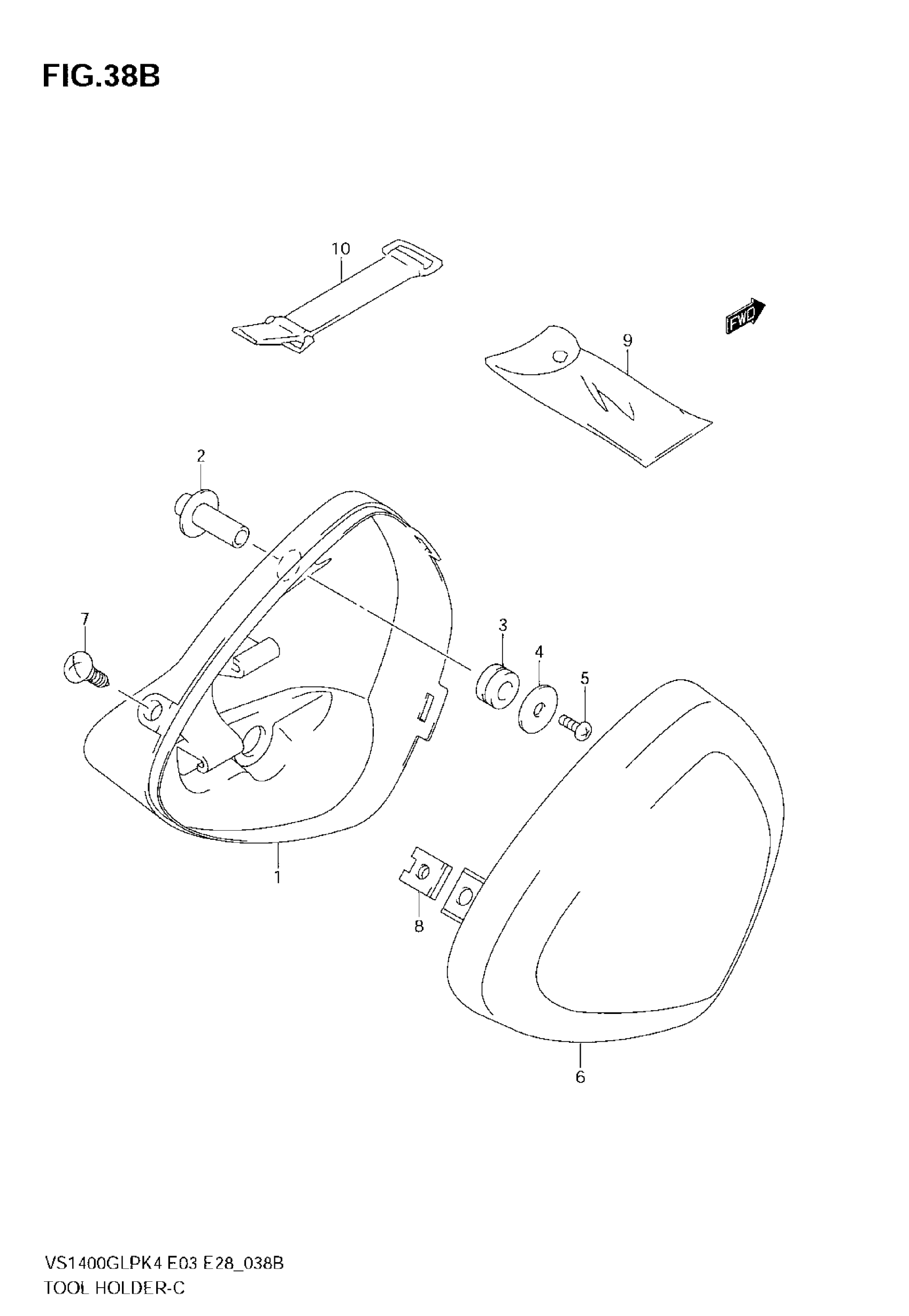

Suzuki VS1400 (2008) TOOL HOLDER (MODEL K5/K6/K7/K8) Diagram

#

Description

Price

1

BODY, TOOL HOLDER | E3,E28 This part replaces 47431-39A00.

47431-39A10

$75.95

1

BODY, TOOL HOLDER | E33

47431-39A10

$75.95

2

SPACER, TOOL HOLDER

47440-39A01

Unavailable

3

CUSHION This part replaces 09320-10052.

09320-10079

$3.43

4

WASHER | MODEL K5/K6 This part replaces 09160-06503.

09160-06054

$1.66

4

WASHER | MODEL K7/K8

09160-06158

$2.50

5

SCREW

02142-0645B

$3.42

6

CAP, TOOL HOLDER

47432-39A00

$98.10

7

SCREW, CAP

09139-06044

$4.36

8

NUT

09148-06018

$3.00

9

TOOL ASSY | MODEL K5/K6 This part replaces 09800-21014.

09800-21071

$102.27

9

TOOL ASSY | MODEL K7/K8 This part replaces 09800-21055.

09800-21102

$19.15

10

BAND, TOOL | MODEL K5/K6

09462-00008

$4.52

10

O RING(D:3.5,ID | MODEL K7/K8 This part replaces 09280-61002.

09280-61004

$2.57
