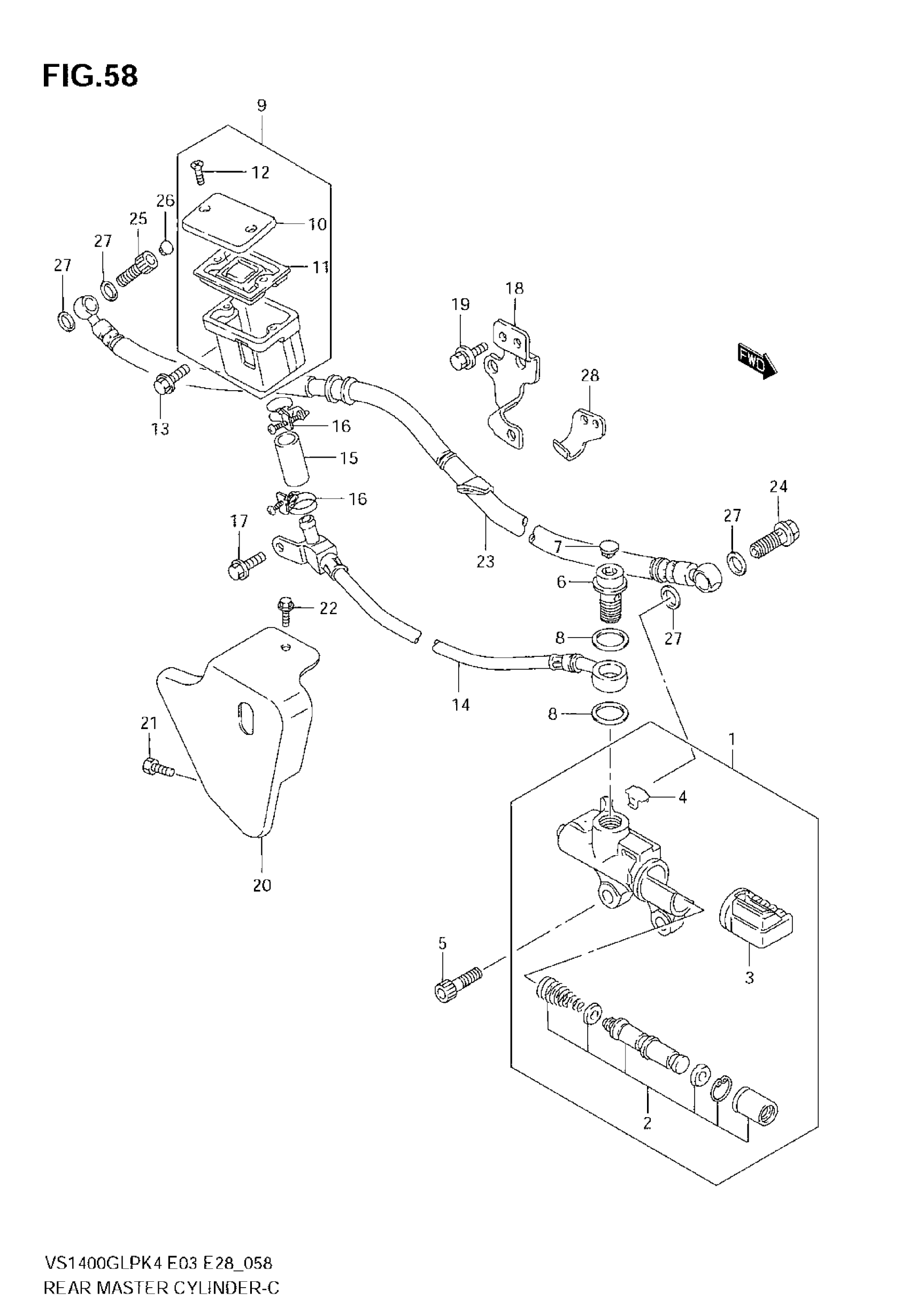

Suzuki VS1400 (2008) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 4

69600-38B01

$297.20

2

PISTON & CUP SET

69600-38810

$66.13

3

BOOT

69691-38B00

$13.30

4

PLATE, STOP

69696-38B00

Unavailable

5

BOLT (8X23)

09106-08081

$3.17

6

BOLT, BRAKE FLUID

09360-14013

Unavailable

7

CAP

09250-08014

$2.80

8

WASHER

69662-38B00

$4.70

9

TANK ASSY, RESERVOIR | Includes Item(s) 10 - 12

69740-38B21

$116.63

10

CAP

59669-05D00

$15.78

11

DIAPHRAGM

59667-04700

$8.95

12

SCREW

69689-04A00

$2.15

13

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

14

HOSE, TANK

69730-38B00

$341.80

15

HOSE, TANK

69731-38B00

$8.32

16

CLAMP

09401-13417

$2.24

17

BOLT

01550-0616B

$2.53

18

BRACKET, TANK

69750-38B00

Unavailable

19

BOLT

01550-0816B

$2.75

20

COVER, TANK (WITH HOLE)

69795-38B10

Unavailable

21

SCREW, REAR (6X10)

09128-06044

$1.38

22

BOLT, UPPER

01547-06107

$1.67

23

HOSE,RR BRAKE This part replaces 69480-38B01.

69480-38B03

$71.30

24

UNION This part replaces 09360-10039.

09360-10061

$5.89

25

BOLT (10X1.00X24)

09360-10028

Unavailable

26

CAP

09250-08012

$2.35

27

WASHER (10X15X1.5)

09161-10009

$1.83

28

CLAMP, HOSE

69244-38B00

Unavailable
