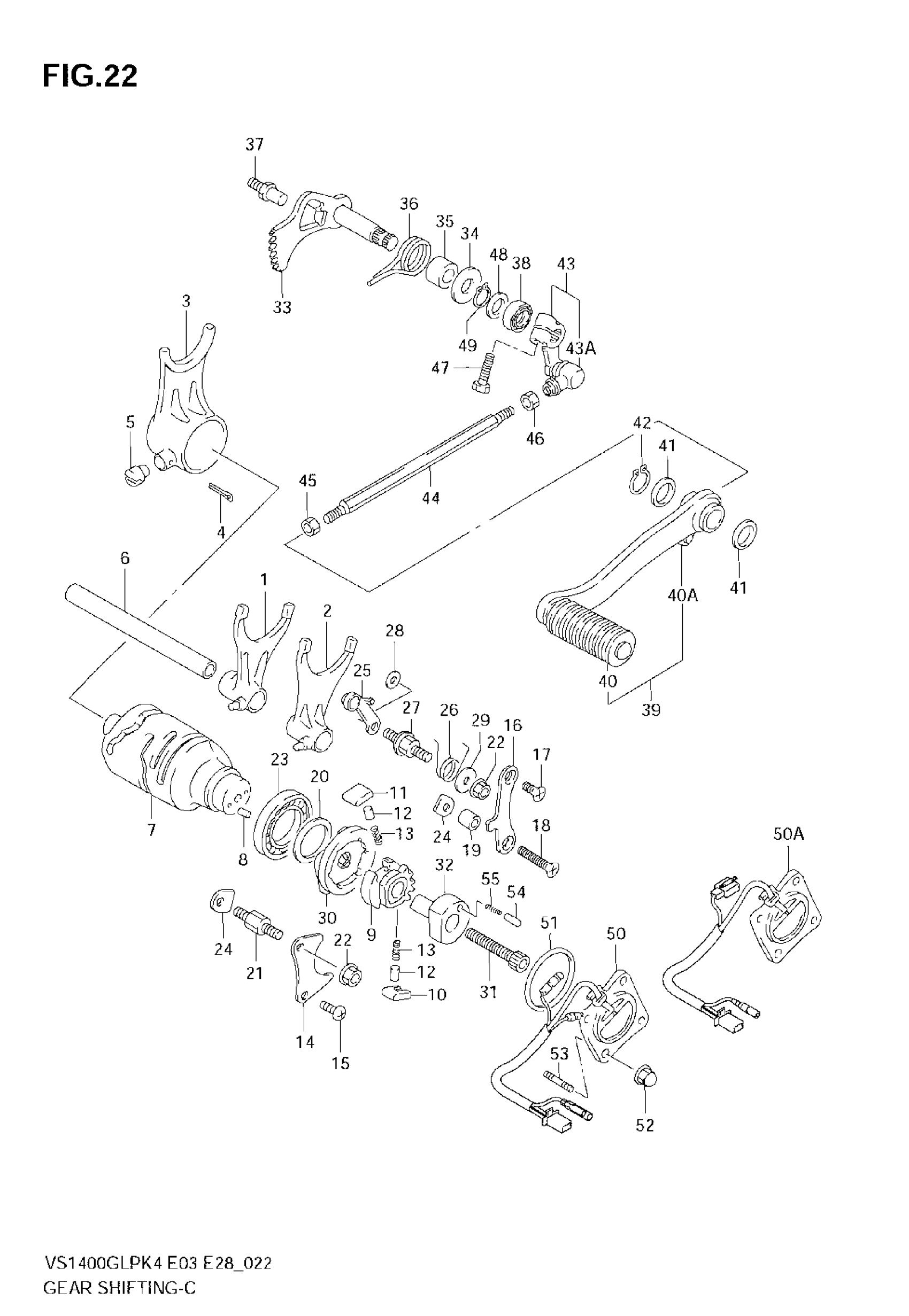

Suzuki VS1400 (2008) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFTING NO.1

25211-38B11

$93.32

2

FORK, GEAR SHIFTING NO.2

25221-38B10

Unavailable

3

FORK, GEAR SHIFTING NO.3

25231-38B10

Unavailable

4

PIN | MODEL K4/K5/K6 This part replaces 04111-25308.

04111-2530A

$1.58

4

PIN | MODEL K7/K8

04111-2525A

Unavailable

5

PIN

09209-10002

Unavailable

6

SHAFT, GEAR SHIFTING FORK

25411-38B01

$32.65

7

CAM, GEAR SHIFTING | Includes Item(s) 8

25310-38B10

Unavailable

8

PIN (4X13.8)

04221-04089

$1.10

9

GEAR, GEAR SHIFT CAM DRIVEN

25322-31310

$30.40

10

PAWL, GEAR SHIFT NO.1

25323-34201

$6.61

11

PAWL, GEAR SHIFT NO.2

25324-34201

$6.80

12

PIN

09261-05003

$1.69

13

SPRING

09440-04003

$1.48

14

LIFTER, PAWL

25331-38B00

Unavailable

15

SCREW (6X12)

09125-06110

$2.13

16

GUIDE, CAM

25341-38B00

Unavailable

17

SCREW (6X12)

09126-06011

$2.01

18

SCREW (6X30)

09126-06019

$2.28

19

SPACER (6.5X10X14)

09180-06293

$2.58

20

WASHER (25X32X3)

09160-25059

$7.20

21

BOSS

25332-38A10

Unavailable

22

NUT

08316-1006A

$2.19

23

BEARING (25X47X8)

09262-25006

$23.05

24

RETAINER, BEARING

24741-21A00

$2.80

25

STOPPER, CAM

25350-38B00

Unavailable

26

SPRING

09448-17024

Unavailable

27

SUPPORT

25356-12C00

$19.60

28

WASHER

08211-06141

$1.61

29

WASHER (6.5X18X2)

09160-06121

$3.67

30

PLATE, STOPPER

25380-38B00

Unavailable

31

BOLT (6X50)

09106-06083

$5.43

32

HOLDER, NEUTRAL SWITCH

25312-38B01

$30.80

33

SHAFT, GEAR SHIFTING

25510-38B00

Unavailable

34

WASHER (12.5X28X1.2)

09160-12091

Unavailable

35

SPACER (12X20X15.3)

09180-12068

$2.63

36

SPRING

09444-26021

$5.10

37

STOPPER, ARM

25671-38B00

$6.00

38

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$5.70

39

LEVER ASSY,GEAR | Includes Item(s) 40 - 40A This part replaces 25600-38B01.

25600-38B02

Unavailable

40

RUBBER

25652-38B00

$5.04

40A

.COVER, DUST This part replaces 25526-47000.

25526-47001

$4.98

41

WASHER (14.5X22X1)

09160-14054

$2.25

42

CIRCLIP, SHIFT SHAFT This part replaces 08331-31146.

08331-3114A

$1.89

43

ARM,GEAR SHIFT LINK | Includes Item(s) 43A This part replaces 25520-38B00.

25520-38B01

$49.48

43A

.COVER, DUST This part replaces 25526-47000.

25526-47001

$4.98

44

ROD

25525-38B00

$17.78

45

NUT

09140-06011

$1.37

46

.NUT

08310-00067

$1.83

47

BOLT

01500-06207

$1.99

48

WASHER (12X20X1.0)

09181-12167

$2.24

49

CIRCLIP

08331-3112A

$1.77

50

BASE ASSY, NEUT SW | MODEL K4/K5/K6

37720-38B00

$80.66

50A

BASE ASSY, NEUT SW | MODEL K7/K8

37720-38BA0

Unavailable

51

O RING (D:2.4,ID:35.5)

09280-35006

$2.80

52

NUT

08313-2005B

Unavailable

53

STUD BOLT

09108-05010

$2.25

54

CONTACT, SWITCH

09209-04021

$11.53

55

SPRING

09440-02003

$2.09
