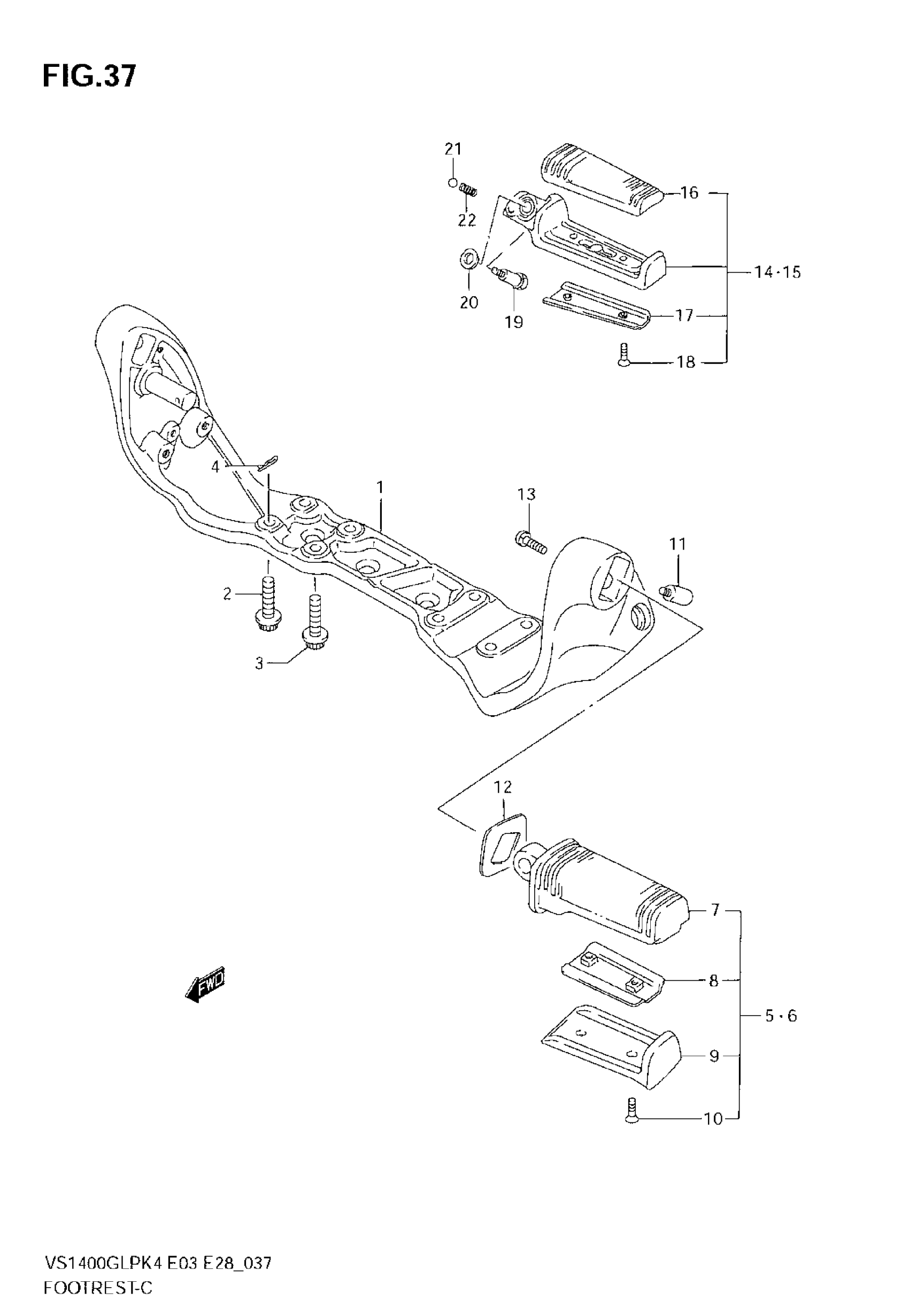

Suzuki VS1400 (2008) FOOTREST Diagram

#

Description
Price

1

BRACKET, FRONT FOOTREST

43510-39B20

Unavailable

2

BOLT, OUTER

09106-08064

$3.00

3

BOLT, INNER

07120-0820B

$2.68

4

PIN

09385-08005

$2.01

5

FOOTREST ASSY, FRONT RH

43501-38B11

$169.60

6

FOOTREST ASSY, FRONT LH | Includes Item(s) 7 - 10

43502-38B11

$141.20

7

RUBBER,FR FOOTR This part replaces 43551-38B00.

43551-38B01

$14.85

8

PLATE, RUBBER

43580-38B10

$14.18

9

COVER, FRONT FOOTREST

43585-38B11

Unavailable

10

SCREW

09127-05018

Unavailable

11

BOLT, RUBBER

09106-06101

$3.10

12

WASHER, FRONT FOOTREST

43546-38B01

$7.07

13

SCREW, RUBBER STOPPER

02112-3512B

$2.90

14

FOOTREST ASSY,P This part replaces 43600-38E00.

43600-38E01

$84.85

15

FOOTREST ASSY,P | Includes Item(s) 16 - 18 This part replaces 43700-38E00.

43700-38E01

$73.83

16

RUBBER,PILLION This part replaces 43612-38A00.

43612-38A10

$9.67

17

PLATE, RUBBER STOPPER

43632-38A00

$8.32

18

SCREW

09127-05017

$3.00

19

BOLT

09111-06050

$5.00

20

SHIM

08221-08164

$2.35

21

BALL

06111-07004

$1.22

22

SPRING

09440-05005

$1.45
