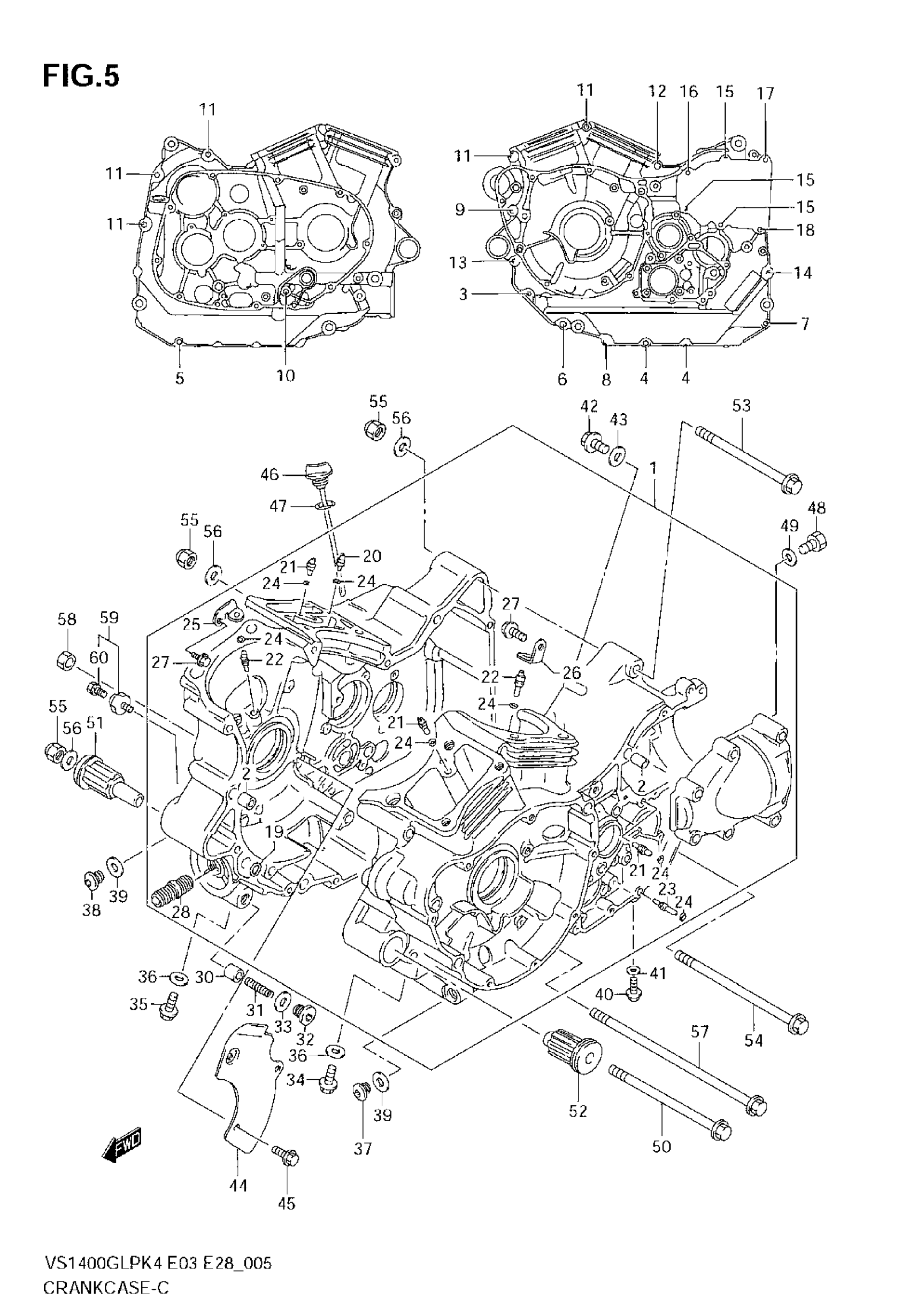

Suzuki VS1400 (2008) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 29

11301-38840

Unavailable

2

PIN

09206-11007

$2.63

3

BOLT

01550-06557

$3.58

4

BOLT

01550-06657

$4.53

5

BOLT

01550-06857

$3.36

6

BOLT

01550-08557

$3.25

7

BOLT

01550-08657

$5.10

8

BOLT

09103-08215

Unavailable

9

BOLT

01550-08907

$5.63

10

BOLT (8X115)

09103-08098

$4.20

11

BOLT (8X95)

09103-08164

$5.17

12

BOLT (8X50)

09103-08214

Unavailable

13

BOLT (8X70)

09103-08215

Unavailable

14

BOLT (8X80)

09103-08216

Unavailable

15

BOLT

01550-08407

$2.63

16

BOLT

01550-08507

$3.25

17

BOLT

01550-08557

$3.25

18

BOLT

01550-08657

$5.10

19

O RING (D:1.9,ID:12.6)

09280-12009

$2.87

20

JET, HEAD COOLING

09493-44002

Unavailable

21

JET, HEAD/SECONDARY

09493-28010

$18.00

22

JET, PISTON COOLING

09493-80009

$22.52

23

JET, MISSION

09493-24011

Unavailable

24

O RING, JET (D:1.2,ID:4.0)

09280-04004

$1.76

25

PLATE, PISTON JET, FRONT

16438-38B00

Unavailable

26

PLATE, PISTON JET, REAR

16439-38B00

Unavailable

27

BOLT (6X12)

09106-06075

$2.50

28

UNION,OIL STAND This part replaces 16591-06B00.

16591-06B01

$6.45

29

BEARING, CRANK THRUST (T:1.925) | SEE ILLUSTRATION ON FIG.7 (B-14)

12228-38B00-0A0

Unavailable

29

BEARING, CRANK THRUST (T:1.950)

12228-38B00-0B0

Unavailable

29

BEARING, CRANK THRUST (T:1.975)

12228-38B00-0C0

Unavailable

29

BEARING, CRANK THRUST (T:2.000)

12228-38B00-0D0

Unavailable

29

BEARING, CRANK THRUST (T:2.025)

12228-38B00-0E0

Unavailable

29

BEARING, CRANK THRUST (T:2.050)

12228-38B00-0F0

Unavailable

29

BEARING, CRANK THRUST (T:2.075)

12228-38B00-0G0

Unavailable

29

BEARING, CRANK THRUST (T:2.100)

12228-38B00-0H0

Unavailable

29

BEARING, CRANK THRUST (T:2.125)

12228-38B00-0I0

Unavailable

29

BEARING, CRANK THRUST (T:2.150)

12228-38B00-0J0

Unavailable

30

PLUNGER, OIL CONTROL

16442-34301

Unavailable

31

SPRING

09440-09030

Unavailable

32

PLUG, CONTROL PLUNGER

09248-16012

$4.19

33

GASKET

09168-16002

$1.89

34

BOLT (8X12)

01550-0812A

$2.31

35

BOLT (8X12)

01550-0812A

$2.31

36

GASKET | MODEL K4

09168-08029

$2.31

36

GASKET (8.2X14X1) | MODEL K5/K6/K7/K8

09168-08016

$1.64

37

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

$2.80

38

PLUG, MAIN GALLERY NO.2 This part replaces 09247-14027.

09247-14044

$4.18

39

GASKET

09168-14002

$2.83

40

PLUG, MISSION GALLERY

01550-0610A

$1.97

41

GASKET (5.8X13X1.2)

09168-06023

$2.01

42

PLUG, MAIN GALLERY END

09247-12006

$2.80

43

GASKET

09168-12002

$1.59

44

PLATE, OIL SEPARATOR

11521-38B01

Unavailable

45

BOLT | MODEL K4 This part replaces 01547-06123.

01547-0612B

$1.22

45

BOLT | MODEL K5/K6/K7/K8

09103-06236

$2.71

46

GAUGE, OIL LEVEL

11970-38B10

$26.03

47

O RING (D:3.1,ID:16.8)

09280-17003

$1.64

48

PLUG, OIL DRAIN

09247-12106

$2.73

49

GASKET

09168-12002

$1.59

50

BOLT (10X155)

09103-10169

Unavailable

51

BUSH,ENGINE MOU This part replaces 11660-38B00.

11660-38B01

$36.82

52

BUSH,ENGINE MOU This part replaces 11660-38A00.

11660-38A01

$32.12

53

BOLT (10X135)

09103-10168

Unavailable

54

BOLT (10X180)

09103-10170

Unavailable

55

NUT

09159-10064

$10.95

56

WASHER

08322-0110B

$2.37

57

BOLT (10X225)

09103-10205

$21.22

58

NUT

09159-10047

$8.62

59

SWITCH ASSY,OIL PRESSURE | Includes Item(s) 60 This part replaces 37820-33D10.

37820-33D11

$27.58

60

BOLT

37822-33D00

$4.92
