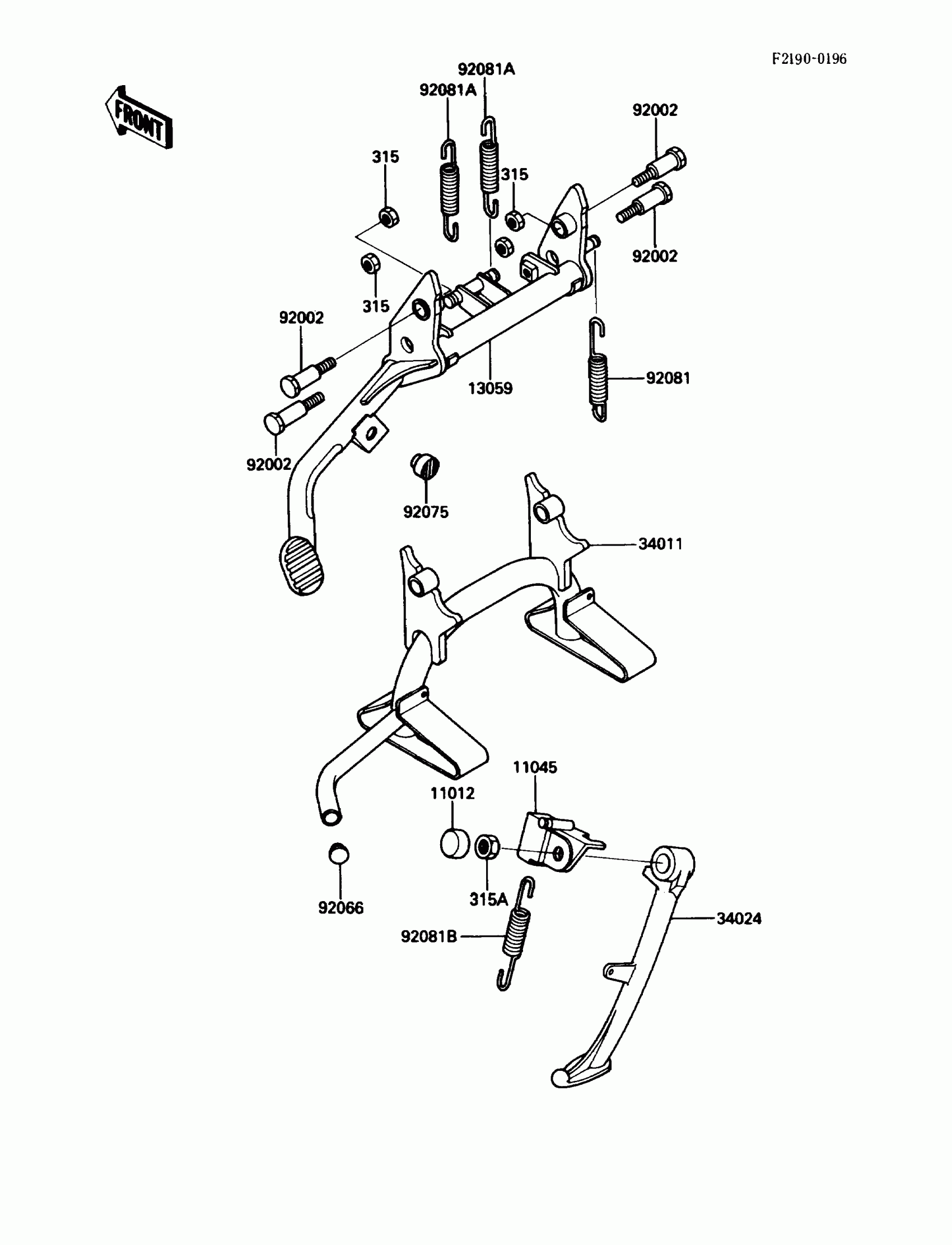

Kawasaki Voyager XII Stand Diagram

Description

Price

315

NUT-HEX-FINE,10MM,BLACK

315C1000

Unavailable

315A

NUT-HEX-FINE

315C1200

Unavailable

11012

CAP,NUT

11012-1508

$7.90

11045

BRACKET,SIDE STAND SWITCH

11044-1660

$34.33

13059

LEVER-KICK,CENTER STAND

13059-1118

$187.75

34011

STAND-CENTER

34011-1127

$178.04

34024

STAND-SIDE

34024-1202

$139.57

92002

BOLT,CENTER STAND

92002-1679

$14.00

92066

PLUG

92066-1184

$3.81

92075

DAMPER

92075-015

$3.81

92081

SPRING,STAND

34025-008

$7.44

92081A

SPRING,STAND

92081-1586

Unavailable

92081B

SPRING,SIDE STAND

92081-1727

$10.19
