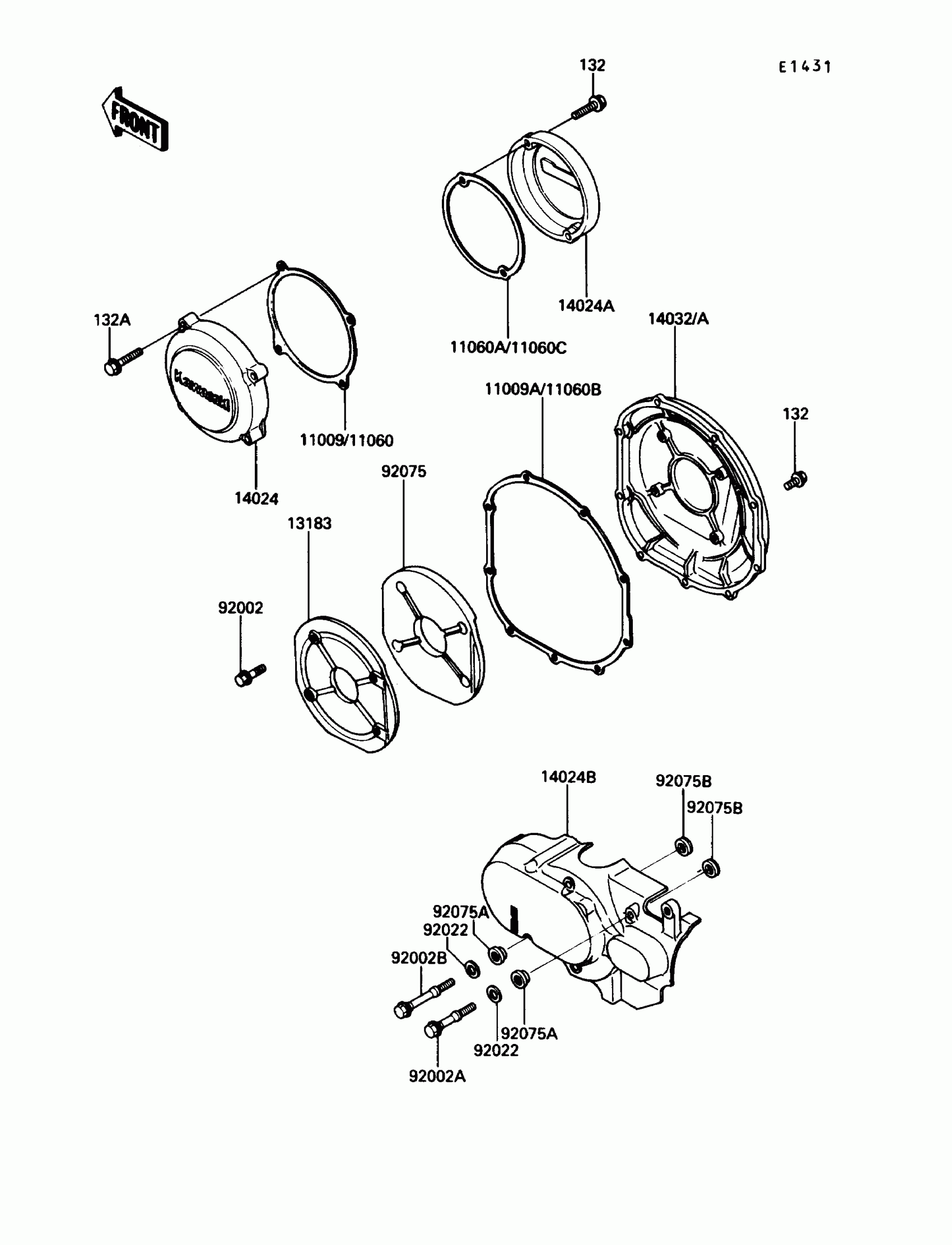

Kawasaki Voyager XII Engine Cover Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X25

132E0625

Unavailable

132A

BOLT-FLANGED-SMALL,6X30

132E0630

$5.42

11060A

GASKET,PULSING COIL COVER

11060-1098

$8.73

13183

PLATE,SOUND ARRSETER DAMPER

13169-1986

Unavailable

14024

COVER,LH

14024-1153

$146.08

14024A

COVER,PULSING COIL

14024-1154

$121.71

14024B

COVER,FRONT BEVEL

14024-1236

Unavailable

14032A

COVER-CLUTCH

14032-1301

$169.23

92002

BOLT,6X10

92002-1449

$3.68

92002A

BOLT

92002-1814

$9.49

92002B

BOLT

92002-1815

$14.00

92022

WASHER

92022-1823

$7.27

92075

DAMPER,SOUND ARRESTER

92075-1789

$75.95

92075A

DAMPER

92075-1855

$7.93

92075B

DAMPER

92075-1856

$7.60

11060

GASKET,COVER,LH

11060-1097

$10.54

11060B

GASKET,CLUTCH COVER

11060-1099

Unavailable
