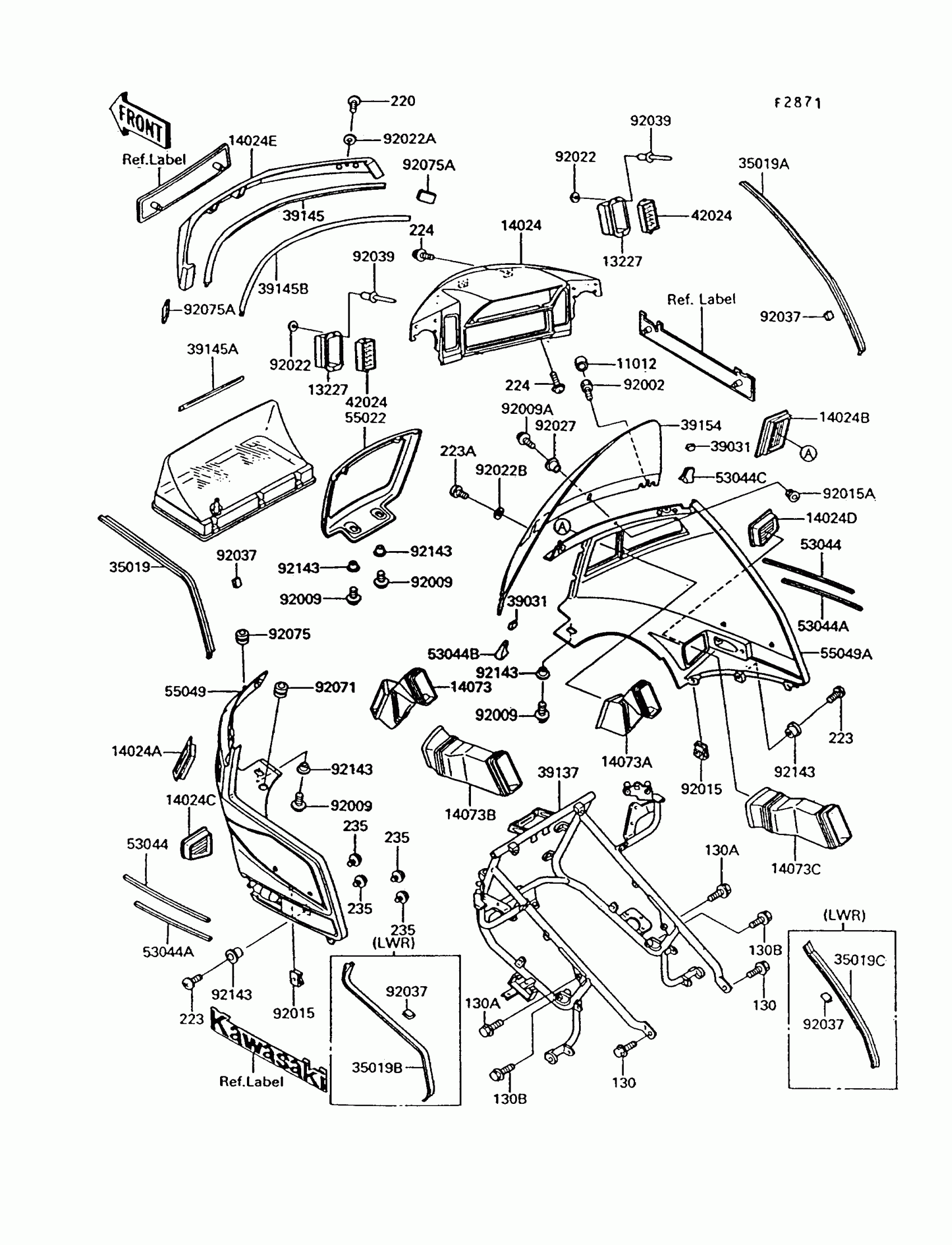

Kawasaki Voyager XII Cowling(ZG1200-B6/B7) Diagram

#

Description
Price

11012

CAP

11012-1550

$7.93

13227

HOUSING,SHUTTER

13227-1012

$14.00

14024

COVER,METER

14024-1186

$445.53

14024A

COVER,LOUVER,UPP,LH

14024-1192

$90.33

14024B

COVER,LOUVER,UPP,RH

14024-1193

$82.31

14024C

COVER,LOUVER,LWR,LH

14024-1194

$57.69

14024D

COVER,LOUVER,LWR,RH

14024-1195

$52.50

14024E

COVER,WINDSHIELD

14024-1280

Unavailable

14073

DUCT,COWLING,UPP,LH

14073-1245

$51.81

14073A

DUCT,COWLING,UPP,RH

14073-1246

$51.81

14073B

DUCT,COWLING,LWR,LH

14073-1247

$56.44

14073C

DUCT,COWLING,LWR,RH

14073-1248

$70.03

35019

FLAP,UPP,LH,EBONY

35019-1201-H8

Unavailable

35019A

FLAP,UPP,RH,EBONY

35019-1202-H8

$112.68

35019B

FLAP,LWR,LH,EBONY

35019-1203-H8

Unavailable

35019C

FLAP,LWR,RH,EBONY

35019-1204-H8

Unavailable

39031

CAP-END,TRIM

39031-1058

$4.85

39137

STAY-COMP,COWLING

39137-1057

$517.06

39145

TRIM-SEAL,WINDSHIELD COVER

39145-1072

$45.89

39145A

TRIM-SEAL,METER COVER

39145-1081

$5.71

39145B

TRIM-SEAL,METER COVER

39145-1082

$36.67

39154

WINDSHIELD

39154-1101

$589.98

42024

SHUTTER,LOUVER

42024-1002

$24.37

53044

TRIM,COWLING SIDE,UPP

53044-1150

$18.34

53044A

TRIM,COWLING SIDE,LWR

53044-1151

$18.34

53044B

TRIM,WINDSHIELD,LH

53044-1181

$30.09

53044C

TRIM,WINDSHIELD,RH

53044-1182

$30.09

55022

COVER-HEAD LAMP,EBONY

55022-1054-H8

Unavailable

55049

COWLING.,UPP,LH,EBONY/GRN/BLK

55049-5100-TM

Unavailable

55049A

COWLING.,UPP,RH,EBONY/GRN/BLK

55049-5101-TM

Unavailable

92002

BOLT,6X25

92002-1830

$12.15

92009

SCREW,6X18,BLACK

92009-1181

$2.29

130

BOLT-FLANGED

130D0812

Unavailable

130A

BOLT-FLANGED,8X35

130D0835

Unavailable

130B

BOLT-FLANGED,8X50

130D0850

Unavailable

220

SCREW PAN HEAD 5X10

220B0510

Unavailable

223

SCREW-PAN-WS-CROS

223C0616

Unavailable

223A

SCREW-PAN-WS-CROS,6X25

223C0625

Unavailable

224

SCREW-PAN-WP-CROS

224C0510

Unavailable

235

SCREW-PAN-WP-CROS

235B0408

Unavailable

92009A

SCREW,5X14

92009-1427

$4.15

92015

NUT,5MM,COWLING

92015-1343

$3.65

92015A

NUT,5MM

92015-1710

$4.93

92022

WASHER,3.3X8X0.5

92022-1516

$2.00

92022A

WASHER,5.3X10X0.8

92022-1653

$3.51

92022B

WASHER,6.5MM

92022-1808

$4.15

92027

COLLAR

92027-194

$4.37

92037

CLAMP,FLAP

92037-1943

$5.71

92039

RIVET

92039-1041

$2.92

92071

GROMMET,AIR FILTER

92071-1042

$5.78

92075

DAMPER

92075-1629

$3.97

92075A

DAMPER

92075-1883

$4.81

92143

COLLAR,L=6.5

92143-1025

$4.93
