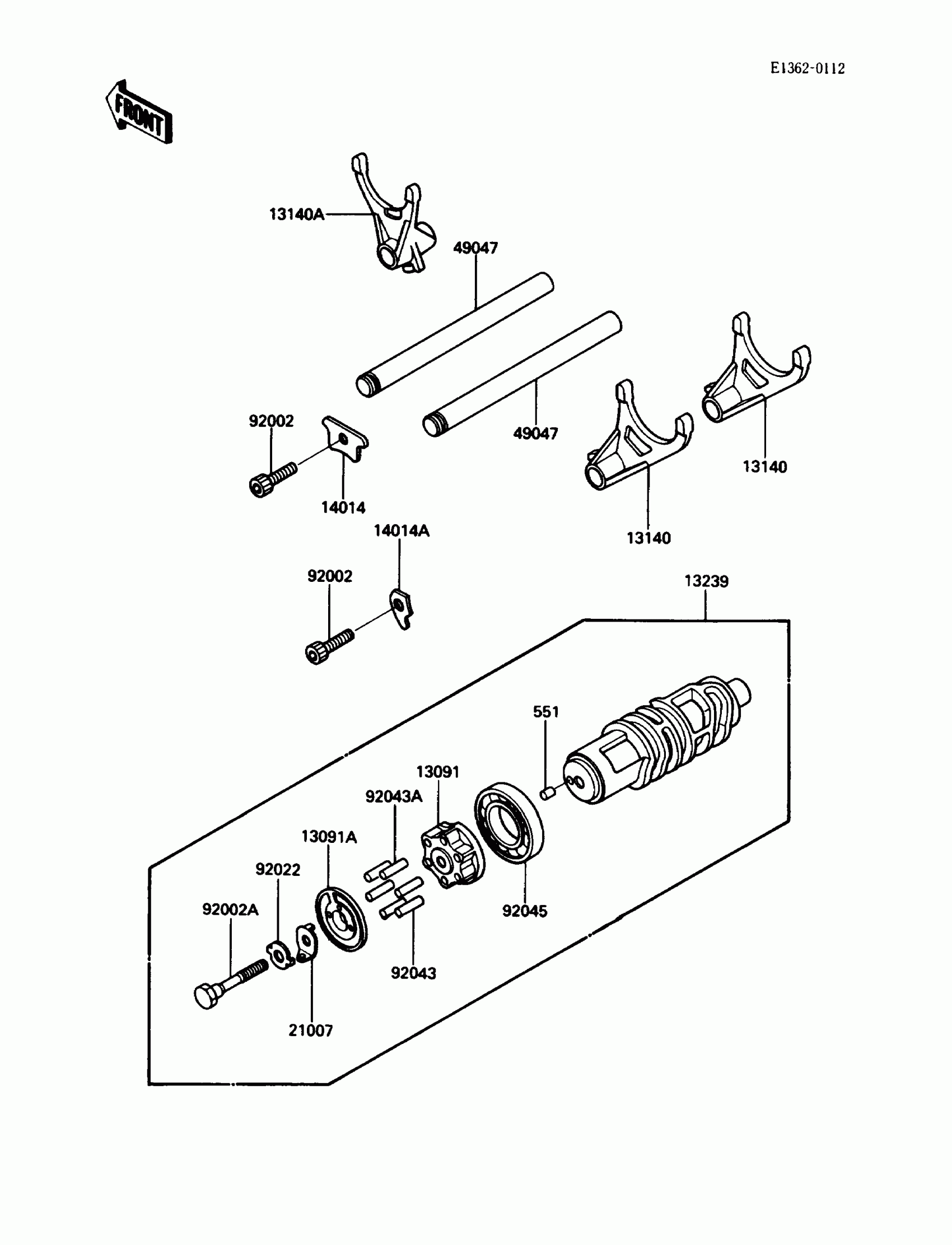

Kawasaki Voyager XII Change Drum/Shift Fork Diagram

Description

Price

551

PIN-DOWEL,4X8

551A0408

$0.80

13091

HOLDER

13091-1409

$54.69

13091A

HOLDER,CHANGE DRUM PIN

13091-1442

$22.58

13140

FORK-SHIFT

13140-1146

$112.13

13140A

FORK-SHIFT

13140-1147

$112.13

13239

DRUM-ASSY-CHANGE

13239-1129

$304.50

14014

PLATE-POSITION

14014-1073

$7.95

14014A

PLATE-POSITION

14014-1074

$5.14

21007

ROTOR,TOP SWITCH

21007-1192

$8.29

49047

ROD-SHIFT

49047-1055

$34.85

92002

BOLT,SOCKET,6X14

92002-1592

$3.85

92002A

BOLT,6X45

92002-1873

$10.88

92022

WASHER

92022-1824

$5.22

92043

PIN,DOWEL,4X15.8

92042-014

$0.49

92043A

PIN,DOWEL,4X17.8

92042-020

Unavailable

92045

BEARING-BALL,16005

92045-1045

$28.80
