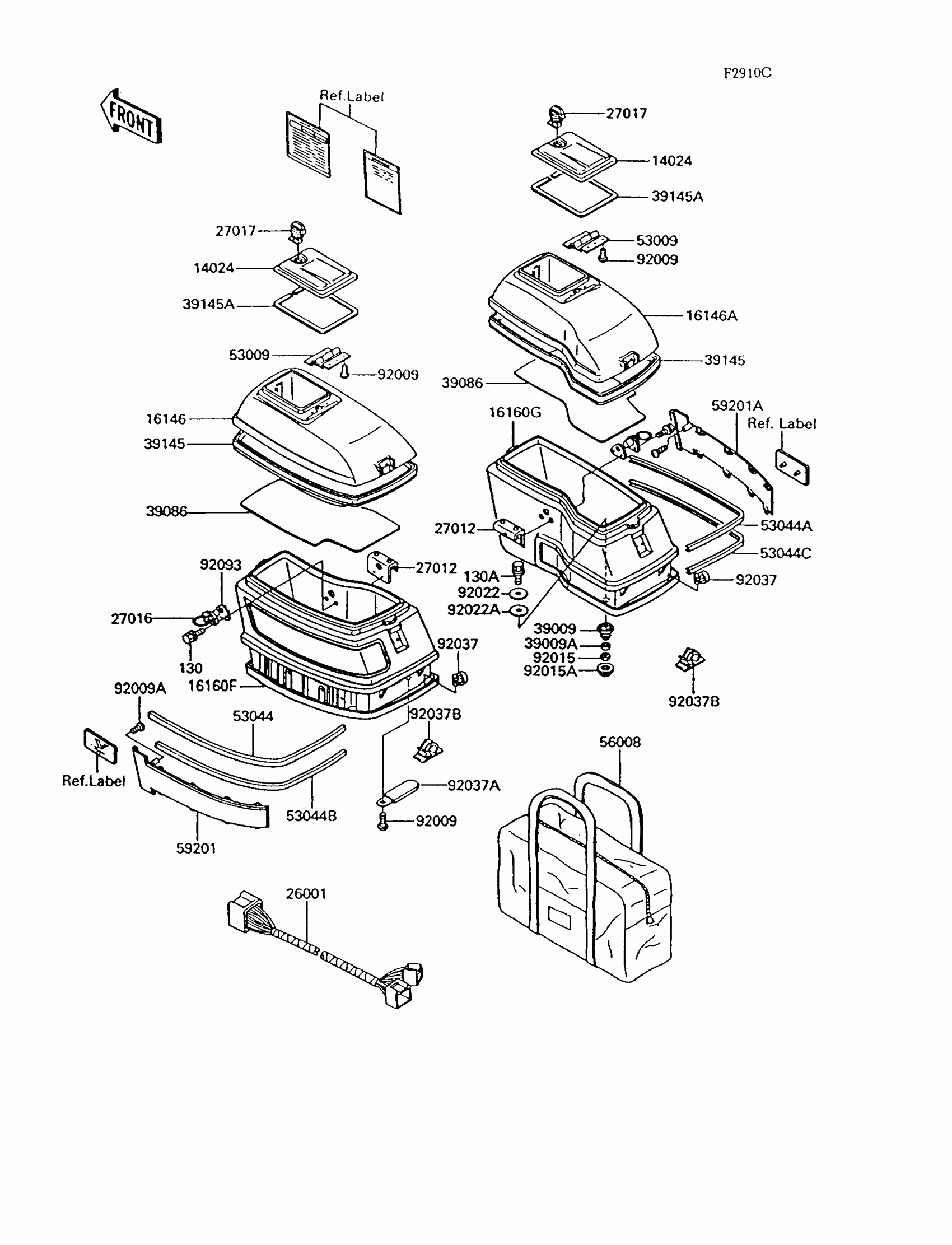

Kawasaki Voyager XII Accessory(Side Bag)(ZG1200-B6/B7) Diagram

#

Description
Price

14024

COVER,SIDE BAG

14024-1178

$38.07

16146

COVER-ASSY,SIDE BAG,LH,EBONY

16146-1063-H8

$544.46

16146A

COVER-ASSY,SIDE BAG,RH,EBONY

16146-1064-H8

$544.46

16160F

BODY,SIDE BAG,LH,EBONY/GREEN

16160-5020-TL

$1,548.65

16160G

BODY,SIDE BAG,RH,EBONY/GREEN

16160-5021-TL

$1,548.65

26001

HARNESS,SIDE BAG

26001-1757

$20.22

27012

HOOK,SIDE BAG

27012-1339

$34.33

27016

LOCK-ASSY,BAG

27016-1054

$87.94

27017

LOCK,BAG

27017-1126

Unavailable

39009

BLOCK-MOUNT,BAG

39009-1051

$19.68

39009A

BLOCK-MOUNT,BAG

39009-1052

$5.15

39086

PAD-STORAGE,BAG

39086-1052

$22.54

39145

TRIM-SEAL,SIDE BAG

39145-1068

$45.88

39145A

TRIM-SEAL,SIDE BAG

39145-1071

$9.05

53009

HINGE,SIDE BAG

53009-1062

$35.75

53044

TRIM,SIDE BAG,UPP,LH

53044-1143

$48.82

53044A

TRIM,SIDE BAG,UPP,RH

53044-1144

$48.82

53044B

TRIM,SIDE BAG,LWR,LH

53044-1145

$53.61

53044C

TRIM,SIDE BAG,LWR,RH

53044-1146

$44.55

56008

BAG

56008-1055

$164.83

59201

BUMPER,LH

59201-1051

$38.19

59201A

BUMPER,RH

59201-1052

$38.26

92009

SCREW,TAPPING,4X10

92009-1040

$3.25

92009A

SCREW,TAPPING,4X14

92009-1429

$3.51

92015

NUT,LOCK,6MM,BLACK

92015-1191

Unavailable

92015A

NUT,BLOCK MOUNT,24MM

92015-1628

$7.56

92022

WASHER,7X28X1.6,BLACK

92022-1392

$2.15

92022A

WASHER,5X28X1

92022-1813

$4.24

92037

CLAMP,SPEED,L=43

92037-1290

$7.25

92037A

CLAMP,HARNESS

92037-1726

$5.22

92037B

CLAMP,HARNESS

92037-1793

$8.03

92093

SEAL,LOCK

92093-1209

$5.27

130

BOLT-FLANGED,6X16

130C0616

Unavailable

130A

BOLT-FLANGED

130C0630

Unavailable
