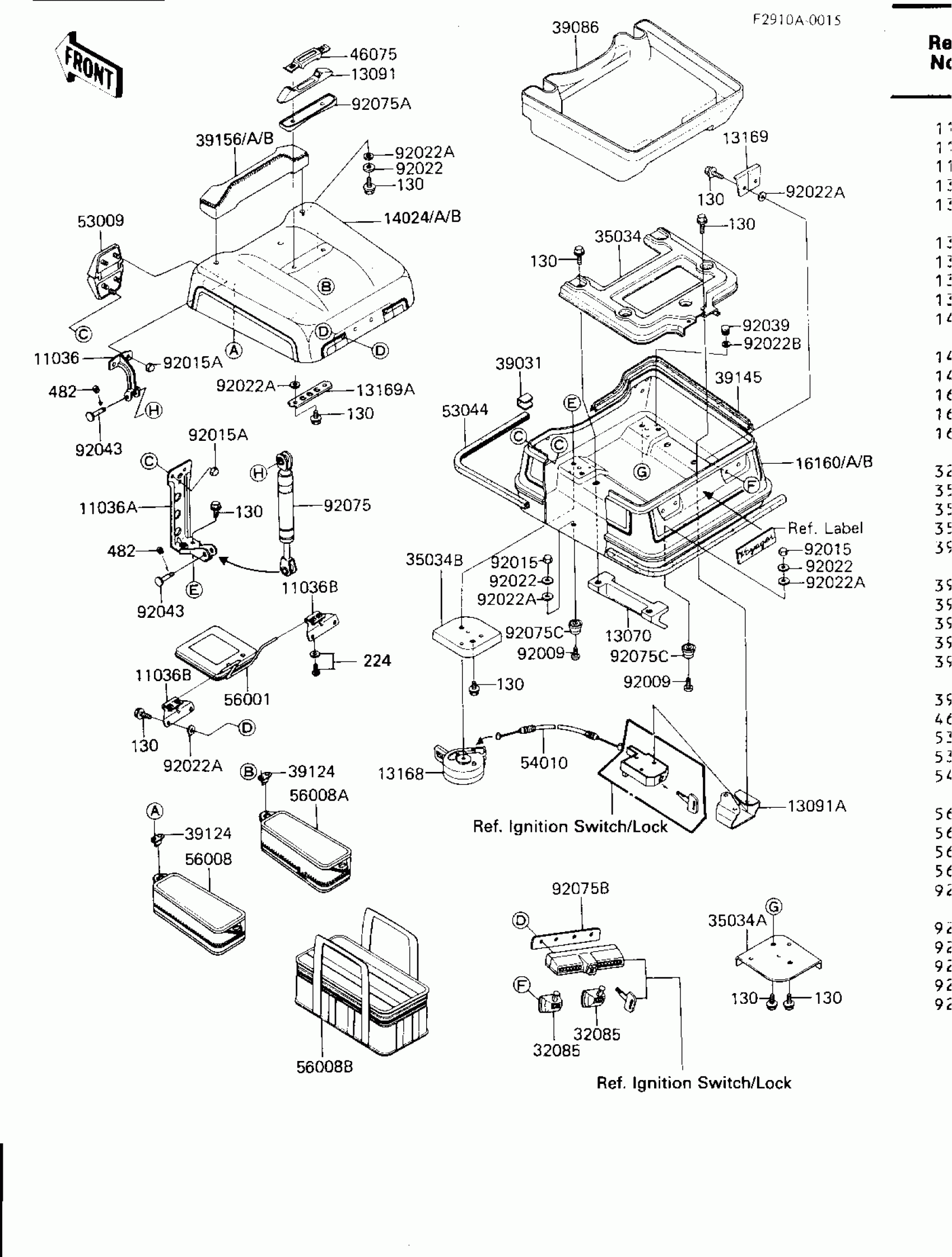

Kawasaki Voyager TRUNK Diagram

#

Description
Price

11036

BRACKET-A,TRUNK DAMPER,UPP

11036-1866

Unavailable

11036A

BRACKET-A,TRUNK DAMPER,LWR

11036-1867

Unavailable

11036B

BRACKET-A,TRUNK COVER

11036-1893

Unavailable

13070

GUIDE,TRUNK

13070-1079

Unavailable

13091

HOLDER,TRUNK GRIP

13091-1179

Unavailable

13091A

HOLDER,TRUNK LOCK

13091-1256

Unavailable

13168

LEVER,TRUNK LOCK

13168-1141

Unavailable

13169

PLATE,TRUNK STOPPER

13169-1590

Unavailable

13169A

PLATE,TRUNK

13169-1591

Unavailable

14024A

COVER,TRUNK.EBONY

14025-5186-H8

Unavailable

14024B

COVER,TRUNK,L.V.RED

14025-5240-P5

Unavailable

16160B

BODY,TRUNK,L.V.RED

16160-5013-P5

$1,012.00

32085

STOPPER,TRUNK LOCK

32085-1125

$24.92

35034

REINFORCE,TRUNK BOTTOM

35034-1089

$41.61

35034A

REINFORCE,TRUNK DAMPER,RH

35034-1154

$5.68

35034B

REINFORCE,TRUNK DAMPER,LH

35034-1156

$5.68

39031

CAP-END,TRUNK TRIM

39031-1053

Unavailable

39086

PAD-STORAGE,TRUNK

39086-1001

$179.26

39124

SNAP,TRUNK BAG

39124-1001

$2.20

39145

TRIM-SEAL,TRUNK

39145-1002

$47.17

39156B

PAD,BLACK

39156-1060

$159.10

46075

GRIP,TRUNK

46075-1034

$65.51

53009

HINGE,TRUNK

53009-1035

$73.82

53044

TRIM,TRUNK SIDE

53044-1041

Unavailable

54010

CABLE,TRUNK LOCK

54010-1007

$47.39

56001

MIRROR-ASSY

56001-1137

$146.99

56008

BAG,LH

56008-1021

$111.64

56008A

BAG,RH

56008-1022

$111.64

56008B

BAG,CRT,INNER

56008-1024

$249.85

92009

SCREW,6X28

92009-1066

$2.54

92015

NUT,LOCK 6MM

92015-1262

$4.85

92015A

NUT,LOCK,FLANGE CAP,5MM

92015-1263

$4.93

92022

WASHER,7X28X1.6,BLACK

92022-1392

$1.85

92022A

WASHER,RUBBER

92022-1477

$4.41

92022B

WASHER,3.5X10X1.0

92022-1483

$2.41

92039

RIVET

92039-1041

$2.76

92043

PIN

92043-1142

$10.08

92075

DAMPER,GASS

92075-1449

$138.78

92075A

DAMPER,TRUNK GRIP

92075-1451

$4.59

92075B

DAMPER,TRUNK LOCK

92075-1479

$23.03

92075C

DAMPER,TRUNK & SIDEBAG

92075-1510

$16.61

130

BOLT-FLANGED,6X16

130C0616

Unavailable

224

SCREW-PAN-WP-CROS,5X14

224C0514

Unavailable

482

CIRCLIP-TYPE-E,4MM

482L4000

Unavailable
