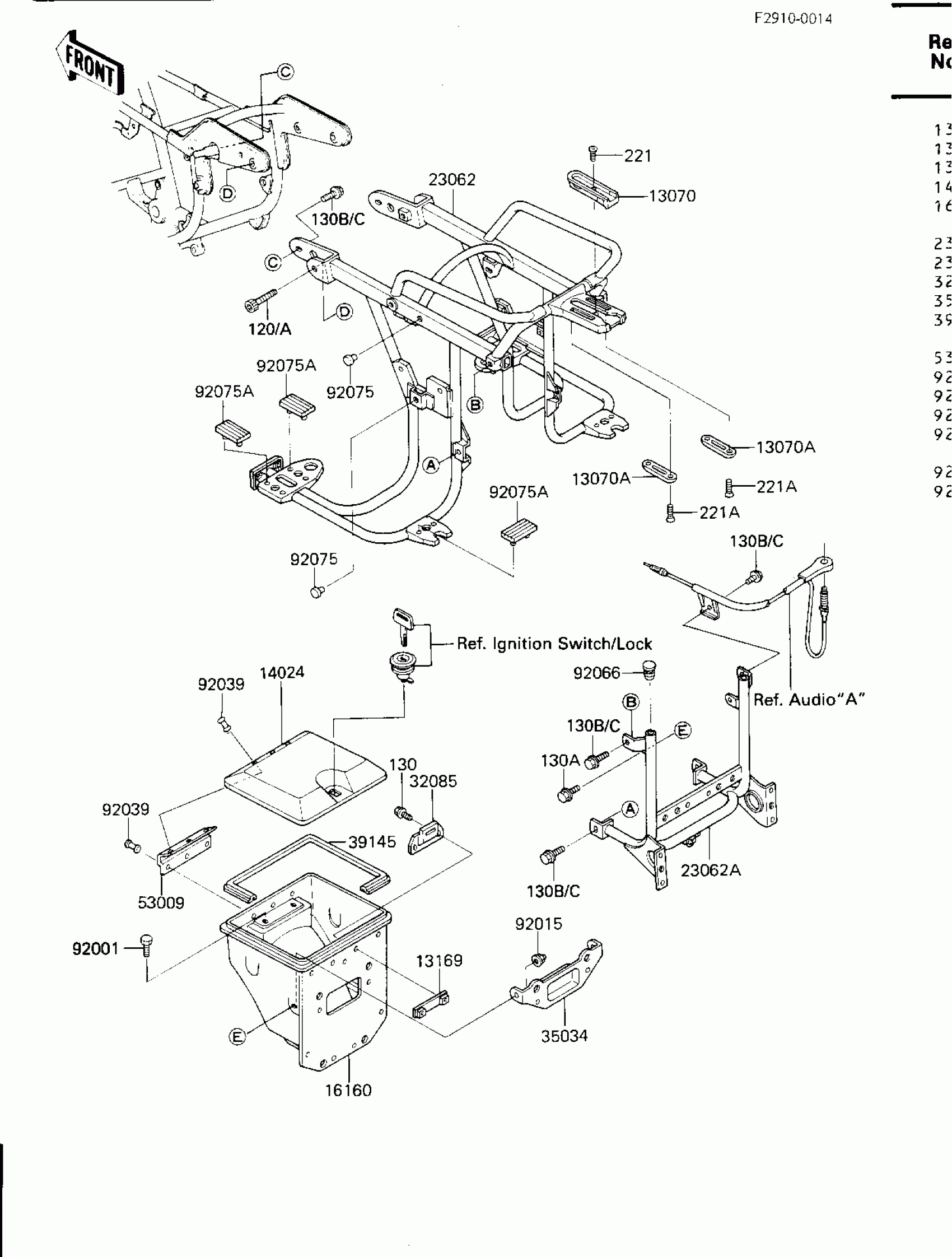

Kawasaki Voyager STORAGE CASE/SADDLEBAG BRACKET Diagram

Description

Price

13070

GUIDE,TRUNK LOCK

13070-1083

Unavailable

13070A

GUIDE,TRUNK LOCK

13070-1104

Unavailable

13169

PLATE,STORAGE CASE

13169-1611

Unavailable

14024

COVER,STORAGE CASE

14025-1673

Unavailable

16160

BODY,STORAGE CASE

16160-1012

$189.55

23062

BRACKET-COMP,SIDEBAG

23062-1052

$392.20

23062A

BRACKET-COMP,TAIL LAMP

23062-1053

$94.31

32085

STOPPER,STORAGE CASE CAP

32085-1127

$5.68

35034

REINFORCE,REAR FENDER

35034-1106

$19.34

39145

TRIM-SEAL,STORAGE CASE

39145-1008

$12.10

53009

HINGE,STORAGE CASE

53009-1038

Unavailable

92001

BOLT,6X20

92001-1826

$3.53

92015

NUT,CAP,6MM,BLACK

92015-1170

$0.69

92039

RIVET,BLIND

92039-1040

$2.41

92066

PLUG

92066-1093

$4.58

92075

DAMPER RUBB MAIN STND

92075-005

$3.85

92075A

DAMPER

92075-1489

$8.71

120A

BOLT-SOCKET,8X55

120S0855

Unavailable

130

BOLT-FLANGED,5X12

130C0512

Unavailable

130A

BOLT-FLANGED,6X12

130C0612

Unavailable

130C

BOLT-FLANGED,8X16

130J0816

Unavailable

221

SCREW-CSK-CROS,5X8

221C0508

Unavailable

221A

SCREW-CSK-CROS

221C0512

Unavailable
