1987 Yamaha V-MAX (VMX540L) Exahaust Diagram

← All diagrams

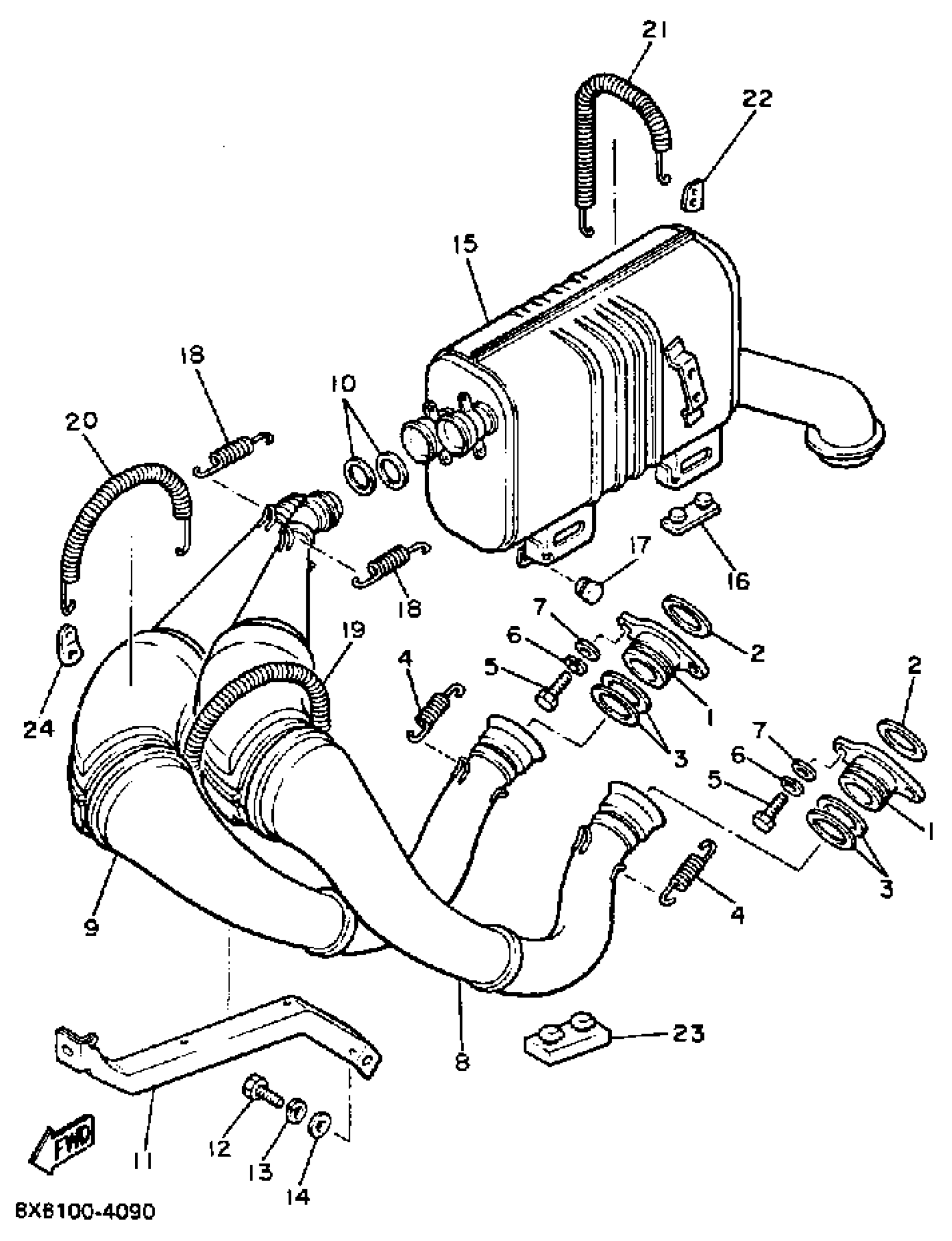

Find the part on the Exahaust diagram for your 1987 Yamaha V-MAX (VMX540L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Yamaha V-MAX (VMX540L) Exahaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NUT, RING

8U9-14612-00-00

1
Out of stock

2

GASKET, EXHAUST PIPE

89A-14613-00-00

1

$13.42

In stock

3

RING

888-14633-00-00

1

$6.46

In stock

4

SPRING, TENSION

90506-20306-00

1
Out of stock

5

BOLT, HEXAGON

97017-08025-00

1

$7.46

In stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

7

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

8

EXHAUST PIPE ASSEMBLY L

8U9-14610-00-00

1
Out of stock

9

EXHAUST PIPE ASSEMBLY R

8U9-14620-00-00

1
Out of stock

10

RING

8F2-14633-00-00

1
Out of stock

11

STAY, MUFFLER 1

8M6-14771-00-00

1
Out of stock

12

BOLT, HEXAGON

97017-08016-00

1
Out of stock

13

WASHER(6TA)

92907-08700-00

—
Out of stock

14

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

15

2ND SILENCER, MUFFMUFFLER

8U9-14640-00-00

1
Out of stock

16

PROTECTOR, MUFFLER 2

8A5-14728-02-00

1
Out of stock

17

GROMMET (8M6)

90480-11298-00

—
Out of stock

18

SPRING, TENSION (8M6)

90506-20093-00

—

$7.06

In stock

19

SPRING, TENSION

90506-16335-00

1
Out of stock

20

SPRING, TENSION

90506-16198-00

1
Out of stock

21

SPRING, TENSION

90506-16210-00

1
Out of stock

22

STOPPER

8M6-14768-00-00

1
Out of stock

23

PROTECTER, MUFF 2

8R9-14728-00-00

1
Out of stock

24

STOPPER

8U9-14768-00-00

1
Out of stock
