1985 Yamaha V-MAX (VMX540J) Crankcase Diagram

← All diagrams

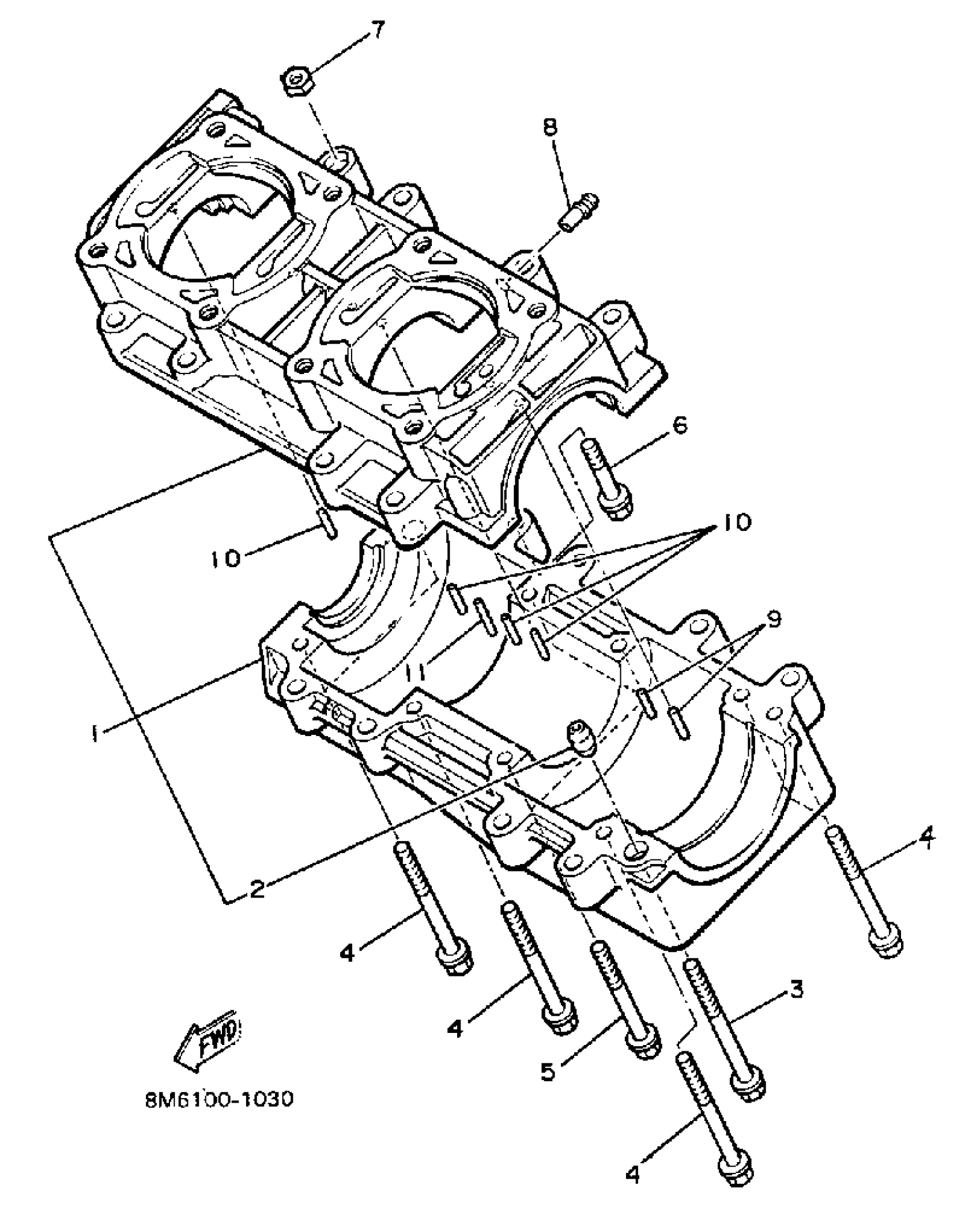

Find the part on the Crankcase diagram for your 1985 Yamaha V-MAX (VMX540J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Yamaha V-MAX (VMX540J) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSEMBLY

8U9-15100-00-00

1
Out of stock

2

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

2

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

3

BOLT, FLANGE(8BT)

95817-08095-00

1
Out of stock

4

BOLT, FLANGE(8BN)

95817-08085-00

1
Out of stock

5

BOLT, FLANGE

95817-08075-00

1

$3.37

In stock

6

BOLT, FLANGE

95814-08045-00

1

$3.95

In stock

7

NUT(6L2)

95333-08600-00

1

$3.20

In stock

8

JOINT, BREATHER

J38-11116-00-00

1

$2.77

In stock

9

PIN, DOWEL (8H1)

93604-07141-00

1

$1.35

In stock

10

PIN (2H7)

93603-10049-00

—
Out of stock

11

PIN, DOWEL (5X4)

93603-14179-00

—
Out of stock
Crankshaft - Piston →
