1984 Yamaha V-MAX (VMX540H) Steering Gate Diagram

← All diagrams

Find the part on the Steering Gate diagram for your 1984 Yamaha V-MAX (VMX540H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

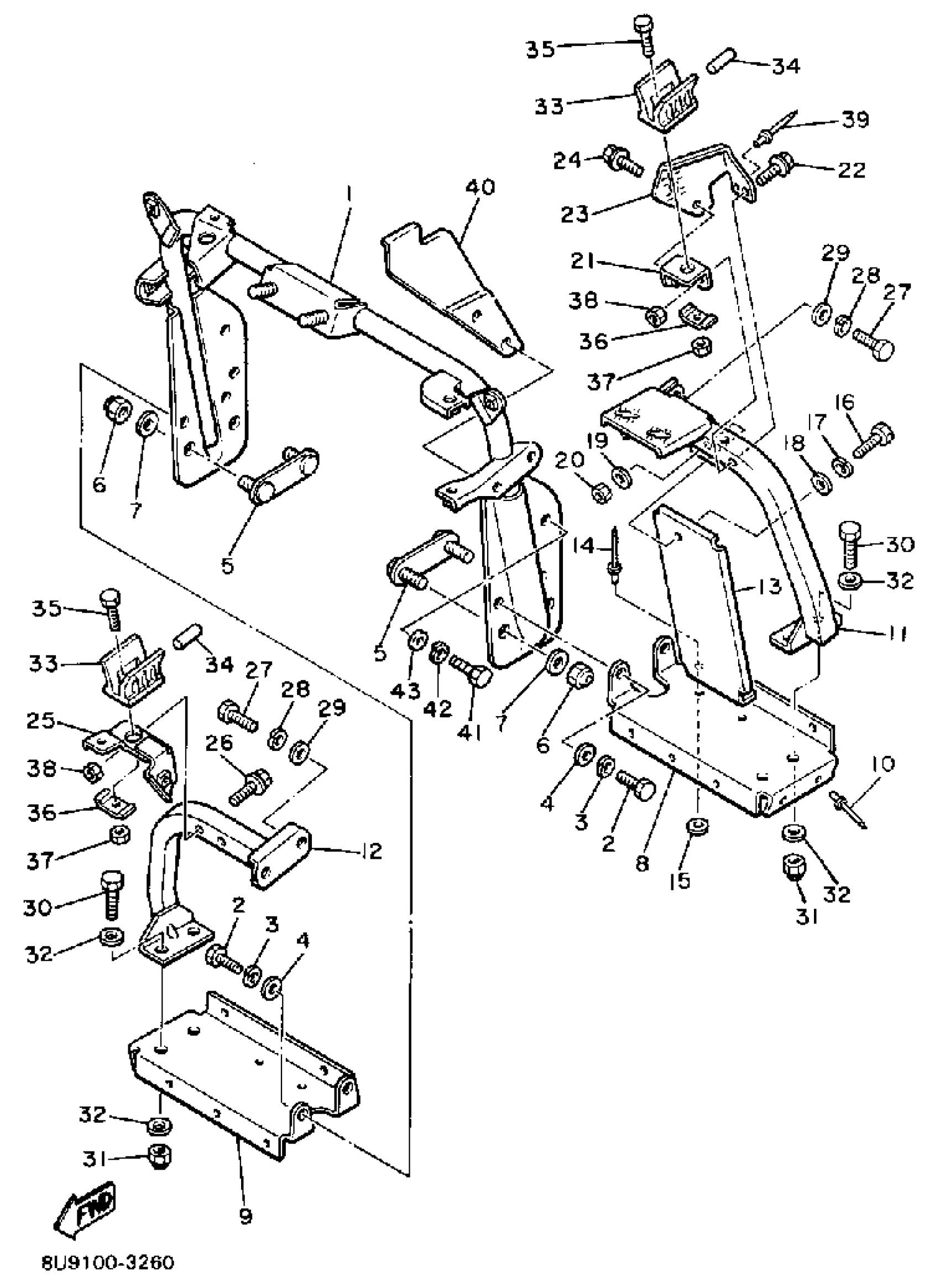

1984 Yamaha V-MAX (VMX540H) Steering Gate Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEERING GATE

8M6-23870-00-00

1
Out of stock

2

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

3

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

4

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

5

BRACKET 10

(8K4-23878-00-00)

1
Out of stock

6

NUT, NYLON

95717-08300-00

1

$2.57

In stock

7

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

8

BRACKET 3

8M6-23883-00-00

1
Out of stock

9

BRACKET 4

8M6-23884-00-00

1
Out of stock

10

RIVET, BLIND (8H4)

90267-48053-00

1

$2.31

In stock

11

BRACKET 5

8X6-23885-00-00

1
Out of stock

12

BRACKET 6

8M6-23886-00-00

1
Out of stock

13

BRACKET 1

8M6-23881-00-00

1
Out of stock

14

RIVET, BLIND (8K2)

90267-48079-00

1
Out of stock

15

WASHER, PLATE

90201-04027-00

1
Out of stock

16

BOLT(3DM)

97024-06020-00

—

$6.17

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

19

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

20

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

21

BRACKET 7

8M6-23887-00-00

1
Out of stock

22

BOLT, FLANGE

95817-06030-00

—

$3.91

In stock

23

BRACKET 8 (8M6-23888-00)

8M6-23888-01-00

1
Out of stock

24

BOLT, FLANGE

95812-06010-00

—

$2.75

In stock

25

BRACKET 9

8M6-23889-01-00

1
Out of stock

26

BOLT, FLANGE

95817-06030-00

—

$3.91

In stock

27

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

28

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

29

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

30

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

32

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

33

CLAMP 3

878-77137-01-00

1
Out of stock

34

STOPPER

878-77188-00-00

1
Out of stock

35

BOLT,HEXAGON

97017-06008-00

—
Out of stock

36

STAY 1

8M6-77125-00-00

1
Out of stock

37

NUT, SELF-LOCKING

95617-06100-00

—

$2.32

In stock

38

NUT, SELF-LOCKING

95617-06100-00

—

$2.32

In stock

39

RIVET, BLIND (8K2)

90267-48079-00

1
Out of stock

40

BRACKET 13

(8U9-23898-00-00)

1
Out of stock

41

NUT, NYLON

95707-06300-00

—

$3.20

In stock

41

BOLT (661)

97013-06012-00

—

$4.71

In stock

42

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

43

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock
