1983 Yamaha VMX540G Bumper Diagram

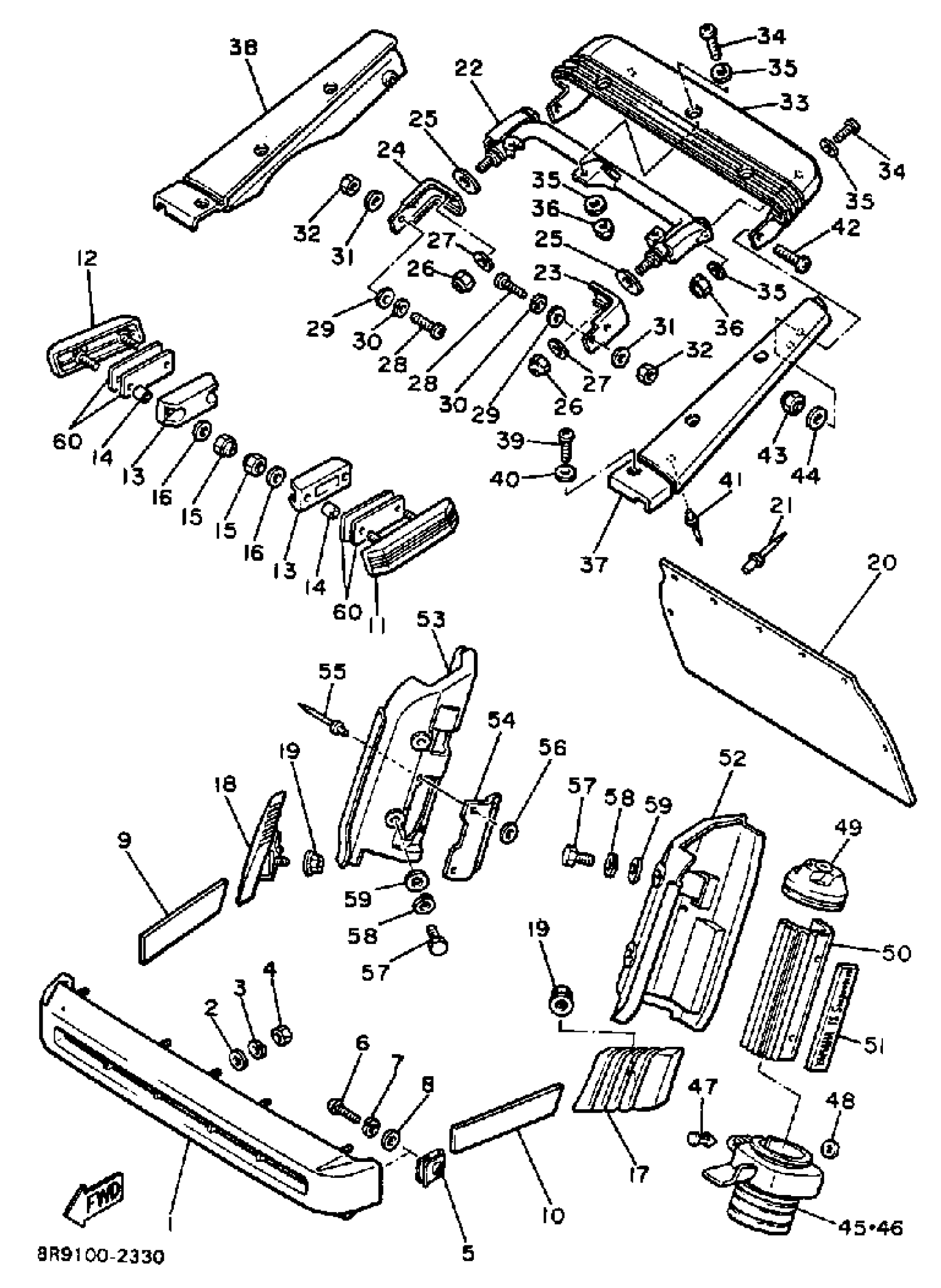

Find the part on the Bumper diagram for your 1983 Yamaha VMX540G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRONT BUMPER
8M6-77510-00-00
3
YBS67-5 WASHER, SPRING
92990-05100-00
7
YBS67-5 WASHER, SPRING
92990-05100-00
8
WASHER, PLAIN (646)
92990-05600-00
9
BUMPER, FRONT 2
8M6-77512-00-00
10
BUMPER, FRONT 1
8M6-77511-00-00
11
BUMPER, FRONT 3
8M6-77513-00-00
12
BUMPER, FRONT 4
8M6-77514-00-00
13
SPACER, BUMPER
8M6-77529-00-00
17
END, BUMPER
8M6-77523-00-00
18
END, BUMPER
8M6-77524-00-00
20
FLAP
8V9-77595-00-00
22
BUMPER, REAR 1
8M6-77541-00-00
23
WASHER 1
8M6-77525-01-00
24
WASHER 2
8M6-77526-01-00
33
BUMPER, REAR 2
8M6-77542-00-00
37
BUMPER, REAR 3
8M6-77543-00-00
38
BUMPER, REAR 4
8M6-77544-00-00
39
SCREW, BINDING
98907-05012-00
45
PROTECTOR 1 (8M6-77551-00)
8M6-77551-01-00
46
PROTECTOR 2
8M6-77552-00-00
47
RIVET (8M6)
90269-04025-00
49
PROTECTOR 3
8M6-77553-00-00
50
PROTECTOR 4
8M6-77554-00-00
51
EMBLEM 14
8M6-77369-00-00
52
PROTECTOR 6
8R9-77556-00-00
53
PROTECTOR 7
8M6-77557-00-00
54
STAY 1
8M6-77535-00-00
56
WASHER, PLATE (8M6)
90201-047A2-00
60
PATCH 7
8M6-21967-00-00
