1983 Yamaha VMX540G Brake Diagram

← All diagrams

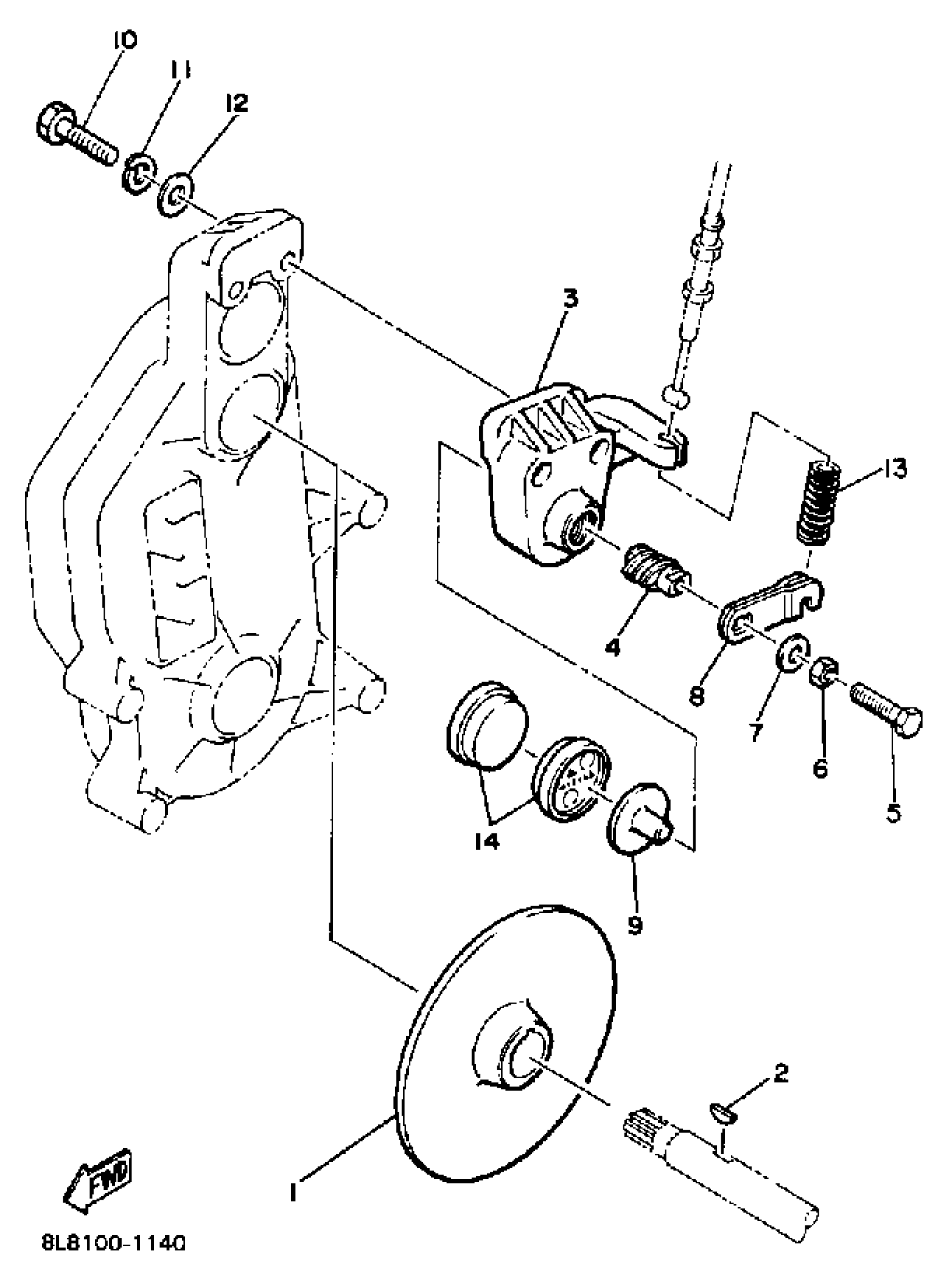

Find the part on the Brake diagram for your 1983 Yamaha VMX540G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Yamaha VMX540G Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DISC,BRAKE

8L8-25831-01-00

1
Out of stock

2

KEY

8J7-25848-00-00

1

$4.77

In stock

3

BODY, CALIPER 1

8K4-25731-00-00

1
Out of stock

4

CAM

878-25728-00-00

1
Out of stock

5

BOLT (8K4)

90101-08499-00

—

$21.95

In stock

6

. NUT

95380-08700-00

1

$3.07

In stock

7

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

8

LEVER, BRAKE

878-25726-00-00

1
Out of stock

9

PLATE, BACK UP

878-25733-00-00

1
Out of stock

10

BOLT, HEXAGON

97013-10055-00

—

$5.55

In stock

11

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

12

WASHER, PLATE

92990-10600-00

1

$2.61

In stock

13

SPRING, COMPRESSION

90501-23337-00

1
Out of stock

14

PAD, CALIPER 2

89J-25811-00-00

1

$23.38

In stock
