Description

Price

1

TAILLIGHT UNIT ASSY

2S3-84710-00-00

Unavailable

2

LICENCE LIGHT UNIT ASSY

2S3-84745-00-00

$145.23

3

BULB

4SV-84347-00-00

$5.99

4

BOLT,HEX. SOCKET BUTTON

90111-05026-00

$6.34

5

COLLAR

90387-05044-00

$11.71

6

GROMMET

90480-14017-00

$4.14

7

NUT, SPRING

90183-050A6-00

$2.21

8

REAR REFLECTOR ASSY

3Y6-85130-02-00

$21.21

9

NUT, U FLANGE

95604-05200-00

Unavailable

10

REFLECTOR, REAR 1

449-85131-02-00

$24.04

11

WASHER, PLATE

90201-05040-00

$0.58

12

NUT, CROWN

90176-05001-00

$5.24

13

BRACKET

2S3-84703-00-00

$35.17

14

WASHER, PLATE 8221447500

90201-06057-00

$3.52

15

NUT, SELF-LOCKING

95617-06100-00

$2.17

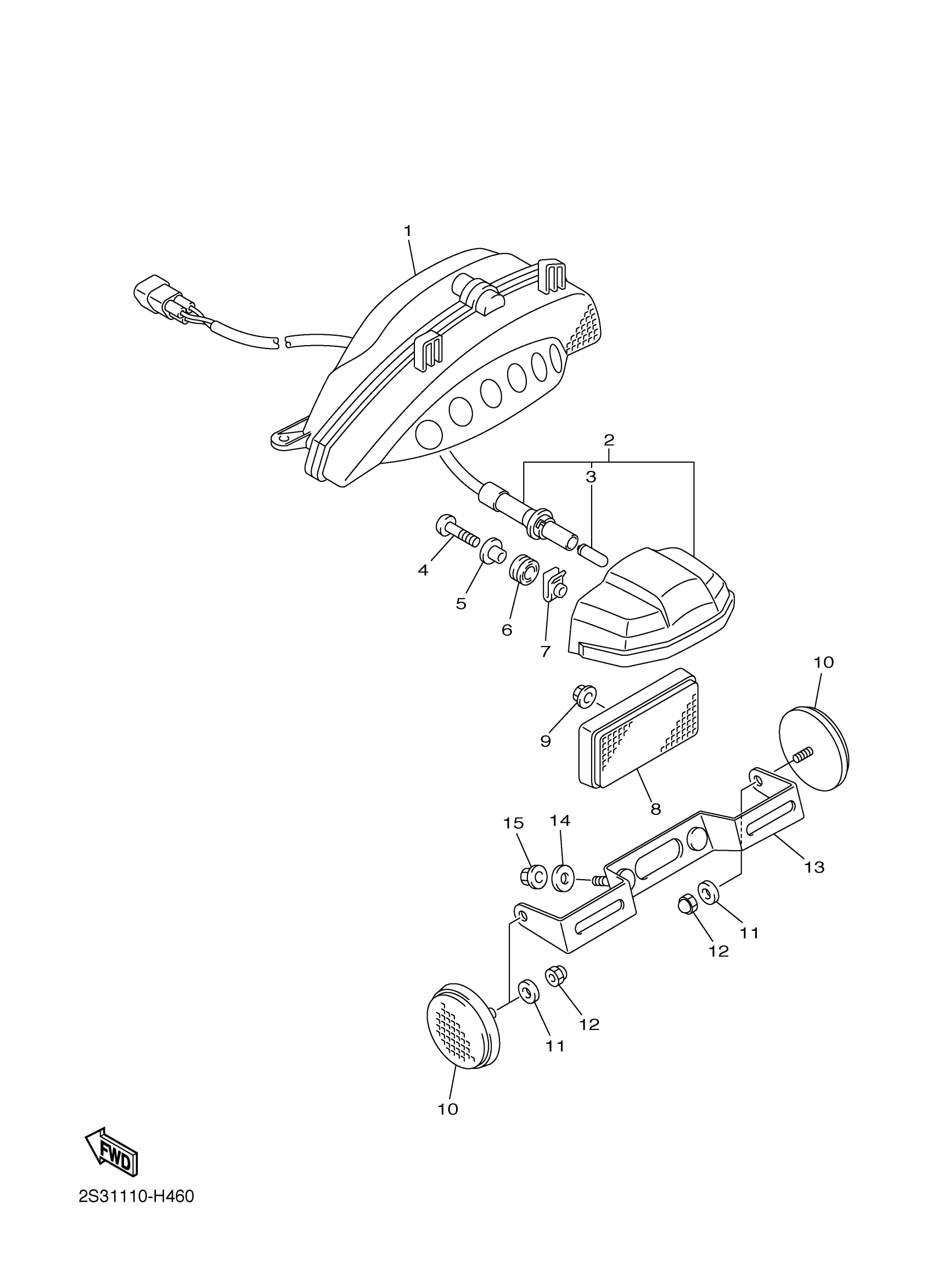

Yamaha VMX17ZR (V-MAX) 2S38 2010 TAILLIGHT Diagram
