2018 Yamaha V-MAX (VMX17JGY) Shift CAM Fork Diagram

← All diagrams

Find the part on the Shift CAM Fork diagram for your 2018 Yamaha V-MAX (VMX17JGY), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

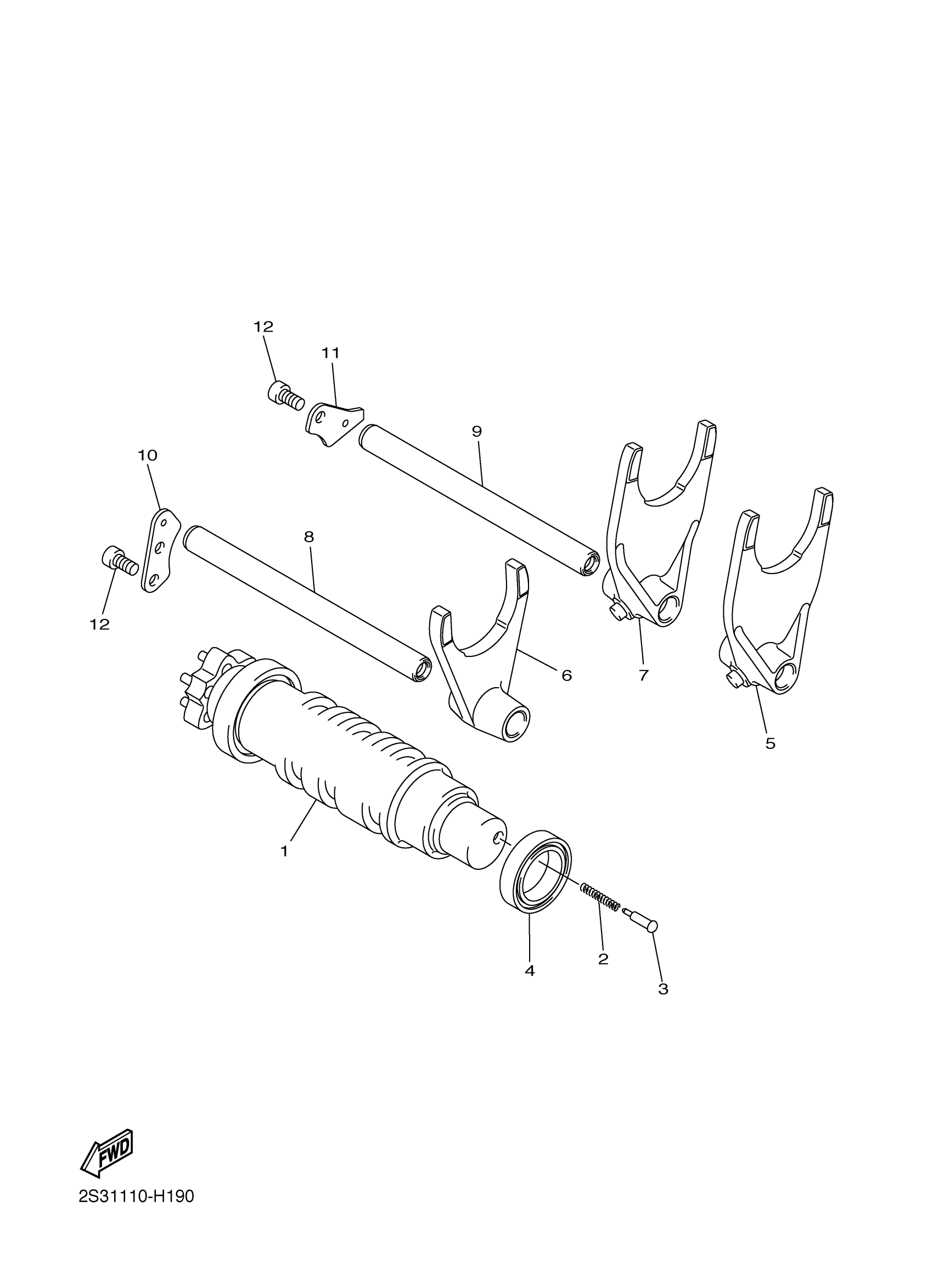

2018 Yamaha V-MAX (VMX17JGY) Shift CAM Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSY

2S3-18540-00-00

—

$169.34

In stock

2

1

$6.17

In stock

3

POINT, NEUTRAL

3D7-18542-00-00

1

$6.02

In stock

4

BEARING

93306-80501-00

1

$34.40

In stock

5

FORK, SHIFT 1

2S3-18511-00-00

1

$100.31

In stock

6

FORK, SHIFT 2

2S3-18512-00-00

—

$85.35

In stock

7

FORK, SHIFT 3

2S3-18513-00-00

—

$94.15

In stock

8

BAR, SHIFT FORK GUIDE 1

2S3-18531-00-00

1

$26.58

In stock

9

BAR, SHIFT FORK GUIDE 2

2S3-18535-00-00

1

$26.58

In stock

10

STOPPER, SHIFT BAR

2S3-18536-00-00

—

$4.29

In stock

11

PLATE, STOPPER 2

2S3-18562-00-00

—

$4.35

In stock

12

BOLT,SOCKET

91317-06012-00

1

$6.17

In stock
