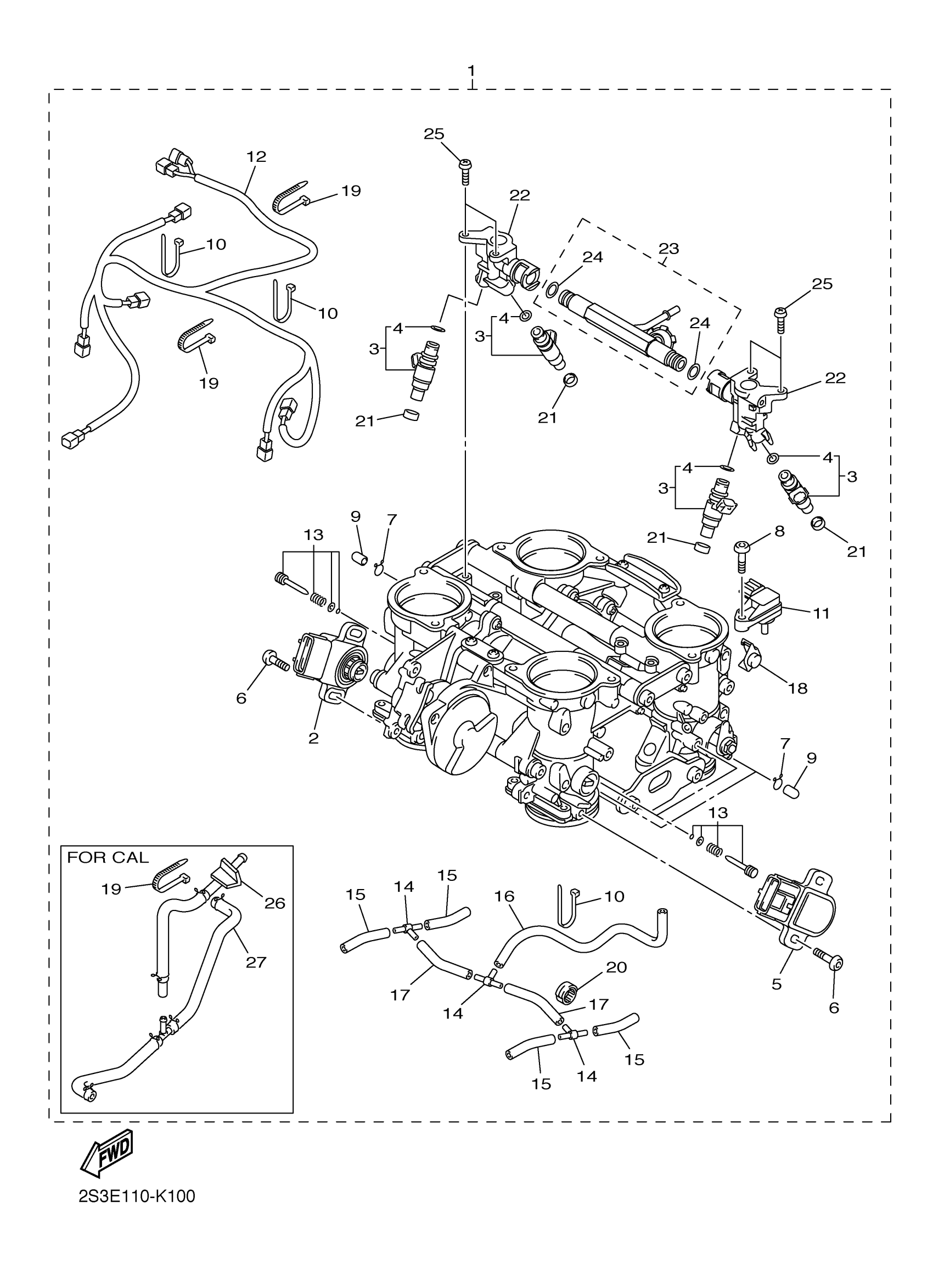

Find the part on the Intake 2 diagram for your 2018 Yamaha V-MAX (VMX17JGY), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Yamaha V-MAX (VMX17JGY) Intake 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

THROTTLE BODY ASSY

2S3-13750-10-00

—
Out of stock

2

ACCELERATOR SENSOR ASSY.

13S-85884-01-00

1
Out of stock

3

INJECTOR

2S3-13761-00-00

—

$166.49

In stock

4

O-RING

5PS-14147-00-00

1

$10.95

In stock

5

THROTTLE SENSOR AS

2S3-85885-01-00

—

$161.43

In stock

6

SCREW

8CC-14216-10-00

1

$7.12

In stock

7

CLIP, PIPE

8A7-14139-00-00

1

$6.80

In stock

8

SCREW

2C0-14216-00-00

1

$3.03

In stock

9

CAP

895-14169-00-00

1

$4.02

In stock

10

CLIP

4KM-14137-00-00

1

$5.26

In stock

11

SENSOR, PRESSURE

1WS-82380-00-00

1
Out of stock

12

WIRE, SUB LEAD

2S3-82509-00-00

—

$125.74

In stock

13

PILOT SCREW SET

2C0-14105-00-00

1

$30.55

In stock

14

. PIPE, JOINT 1

68V-24376-00-00

1

$15.04

In stock

15

PIPE 1

5FL-14348-10-00

1

$4.00

In stock

16

HOSE, VACUUM SENSING 1

2S3-13542-00-00

—

$28.18

In stock

17

HOSE, VACUUM SENSING 2

2S3-13544-00-00

—

$12.51

In stock

18

CAP

2S3-13947-00-00

—

$19.74

In stock

19

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

20

CLAMP

90464-13227-00

—

$6.92

In stock

21

GASKET, MANIFOLD

8FP-13556-00-00

—

$12.27

In stock

22

PIPE, INL.

2S3-1393A-00-00

—

$417.02

In stock

23

JOINT, THROTTLE BODY 1

2S3-13795-00-00

—

$263.31

In stock

24

O-RING

39P-14147-00-00

—

$5.88

In stock

25

SCREW, PAN

98517-05012-00

—

$3.91

In stock

26

HOSE

2S3-1410E-10-00

—

$126.68

In stock

27

HOSE

2S3-1410E-00-00

—

$49.26

In stock
