2017 Yamaha V-MAX (VMX17HR) Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 2017 Yamaha V-MAX (VMX17HR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

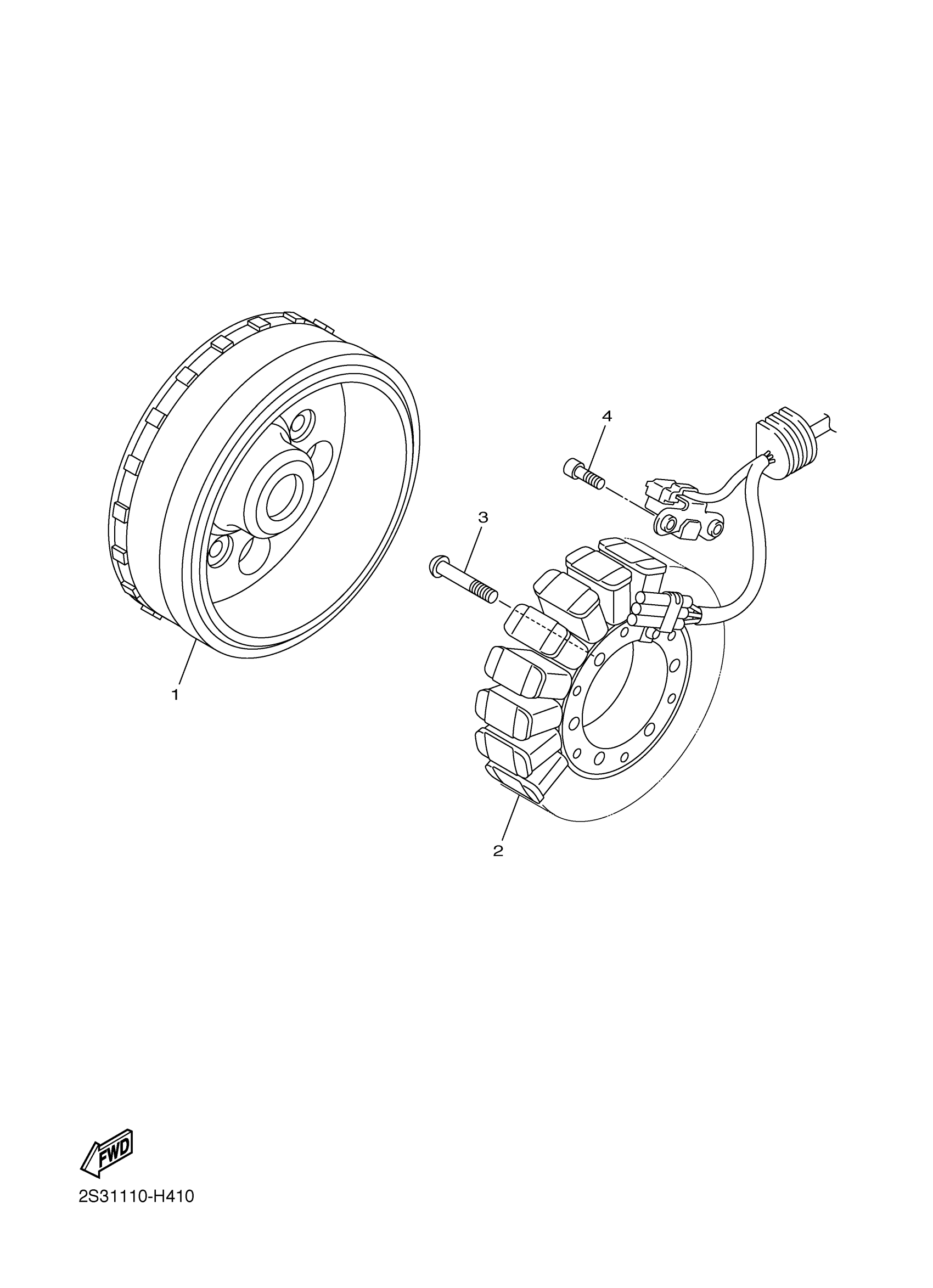

2017 Yamaha V-MAX (VMX17HR) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROTOR ASSY

2S3-81450-00-00

—

$643.99

In stock

2

STATOR ASSY

2S3-81410-00-00

—

$525.99

In stock

3

SCREW

90149-06122-00

1

$5.24

In stock

4

BOLT

91312-05014-00

1

$2.74

In stock
