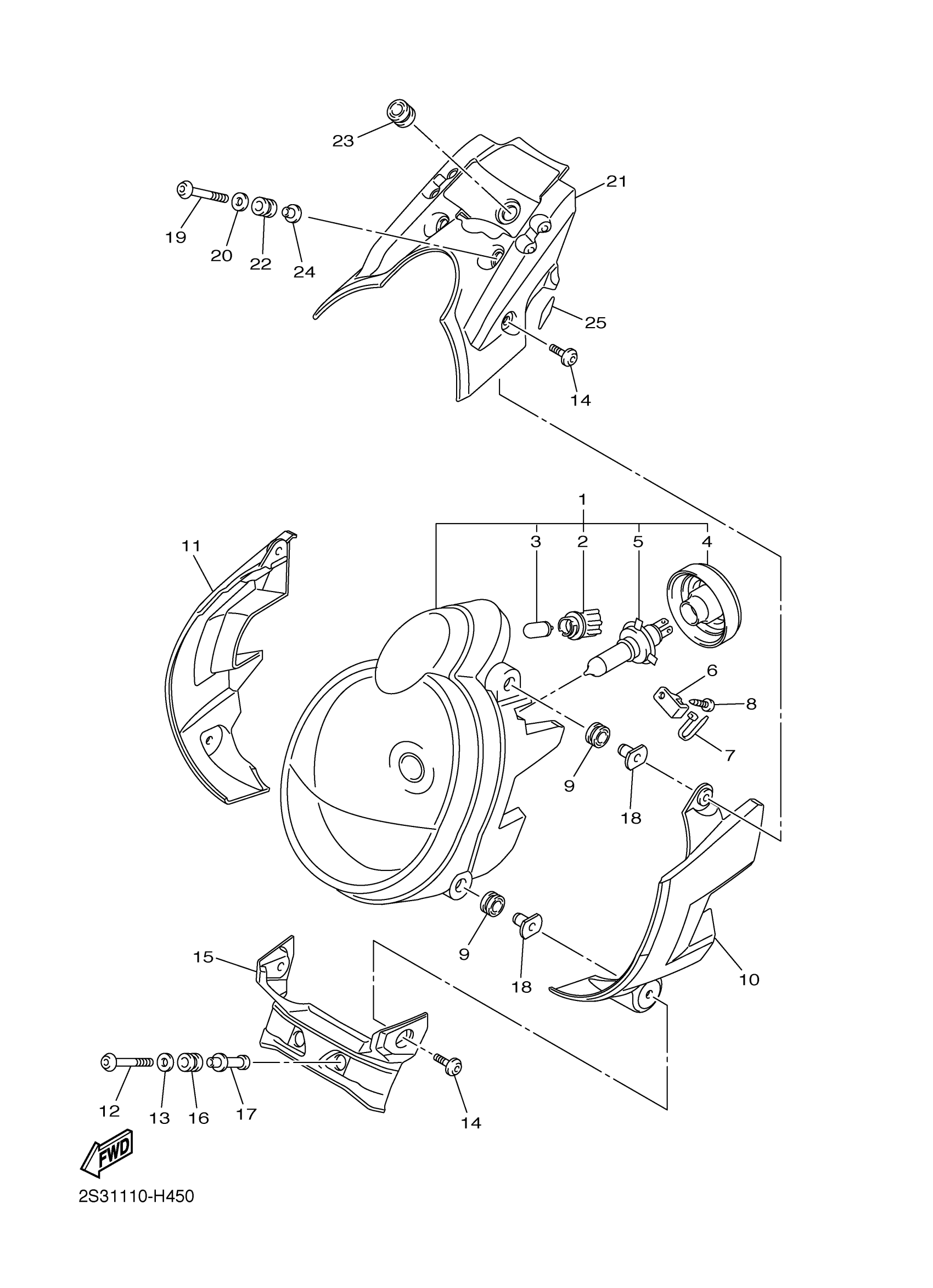

Find the part on the Headlight diagram for your 2015 Yamaha V-MAX (VMX17FR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Yamaha V-MAX (VMX17FR) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT ASSY

2S3-84300-00-00

—

$524.99

In stock

2

SOCKET, PILOT LIGHT

5JW-84346-00-00

—

$13.57

In stock

3

BULB

4SV-84347-00-00

1

$6.43

In stock

4

COVER, SOCKET

5JW-84397-00-00

—

$25.31

In stock

5

BULB, HEADLIGHT

8V0-84314-10-00

1
Out of stock

6

PLATE, GUIDE

2S3-8413G-00-00

1

$3.49

In stock

7

CLAMP

90464-66001-00

1
Out of stock

8

SCREW, PAN HEAD TAPPING (AK5)

97780-50116-00

1
Out of stock

9

DAMPER

4XV-83513-00-00

1

$6.42

In stock

10

COVER, UPPER 1

2S3-23121-00-00

—

$160.02

In stock

11

COVER, UPPER 2

2S3-23131-00-00

—

$160.02

In stock

12

BOLT,HEX. SOCKET BUTTON

90111-06106-00

1

$3.57

In stock

13

WASHER, PLATE

90201-06049-00

1

$3.36

In stock

14

SCREW(4DN)

90149-06302-00

—

$4.29

In stock

15

STAY, HEADLIGHT

2S3-23174-00-00

—

$189.32

In stock

16

GROMMET

90480-13026-00

—

$3.08

In stock

17

COLLAR

90387-06234-00

—

$11.48

In stock

18

NUT

90179-06061-00

—

$14.38

In stock

19

BOLT,HEX. SOCKET BUTTON

90111-06107-00

—

$3.37

In stock

20

WASHER, PLATE

90201-06049-00

1

$3.36

In stock

21

COVER, CROWN

2S3-23437-00-00

—

$182.51

In stock

22

GROMMET

90480-13026-00

—

$3.08

In stock

23

DAMPER

4XV-83513-00-00

1

$6.42

In stock

24

COLLAR

90387-06233-00

—

$5.20

In stock

25

COVER, DUST SEAL 1

2S3-23383-00-00

—

$4.42

In stock
