2015 Yamaha V-MAX (VMX17FR) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2015 Yamaha V-MAX (VMX17FR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

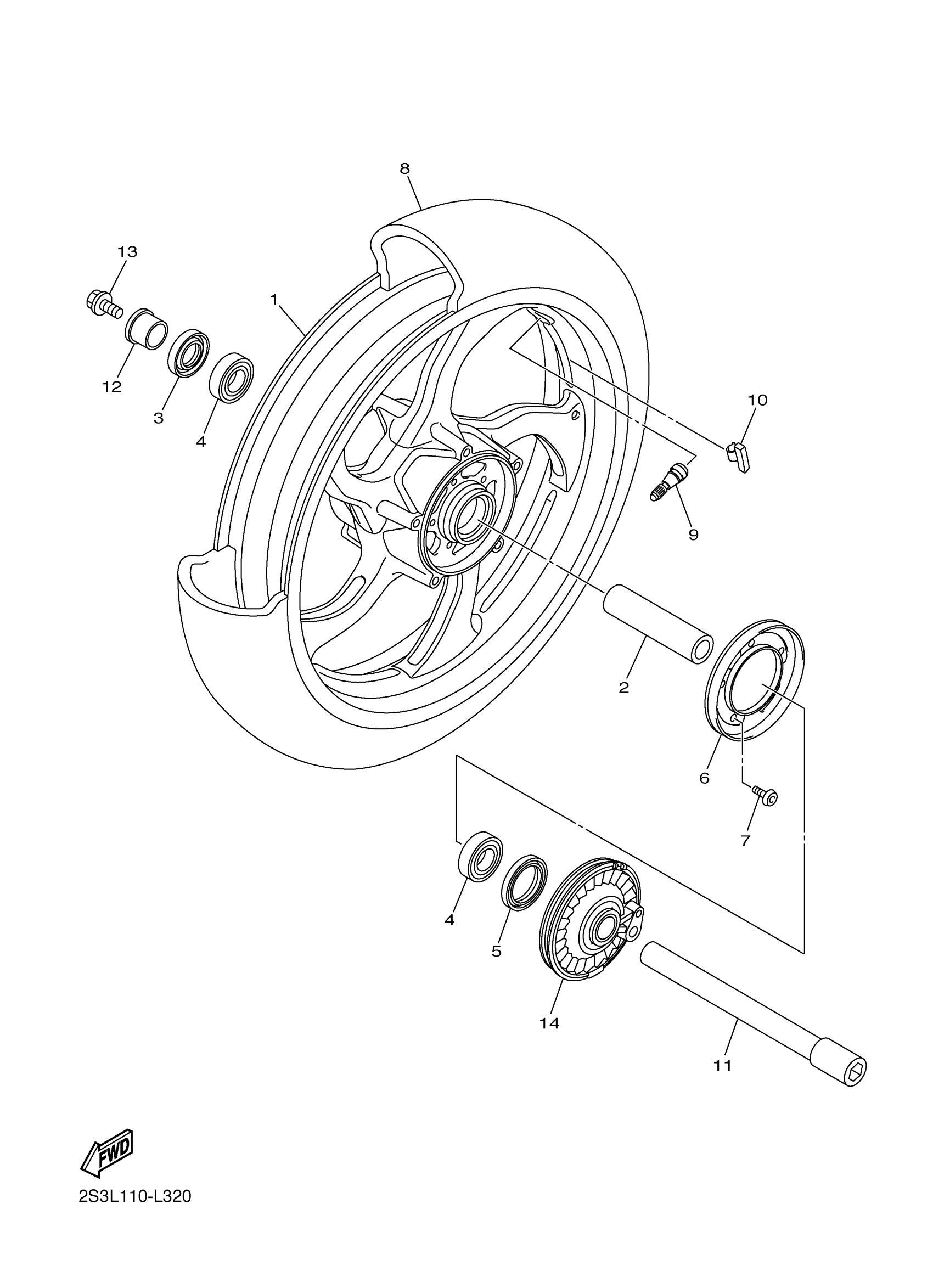

2015 Yamaha V-MAX (VMX17FR) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAST WHEEL, FRONT

2S3-25168-00-98

—

$807.99

In stock

2

SPACER, BEARING

2S3-25117-00-00

—

$44.12

In stock

3

OIL SEAL

93106-28043-00

1

$11.88

In stock

4

BEARING 60/22

93306-00420-00

1
Out of stock

5

OIL SEAL(3BC)

93106-40027-00

1

$13.22

In stock

6

ROTOR, SENSOR

2S3-2517G-00-00

1
Out of stock

7

SCREW

90149-05010-00

1

$6.25

In stock

8

TIRE(120/70 R18 M/C 59V)

94112-18033-00

1
Out of stock

9

VALVE, RIM(2GH)

93900-00030-00

1

$14.46

In stock

10

BALANCER, WHEEL

5MT-25398-00-00

1

$15.54

In stock

10

BALANCER, WHEEL

5MT-25398-10-00

1

$15.37

In stock

10

BALANCER, WHEEL

5MT-25398-20-00

—

$38.22

In stock

11

AXLE, WHEEL

2S3-25181-00-00

—

$81.28

In stock

12

COLLAR

90387-22030-00

—

$81.03

In stock

13

BOLT, FLANGE

90105-14002-00

1

$14.64

In stock

14

HOUSING, SENSOR FRONT

2S3-2517A-00-00

—

$281.77

In stock
