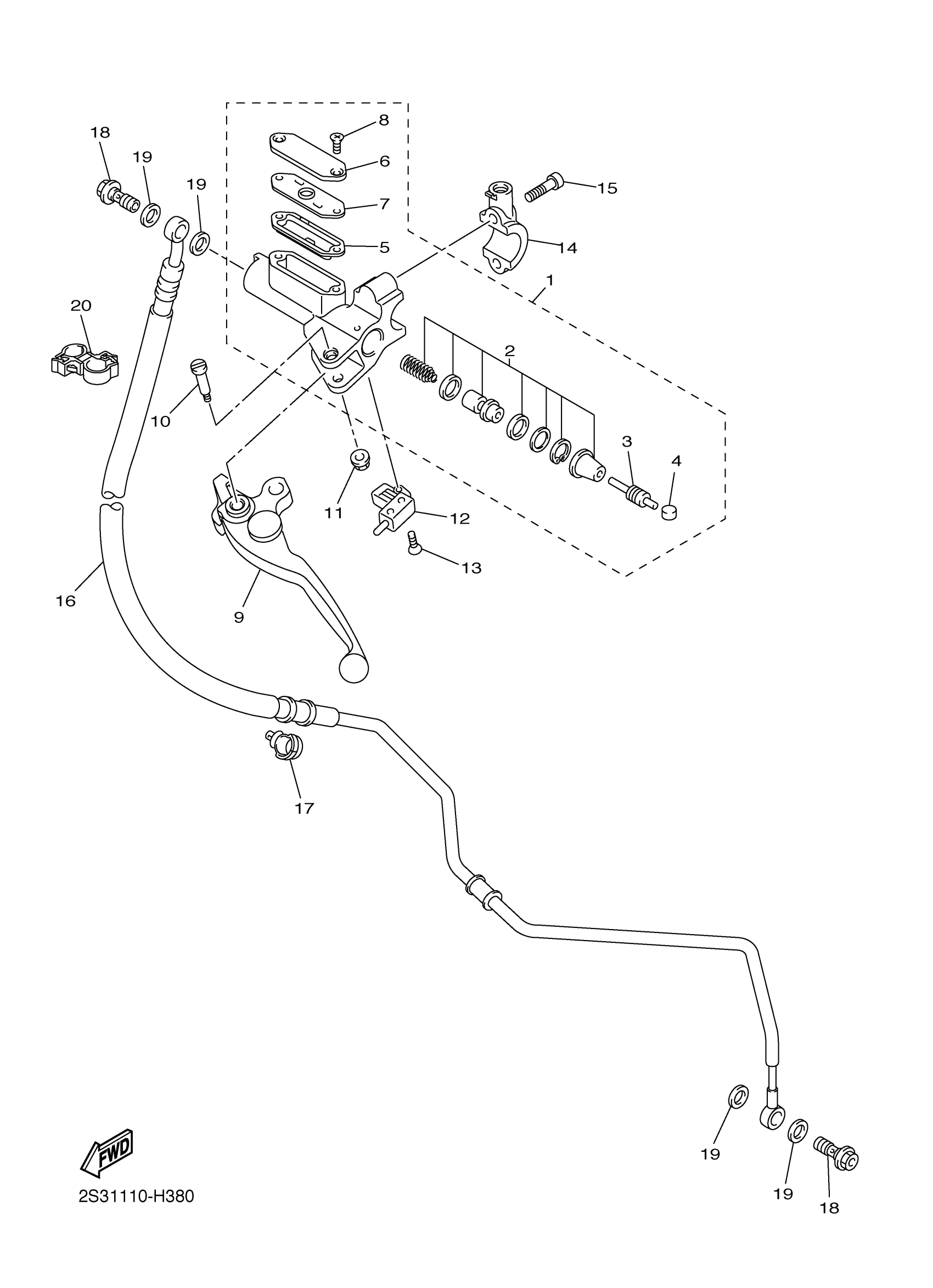

Yamaha VMX17EGY (V-MAX) 2CE5 2014 FRONT MASTER CYLINDER 2 Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

2S3-W2645-00-00

Unavailable

2

CYLINDER KIT, MASTER (CLUTCH)

5JW-W0099-00-00

$42.65

3

ROD, PUSH

3GM-26464-00-00

$14.81

4

BUSH

3GM-26455-00-00

$17.59

5

DIAPHRAGM, RESERVOIR

5YU-25854-50-00

Unavailable

6

CAP, RESERVOIR

5YU-25852-50-00

$28.70

7

BUSH,DIAPHRAGM

5YU-25855-50-00

$8.19

8

SCREW, FLAT

98707-04012-00

$1.34

9

LEVER 1

5YU-83912-11-00

$98.21

10

BOLT, LEVER

3FV-2589F-00-00

$11.87

11

NUT, FLANGE(4MV)

95707-06500-00

$0.73

12

SWITCH

3GM-83980-00-00

$44.21

13

SCREW, FLAT

98707-04016-00

$5.76

14

HOLDER

2S3-26393-00-00

$32.10

15

BOLT

5VS-26332-00-00

$3.67

16

HOSE, CLUTCH

2S3-26470-00-00

Unavailable

17

CLAMP

90464-18002-00

Unavailable

18

BOLT, UNION

90401-10172-00

Unavailable

19

GASKET

90430-10005-00

Unavailable

20

CLAMP

90464-16015-00

Unavailable
