- VMX17EGY (V-MAX) 2CE5 2014
ELECTRICAL 2

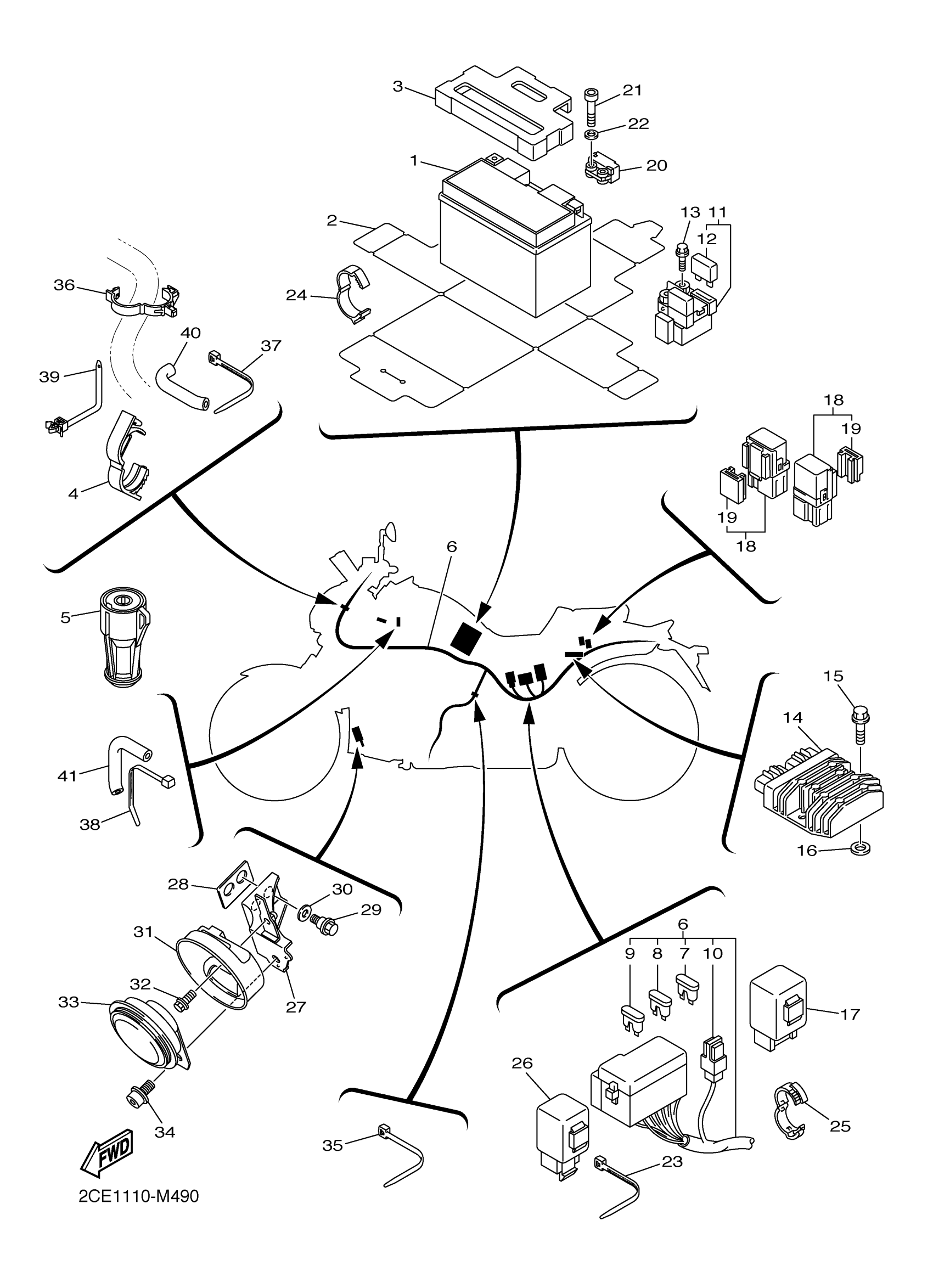

2014 Yamaha V-MAX (VMX17EGY) Electrical 2 Diagram
Find the part on the Electrical 2 diagram for your 2014 Yamaha V-MAX (VMX17EGY), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
6
WIRE HARNESS ASSY
2S3-82590-01-00
1
Out of stock
12
FUSE (12V 30A)
1AE-82151-00-00
1
Out of stock
17
RELAY ASSY
5VK-81950-33-00
—
Out of stock
18
RELAY ASSY
1TP-81950-00-00
—
Out of stock
20
SENSOR, LEAN ANGLE
5PS-82576-02-00
—
Out of stock
21
BOLT
91312-04025-00
—
Out of stock
26
FLASHER RELAY ASSY
5C4-83350-02-00
—
Out of stock
37
BAND
1UA-82591-00-00
—
Out of stock
38
BAND
1UA-82591-00-00
—
Out of stock
More Electrical diagrams
