SIDE COVER 2

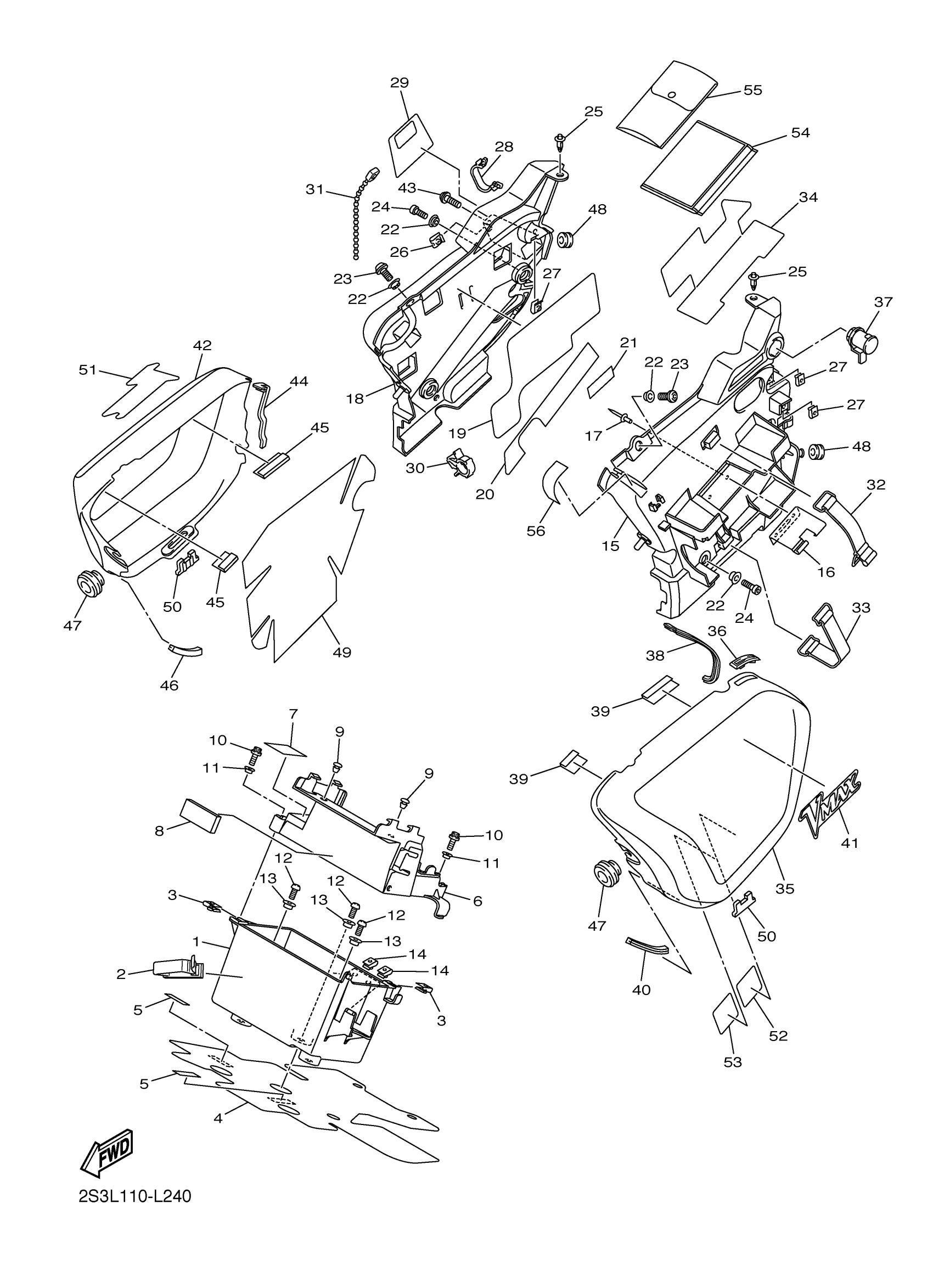

2013 Yamaha V-MAX CA (VMX17DC) Side Cover 2 Diagram
Find the part on the Side Cover 2 diagram for your 2013 Yamaha V-MAX CA (VMX17DC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
2
CLAMP
90464-13012-00
—
Out of stock
4
PROTECTOR
2S3-2117G-01-00
—
Out of stock
17
RIVET, BLIND (8K1)
90267-40076-00
—
Out of stock
35
COVER, SIDE 3
2S3-21731-10-00
—
Out of stock
42
COVER, SIDE 4
2S3-21741-10-00
—
Out of stock
