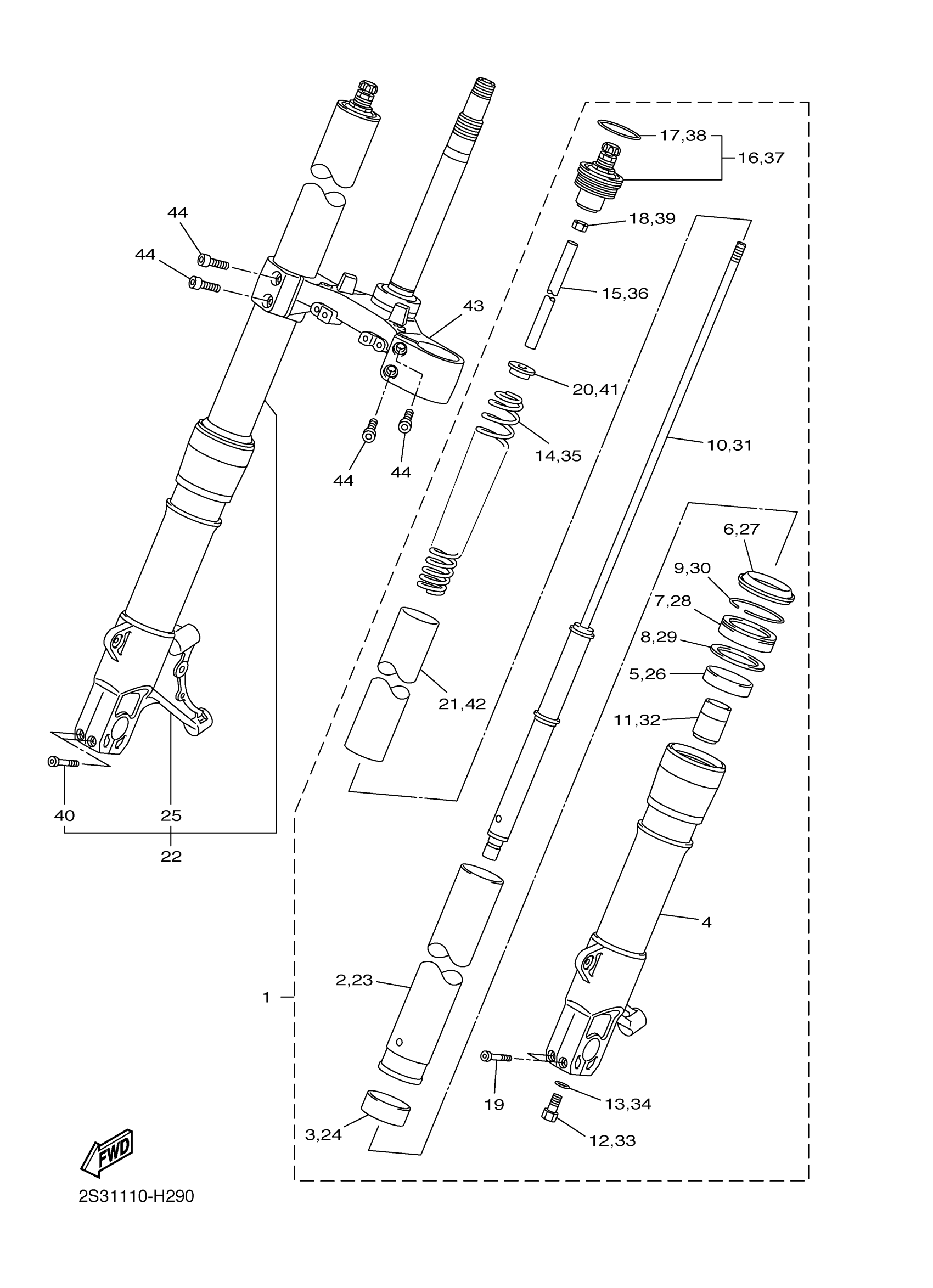

2013 Yamaha V-MAX CA (VMX17DC) Front Fork Diagram
Find the part on the Front Fork diagram for your 2013 Yamaha V-MAX CA (VMX17DC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
10
. CYLINDER COMP, FRONT FORK
2S3-23170-00-00
1
Out of stock
12
. BOLT, SPECIAL
2S3-23394-00-00
1
Out of stock
31
. CYLINDER COMP, FRONT FORK
2S3-23170-00-00
1
Out of stock
33
. BOLT, SPECIAL
2S3-23394-00-00
1
Out of stock
