2012 Yamaha V-Max CA (VMX17BCB) Rear Arm Diagram

← All diagrams

Find the part on the Rear Arm diagram for your 2012 Yamaha V-Max CA (VMX17BCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

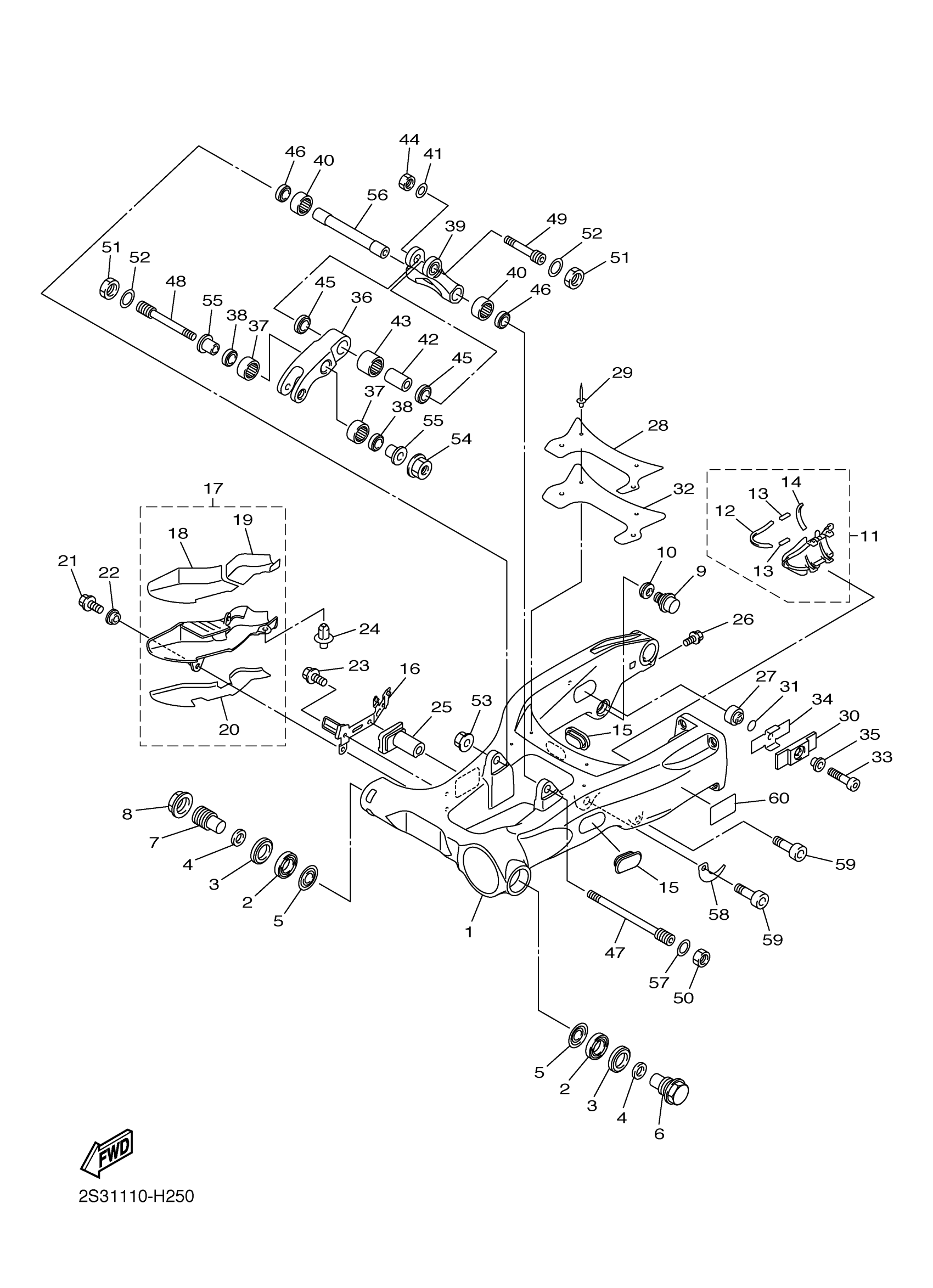

2012 Yamaha V-Max CA (VMX17BCB) Rear Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR ARM COMP.

2S3-22110-00-00

—
Out of stock

2

BEARING (26H)

93332-00051-00

—
Out of stock

3

OIL SEAL

93106-28003-00

1
Out of stock

4

COLLAR

90387-20031-00

1
Out of stock

5

PANEL, INNER 1

2S3-2211E-00-00

1
Out of stock

6

SHAFT, PIVOT

2S3-22141-00-00

1
Out of stock

7

SHAFT, PIVOT 2

2S3-2214H-00-00

1
Out of stock

8

NUT

90179-28007-00

—
Out of stock

9

STOPPER, TORQUE

2S3-2214E-00-00

1
Out of stock

10

CAP

2S3-22117-00-00

—
Out of stock

11

COVER ASSY

2S3-22250-00-00

—
Out of stock

12

. DAMPER, SHOCK ABSORBER LOWER

2S3-22218-00-00

1
Out of stock

13

. DAMPER 1

2S3-22483-00-00

1
Out of stock

14

. DAMPER 2

2S3-22492-00-00

1
Out of stock

15

COVER, THRUST 2

2S3-22129-00-00

—
Out of stock

16

BRACKET

2S3-22163-00-00

1
Out of stock

17

COVER ASSY 1

2S3-228A0-00-00

—
Out of stock

18

. SEAT 1

2S3-27498-00-00

1
Out of stock

19

. SEAT 2

2S3-27499-00-00

1
Out of stock

20

. SEAT 3

2S3-2749A-00-00

1
Out of stock

21

BOLT, FLANGE

95022-06012-00

—
Out of stock

22

COLLAR

90387-06200-00

—
Out of stock

23

BOLT, FLANGE

95022-06012-00

—
Out of stock

24

RIVET

90269-08069-00

1
Out of stock

25

DAMPER 1

2S3-2214F-00-00

—
Out of stock

26

BOLT, SOCKET

91314-08035-00

—
Out of stock

27

DAMPER 2

2S3-2214G-00-00

1
Out of stock

28

PATCH

2S3-22168-00-00

1
Out of stock

29

RIVET, BLIND(8AC)

90267-40172-00

—
Out of stock

30

DAMPER 2

2S3-21639-00-00

—
Out of stock

31

PLATE

2S3-22249-00-00

1
Out of stock

32

DAMPER

2S3-21649-00-00

1
Out of stock

33

BOLT,SOCKET

91314-08040-00

—
Out of stock

34

BRKT., 1

2S3-2216B-00-00

1
Out of stock

35

COLLAR(1HX)

90387-081N1-00

—
Out of stock

36

ARM, RELAY

2S3-2217A-00-00

—
Out of stock

37

BEARING

93315-31758-00

—
Out of stock

38

OIL SEAL

93109-17071-00

—
Out of stock

39

ARM 1

2S3-2217M-00-00

—
Out of stock

40

BEARING

93315-31758-00

—
Out of stock

41

WASHER, PLATE

90201-12050-00

—
Out of stock

42

COLLAR(1FN)

90387-123M3-00

—
Out of stock

43

BEARING, CYLINDRICAL(4RR)

93315-32053-00

—
Out of stock

44

NUT, SELF LOCKING (23X)

90185-12119-00

—
Out of stock

45

OIL SEAL

93109-20001-00

—
Out of stock

46

OIL SEAL

93109-17071-00

—
Out of stock

47

BOLT

90109-10055-00

—
Out of stock

48

BOLT

90109-12017-00

—
Out of stock

49

BOLT

90109-12016-00

—
Out of stock

50

NUT

90170-16M27-00

1
Out of stock

51

NUT(3MA)

90170-18392-00

—
Out of stock

52

WASHER, PLATE

90201-18025-00

—
Out of stock

53

NUT, SELF-LOCKING(JN5)

95607-10200-00

—
Out of stock

54

NUT, U FLANGE

95607-12200-00

—
Out of stock

55

COLLAR

90387-12044-00

—
Out of stock

56

COLLAR

90387-10067-00

—
Out of stock

57

WASHER, PLATE

90201-16022-00

—
Out of stock

58

STAY, CHAIH CASE 1

2S3-22131-00-00

—
Out of stock

59

BOLT (33M)

91312-06014-00

—
Out of stock

60

LABEL, TIRE

2S3-21668-00-00

—
Out of stock
