ELECTRICAL 1

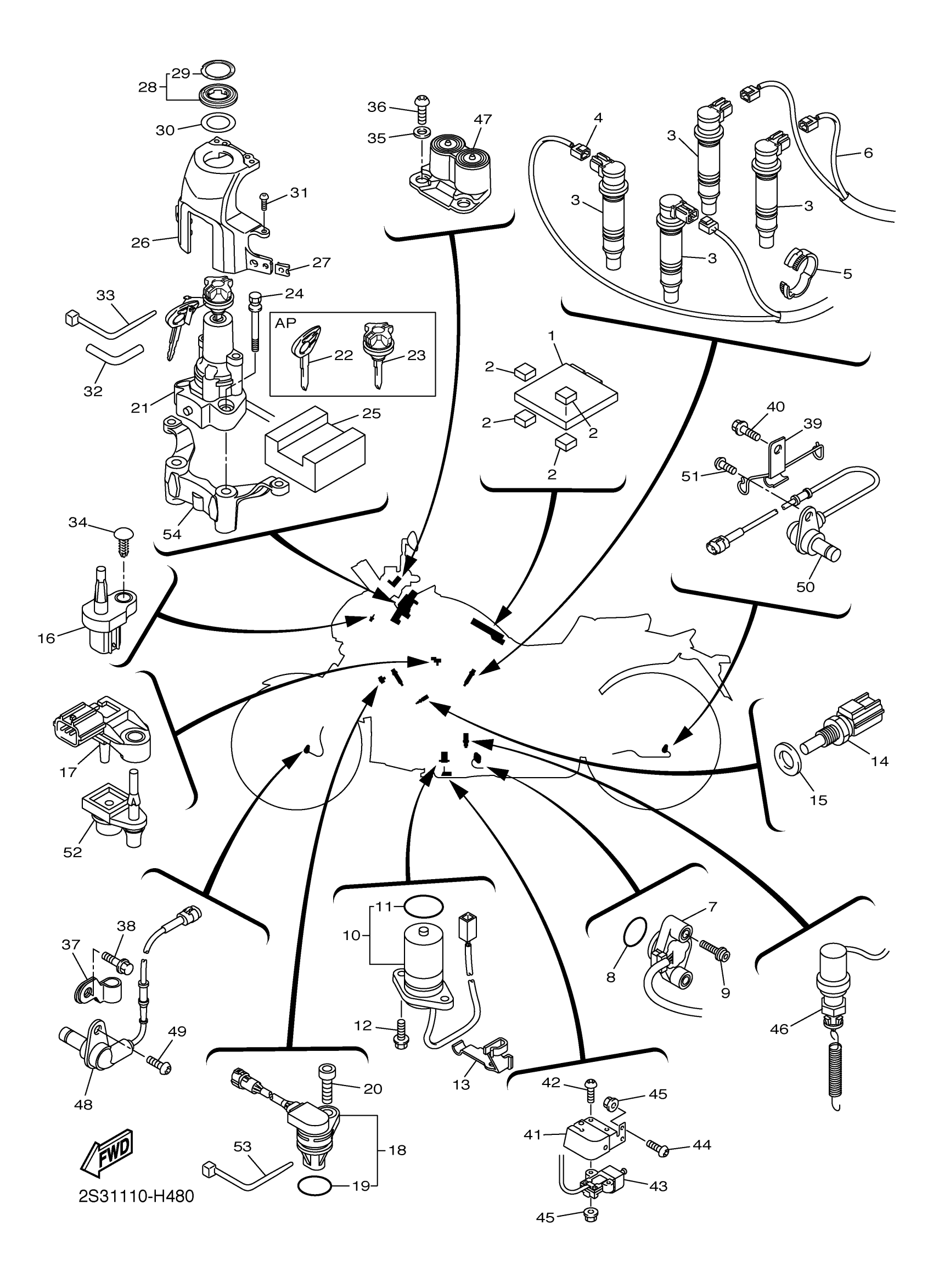

2012 Yamaha V-MAX CA (VMX17BCB) Electrical 1 Diagram
Find the part on the Electrical 1 diagram for your 2012 Yamaha V-MAX CA (VMX17BCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
ENGINE CONTROL UNIT ASSY
2S3-8591A-A1-00
7
NEUTRAL SWITCH ASSY
2S3-82540-01-00
9
BOLT, HEXAGON SOCKET HEAD
90110-05054-00
17
SENSOR, PRESSURE
1WS-82380-00-00
22
BLANK KEY
5PX-82511-09-00
25
DAMPER
2S3-28372-00-00
26
STAY
2S3-2117A-00-00
33
BAND
1UA-82591-00-00
36
BOLT, BUTTON HEAD
92017-06016-00
38
BOLT, FLANGE(2UJ)
95024-06012-00
40
BOLT, FLANGE(2UJ)
95024-06012-00
45
NUT, U FLANGE
95604-05200-00
46
STOP SWITCH ASSY
2S3-82530-02-00
48
WHEEL SENSOR ASSY, FRONT
2S3-85970-01-00
49
BOLT, BUTTON HEAD(4NK)
92014-06014-00
50
WHEEL SENSOR ASSY, REAR
2S3-85980-01-00
51
BOLT, BUTTON HEAD(4NK)
92014-06014-00
53
BAND
1UA-82591-00-00
