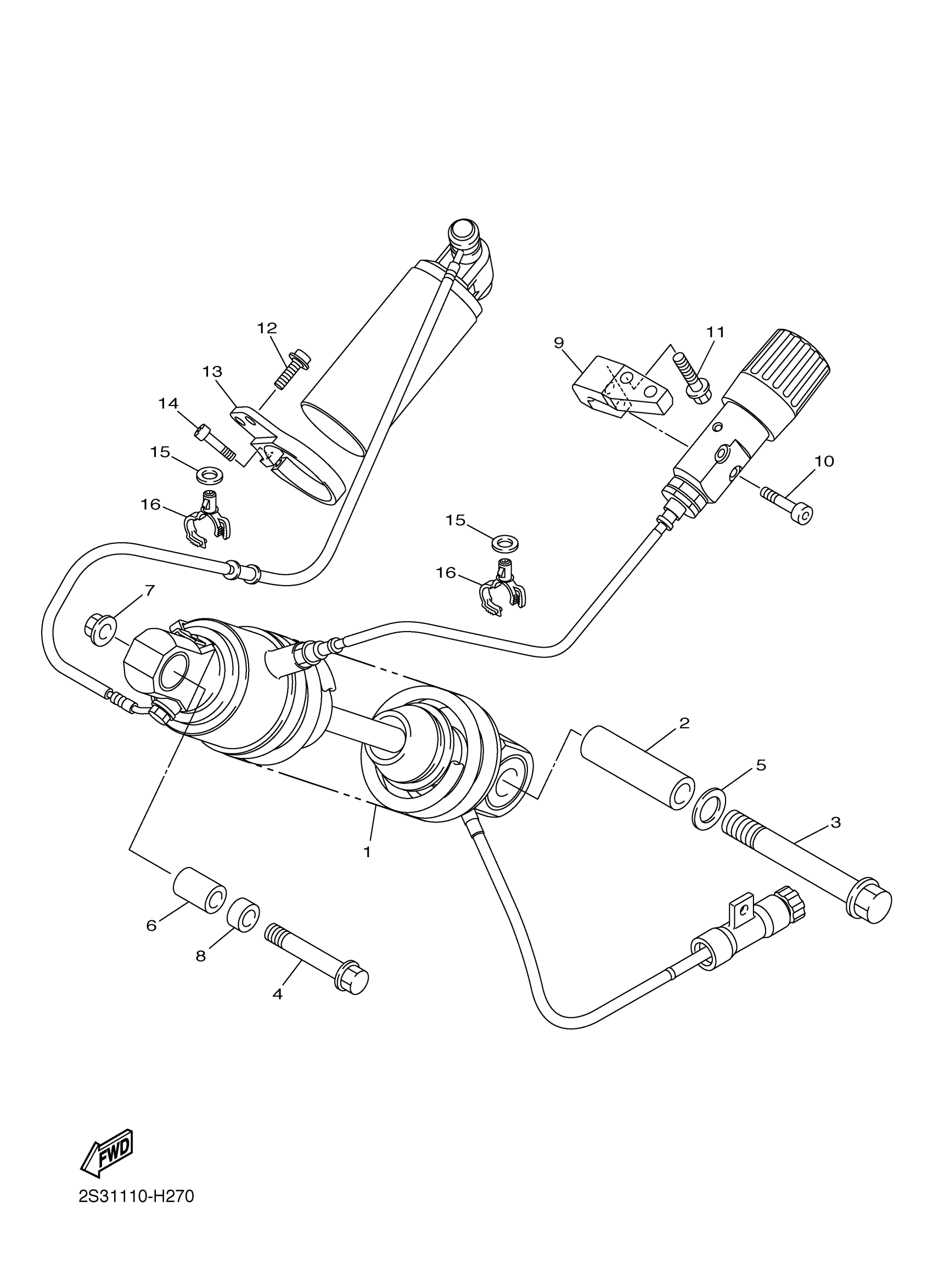

Yamaha VMX17AG (V-MAX) 2S3E 2011 REAR SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY, REAR

2S3-22210-00-00

Unavailable

2

COLLAR

90387-14013-00

$15.45

3

BOLT, FLANGE

90105-14006-00

Unavailable

4

BOLT, WASHER BASED(1KT)

90105-10402-00

$7.24

5

WASHER, PLATE

90201-16022-00

$7.77

6

COLLAR

90387-1012A-00

$16.59

7

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.11

8

BUSH, SOLID

90380-10005-00

Unavailable

9

BRACKET

2S3-27332-00-00

$53.71

10

BOLT

91314-05025-00

$0.74

11

BOLT, FLANGE

90105-06148-00

$5.80

12

BOLT, HEXAGON SOCKET HEAD

90110-06387-00

$2.31

13

BRKT

2S3-27333-00-00

Unavailable

14

BOLT,SOCKET HEAD

91314-05020-00

$1.52

15

WASHER, PLATE

90201-06105-00

$0.98

16

CLAMP

90464-18002-00

Unavailable
