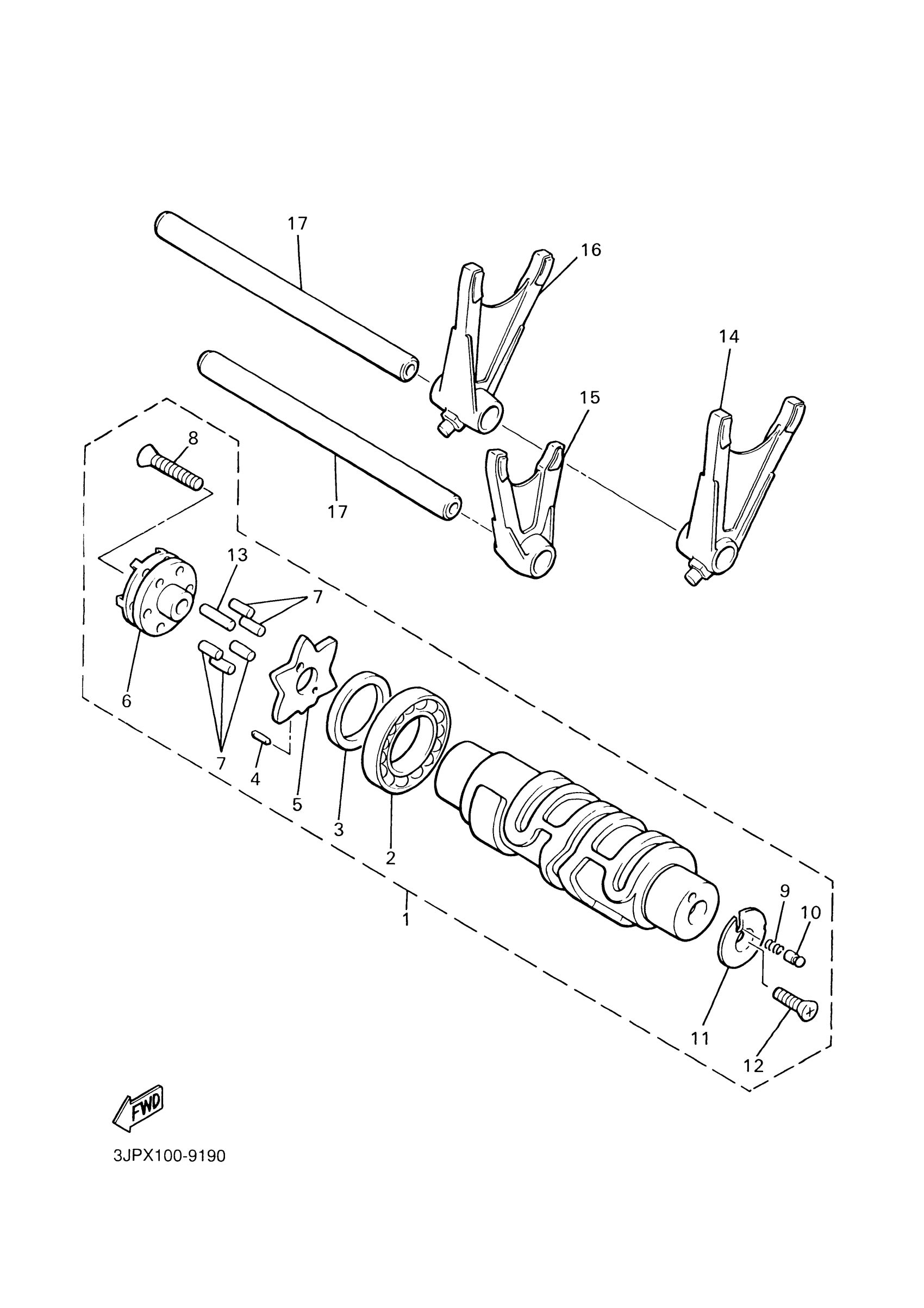

2007 Yamaha V-MAX CA (VMX12W1C) Shift CAM Fork Diagram

← All diagrams

Find the part on the Shift CAM Fork diagram for your 2007 Yamaha V-MAX CA (VMX12W1C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Yamaha V-MAX CA (VMX12W1C) Shift CAM Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSY

26H-18540-03-00

—
Out of stock

2

BRG,R-B (4X7)

93306-90602-00

1

$40.58

In stock

3

SPACER (26H)

90560-30234-00

—

$2.45

In stock

4

PIN (2H7)

93603-10049-00

—
Out of stock

5

PLATE, STOPPER

4NK-18141-00-00

—
Out of stock

6

SEGMENT

4NK-18185-00-00

—
Out of stock

7

PIN,DOWEL (168)

93604-12037-00

1
Out of stock

8

SCREW, COUNTERSUNK (5H0)

90151-06013-00

1

$6.91

In stock

9

1

$6.17

In stock

10

POINT, NEUTRAL

4UN-18542-00-00

1

$8.44

In stock

11

PLATE, SIDE 2

4UN-18566-00-00

1

$17.29

In stock

12

SCREW(3HX)

90149-05245-00

1

$6.18

In stock

13

PIN, DOWEL (409)

93604-16092-00

1

$1.94

In stock

14

FORK, SHIFT 1

26H-18511-01-00

1
Out of stock

15

FORK, SHIFT 2

26H-18512-00-00

1
Out of stock

16

FORK, SHIFT 3

26H-18513-00-00

—
Out of stock

17

BAR, SHIFT FORK GUIDE 1

26H-18531-00-00

—
Out of stock
