2007 Yamaha V-MAX CA (VMX12W1C) Front Fork Diagram

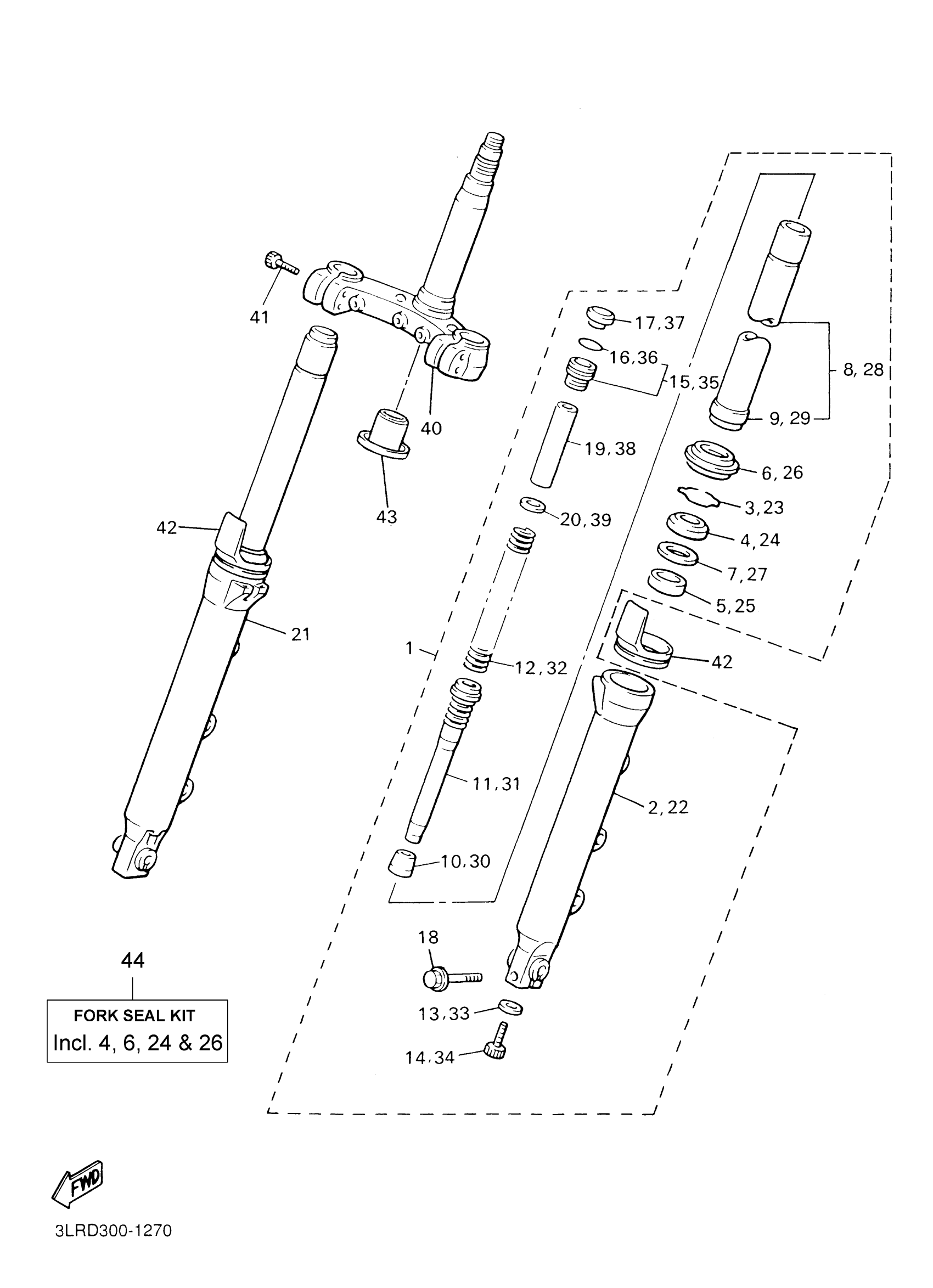

Find the part on the Front Fork diagram for your 2007 Yamaha V-MAX CA (VMX12W1C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRONT FORK ASSY (L.H)
5GK-23102-10-00
2
TUBE, OUTER (LEFT)
5GK-23126-10-00
5
METAL, SLIDE 1
5EB-23125-00-00
8
INNER TUBE COMP.1
5GK-23110-00-00
9
PISTON, FRONT FORK
5EA-23171-30-00
11
CYLINDER COMP., FRONT FORK
5GK-23170-00-00
12
SPRING, FRONT FORK
5GK-23141-00-00
15
BOLT, CAP
3LR-23111-00-00
17
CAP, FRONT FORK
3LR-23168-00-00
19
SPACER
3YF-23118-00-00
20
WASHER, SPRING UPPER
3LR-23149-00-00
21
FRONT FORK ASSY (R.H)
5GK-23103-10-00
22
TUBE, OUTER
5GK-23136-10-00
25
METAL, SLIDE 1
5EB-23125-00-00
28
INNER TUBE COMP.1
5GK-23110-00-00
29
PISTON, FRONT FORK
5EA-23171-30-00
31
CYLINDER COMP., FRONT FORK
5GK-23170-00-00
32
SPRING, FRONT FORK
5GK-23141-00-00
35
BOLT, CAP
3LR-23111-00-00
37
CAP, FRONT FORK
3LR-23168-00-00
38
SPACER
3YF-23118-00-00
39
WASHER, SPRING UPPER
3LR-23149-00-00
40
UNDER BRACKET COMP.
5GK-23340-20-00
41
BOLT
91314-08032-00
