2004 Yamaha V-Max CA (VMX12SC1) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 2004 Yamaha V-Max CA (VMX12SC1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

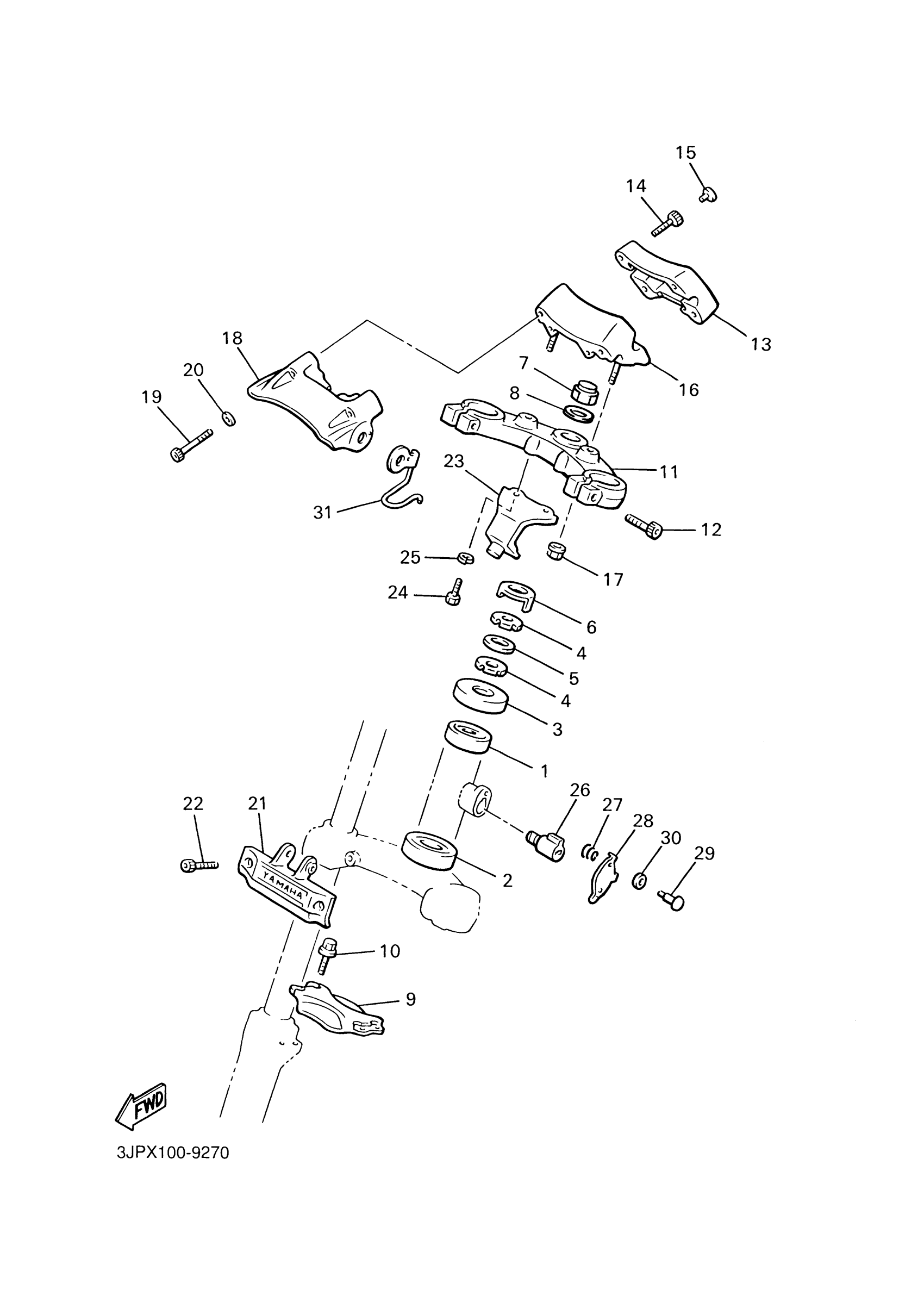

2004 Yamaha V-Max CA (VMX12SC1) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRG, TAPERED ROLLER (409)

93332-00001-00

1
Out of stock

2

BRG,CYL-CAL ROLLER 131G KY

93332-00008-00

1
Out of stock

3

COVER, BALL RACE 1

1J7-23415-00-00

1
Out of stock

4

NUT

90179-25004-00

1
Out of stock

5

WASHER, PLATE (26H)

90202-26142-00

1
Out of stock

6

WASHER, SPECIAL

26H-23418-01-00

1
Out of stock

7

NUT, CROWN(4FM)

90176-22081-00

1
Out of stock

8

WASHER, PLATE

90201-22018-00

1
Out of stock

9

BRACE, FORK

3LR-2313A-00-00

1
Out of stock

10

BOLT, FLANGE (3JPE)

95024-08016-00

1
Out of stock

11

CROWN, HANDLE

1FK-23435-10-00

1
Out of stock

12

BOLT,SOCKET

91314-08040-00

1
Out of stock

13

HOLDER, HANDLE UPPER

1FK-23441-00-38

—
Out of stock

14

BOLT, SOCKET

91317-08030-00

1
Out of stock

15

PLUG(42X)

90338-08163-00

1
Out of stock

16

HOLDER, HANDLE LOWER

1FK-23442-00-38

1
Out of stock

17

NUT, SELF-LOCKING(JN5)

95607-10200-00

—
Out of stock

18

COVER, CROWN

1FK-23437-00-38

—
Out of stock

19

BOLT,SOCKET

91314-06050-00

—
Out of stock

20

WASHER, PLAIN (646)

92990-06600-00

—
Out of stock

21

STAY, HEADLIGHT

1FK-23174-00-00

1
Out of stock

22

BOLT,SOCKET HEAD

91314-06020-00

—
Out of stock

23

STAY, PLATE

1FK-23486-00-00

—
Out of stock

24

BOLT, HEXAGON

97017-06012-00

—
Out of stock

25

WASHER(6TA)

92907-06600-00

—
Out of stock

26

STEERING LOCK ASSY

2A6-23408-00-00

—
Out of stock

27

SPRING, CONICAL (1E6)

90502-09024-00

—
Out of stock

28

CAP, HANDLE LOCK

584-23484-01-00

—
Out of stock

29

RIVET 214234830000

90269-04003-00

—
Out of stock

30

WASHER, CONICAL SPRING (3J3)

90208-04029-00

—
Out of stock

31

HOLDER, CABLE

1FK-23317-00-00

1
Out of stock
