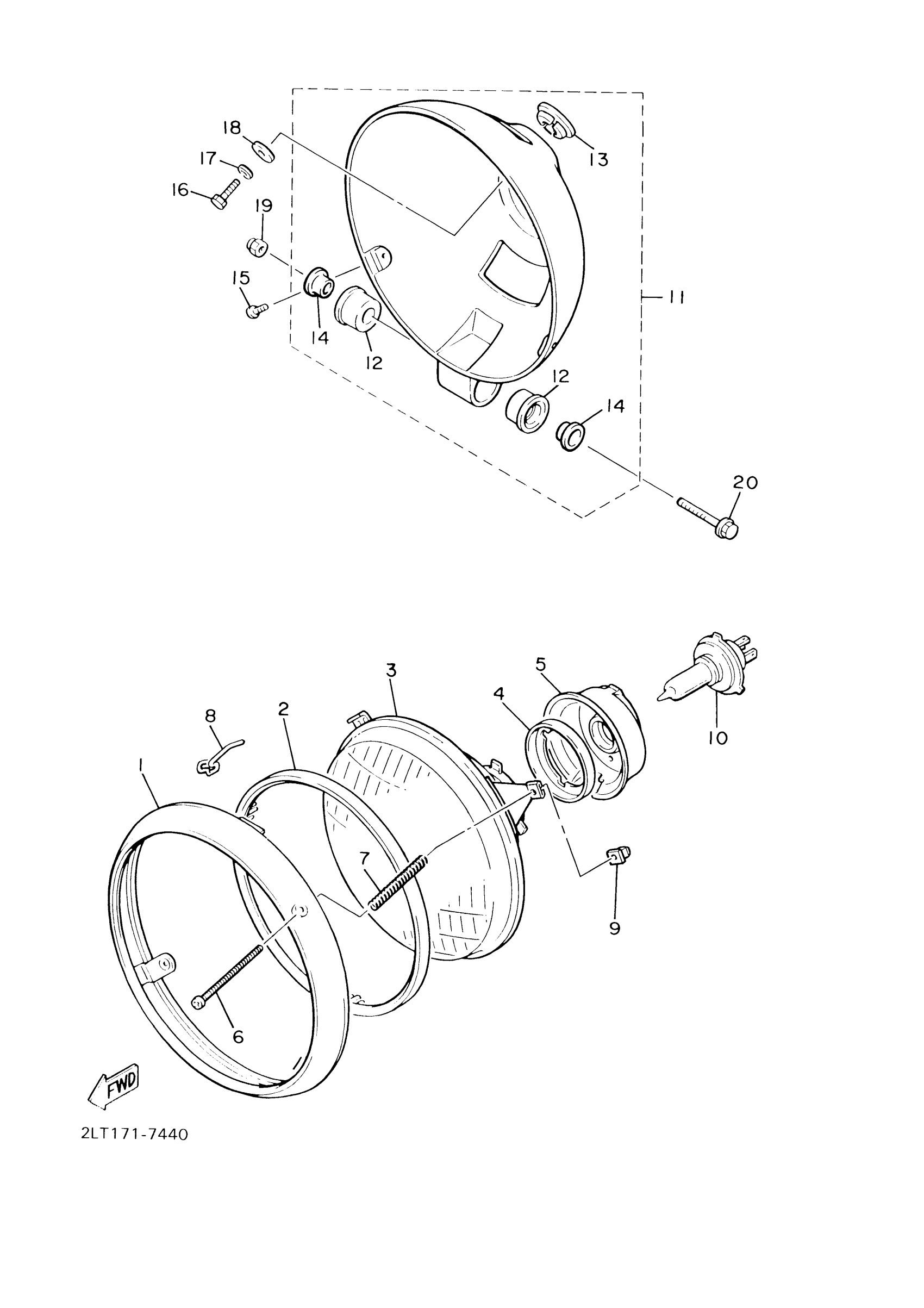

Find the part on the Headlight diagram for your 2003 Yamaha V-MAX CA (VMX12RC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Yamaha V-MAX CA (VMX12RC) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RIM, HEADLIGHT

42X-84315-01-00

1

$113.35

In stock

2

RING, RETAINING

5Y3-84395-00-00

—

$47.86

In stock

3

LENS, HEADLIGHT

42X-84321-A0-00

1

$116.37

In stock

4

SETTING PLATE, BULB

2F9-84375-00-00

—

$12.66

In stock

5

COVER, SOCKET

2F9-84397-01-00

1

$27.82

In stock

6

SCREW 214841316100

90157-04001-00

1

$5.35

In stock

7

SPRING, COMPRESSION (ITALY)

447-84332-60-00

1

$9.22

In stock

8

SPRING, SET

42X-84124-60-00

1

$6.43

In stock

9

NUT, ADJUST

198-84334-60-00

1

$6.43

In stock

10

BULB, HEADLIGHT

8V0-84314-10-00

1
Out of stock

11

BODY ASSY

42X-84330-01-00

1

$207.40

In stock

12

DAMPER, HEADLIGHT

42X-84345-00-00

1

$4.98

In stock

13

DAMPER, HEADLIGHT 1

42X-84366-00-00

1

$18.66

In stock

14

COLLAR, BODY FITTING

1FK-84338-00-00

1

$2.92

In stock

15

SCREW, PAN HEAD

98507-05014-00

1

$6.18

In stock

16

BOLT, HEXAGON

97017-06016-00

—

$6.18

In stock

17

WASHER(6TA)

92907-06600-00

—

$0.78

In stock

18

WASHER, PLATE

90201-06086-00

—
Out of stock

19

NUT, CROWN (21G)

90176-06041-00

—

$2.74

In stock

20

BOLT, FLANGE

90105-06375-00

1
Out of stock
