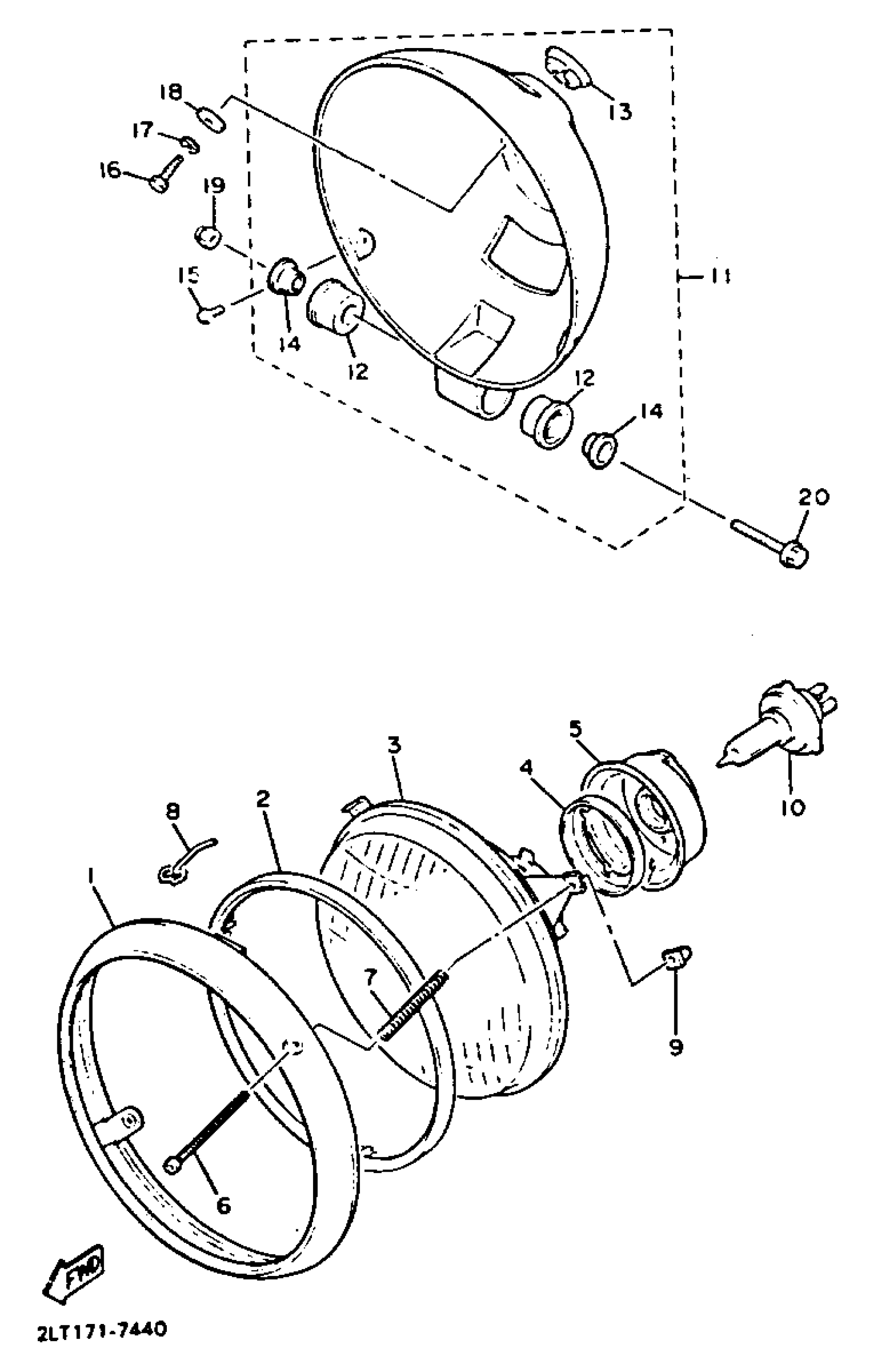

Yamaha VMX12DC (V-MAX 1200 CA) 3JPA 1992 HEADLIGHT Diagram

#

Description
Price

1

RIM, HEADLIGHT

42X-84315-01-00

$111.64

2

RING, RETAINING

5Y3-84395-00-00

Unavailable

3

LENS, HEADLIGHT

42X-84321-A0-00

$114.61

4

SETTING PLATE, BULB

2F9-84375-00-00

Unavailable

5

COVER, SOCKET

2F9-84397-01-00

$25.71

6

SCREW 214841316100

90157-04001-00

$5.10

7

SPRING, COMPRESSION (ITALY)

447-84332-60-00

$8.72

8

SPRING, SET

42X-84124-60-00

$6.33

9

NUT, ADJUST

198-84334-60-00

$6.12

10

BULB, HEADLIGHT

8V0-84314-10-00

$72.12

11

BODY ASSY

42X-84330-01-00

$204.26

12

DAMPER, HEADLIGHT

42X-84345-00-00

$4.91

13

DAMPER, HEADLIGHT 1

42X-84366-00-00

$18.38

14

COLLAR, BODY FITTING

1FK-84338-00-00

$2.98

15

SCREW, PAN HEAD(1AA)

90157-05084-00

$3.44

16

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

17

WASHER, SPRING

92995-06100-00

$2.83

18

WASHER, PLATE

90201-06086-00

Unavailable

19

NUT, CROWN (21G)

90176-06041-00

Unavailable

20

BOLT, FLANGE

90105-06375-00

Unavailable
