2002 Yamaha V-Max CA (VMX1200PC) Steering Handle Cable Diagram

← All diagrams

Find the part on the Steering Handle Cable diagram for your 2002 Yamaha V-Max CA (VMX1200PC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

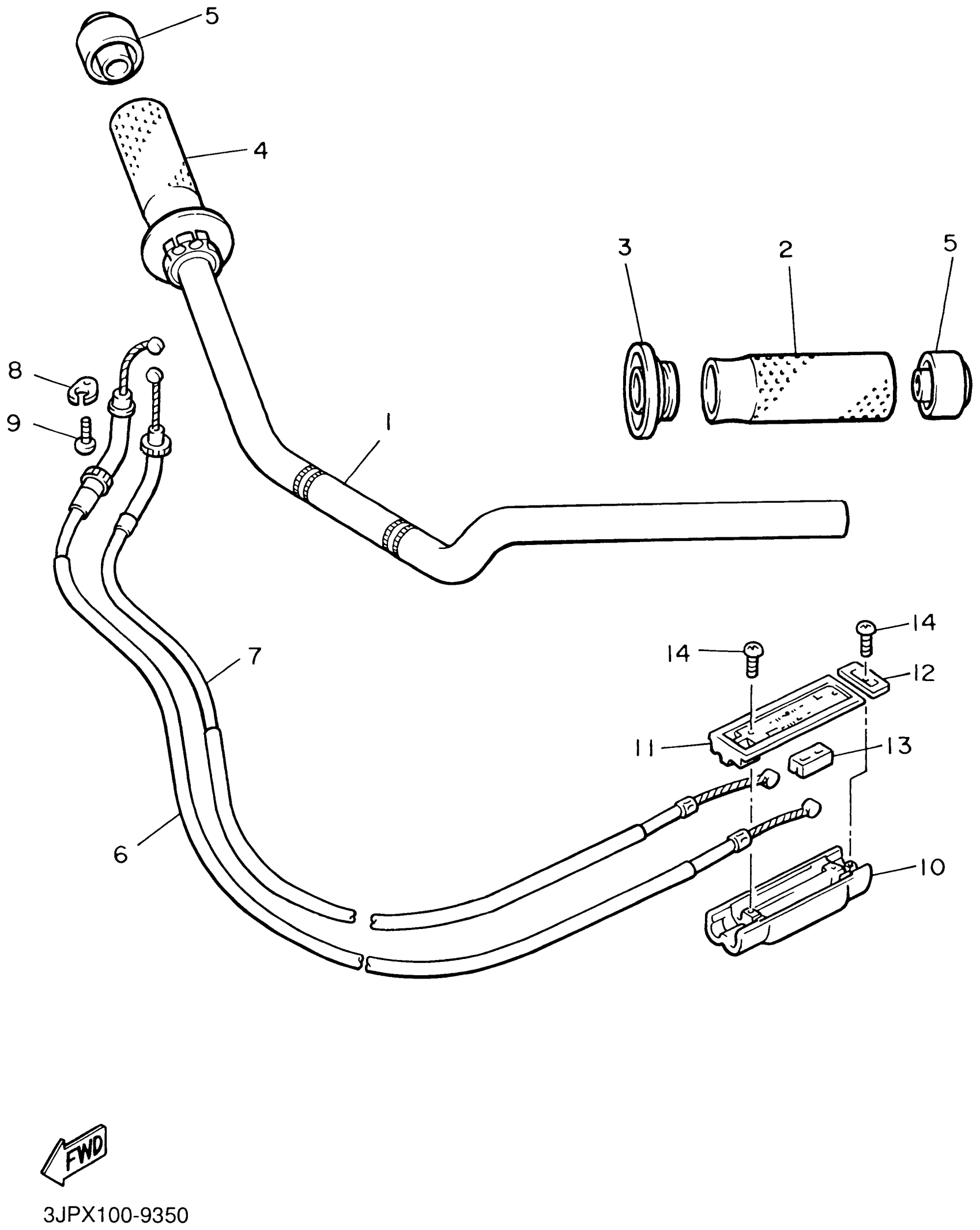

2002 Yamaha V-Max CA (VMX1200PC) Steering Handle Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

1FK-26111-10-00

—
Out of stock

2

GRIP

3JB-26241-00-00

1
Out of stock

3

ROTOR

3JB-26273-00-00

1
Out of stock

4

GRIP ASSY

3JB-26240-00-00

1
Out of stock

5

CAP, GRIP

3JB-2628J-00-00

1
Out of stock

6

CABLE, THROTTLE 1

1FK-26311-01-00

1
Out of stock

7

CABLE, THROTTLE 2

1FK-26312-01-00

—
Out of stock

8

HOLDER

5H0-26393-00-00

1
Out of stock

9

GASKET, EXHAUST

98507-05008-00

1
Out of stock

10

CONNECTOR, CABLE

36Y-26261-00-00

1
Out of stock

11

CAP, CABLE CONNECTOR

36Y-26262-01-00

1
Out of stock

12

CAP

36Y-26272-00-00

—
Out of stock

13

SLIDER, THROTTLE

26H-26244-01-00

1
Out of stock

14

SCREW, PAN TAP.2

97707-30512-00

1
Out of stock
