2002 Yamaha V-Max CA (VMX1200PC) Shift Shaft Diagram

← All diagrams

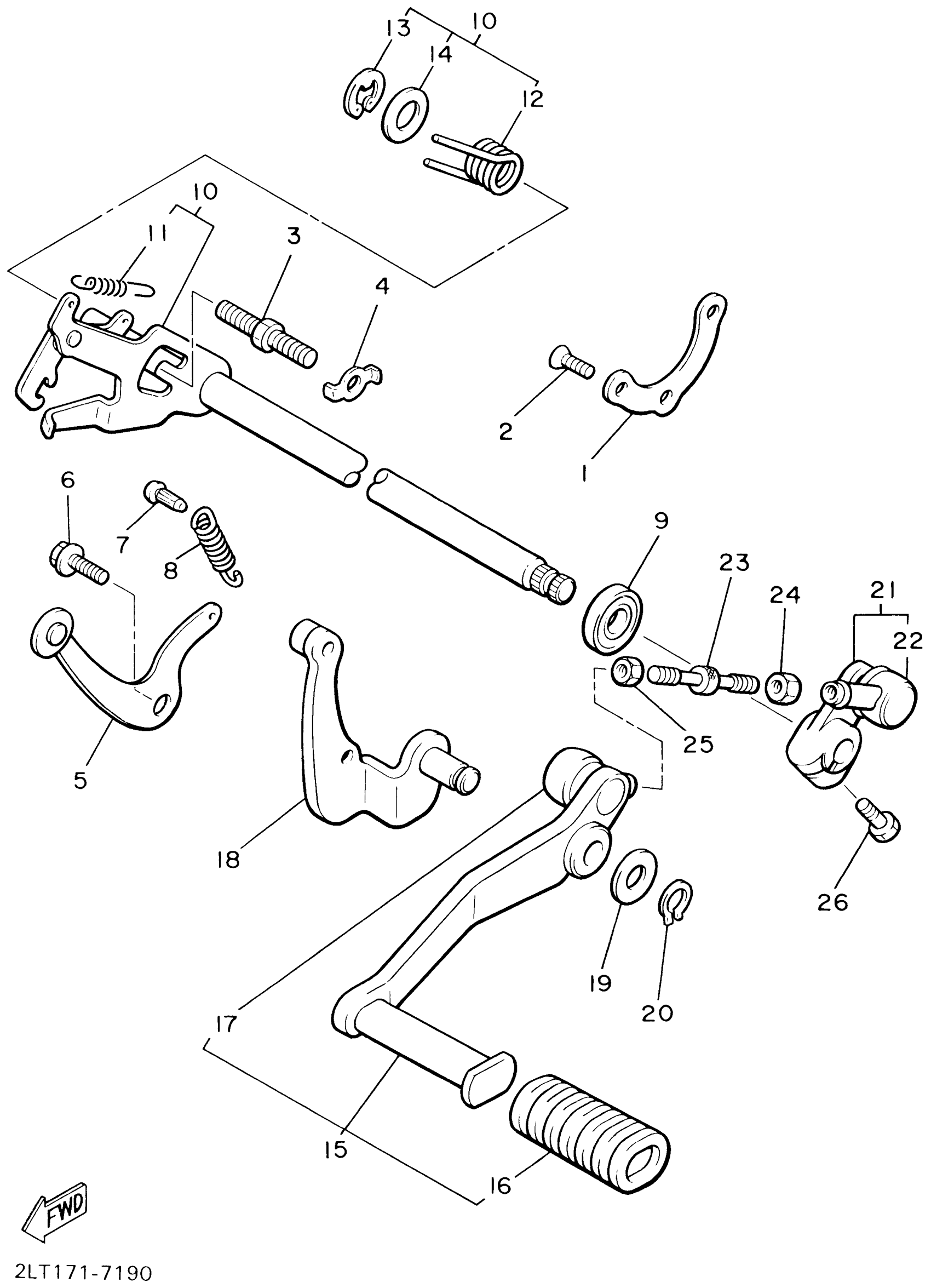

Find the part on the Shift Shaft diagram for your 2002 Yamaha V-Max CA (VMX1200PC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Yamaha V-Max CA (VMX1200PC) Shift Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STOPPER, SHIFT BAR

26H-18536-00-00

1
Out of stock

2

SCREW, FLAT HEAD(4EM)

98707-06016-00

1

$6.68

In stock

3

BOLT (1J7)

90109-08441-00

1
Out of stock

4

WASHER, LOCK (583 SHIFT)

90215-08115-00

1
Out of stock

5

STOPPER LEVER ASSY

26H-18140-02-00

—
Out of stock

6

BOLT

90109-06036-00

1
Out of stock

7

HOOK, SPRING

132-16346-00-00

1
Out of stock

8

SPRING, TENSION (26H)

90506-13312-00

1
Out of stock

9

SEAL, OIL (30X)

93102-12321-00

1

$10.14

In stock

10

SHIFT SHAFT ASSY

1FK-18101-01-00

1
Out of stock

11

SPRING, TENSION (4H7)

90506-08227-00

1

$2.85

In stock

12

SPRING, TORSION (26H)

90508-32588-00

—
Out of stock

13

CIRCLIP

99006-10600-00

1

$6.91

In stock

14

WASHER, PLATE (5N6)

90201-127E1-00

1

$3.68

In stock

15

SHIFT PEDAL ASSY

1FK-18110-00-00

1
Out of stock

16

COVER, SHIFT PEDAL

22N-18113-00-00

—

$6.46

In stock

17

COVER, DUST

2H9-18154-00-00

—
Out of stock

18

BRACKET

1FK-18128-00-00

—
Out of stock

19

WASHER, PLATE (5K7)

90201-124E4-00

—

$6.43

In stock

20

CIRCLIP(10Y)

99009-12400-00

—

$3.08

In stock

21

LEVER, SHIFT 4

1FK-18152-00-00

1
Out of stock

22

COVER, DUST

2H9-18154-00-00

—
Out of stock

23

ROD, SHIFT

42X-18115-00-00

—
Out of stock

24

NUT

9538R-06700-00

1
Out of stock

25

NUT (2H9)

90170-06228-00

—

$5.20

In stock

26

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock
