2002 Yamaha V-MAX CA (VMX1200PC) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 2002 Yamaha V-MAX CA (VMX1200PC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

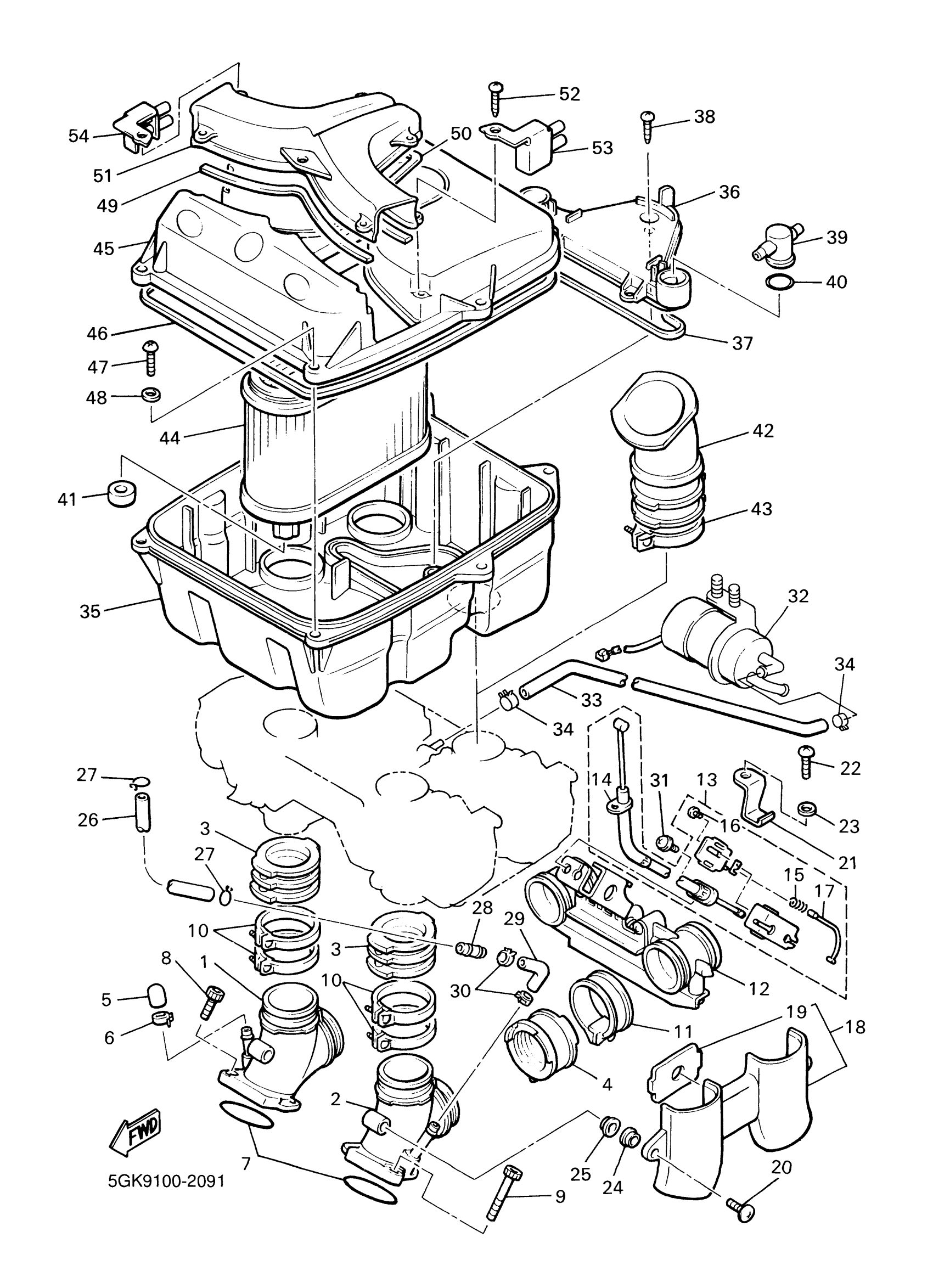

2002 Yamaha V-MAX CA (VMX1200PC) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 1

1FK-13586-00-00

—
Out of stock

2

JOINT, CARBURETOR 2

1FK-13596-00-00

—
Out of stock

3

JOINT, CARBURETOR 3

1FK-13597-00-00

1
Out of stock

4

JOINT

1FK-13595-01-00

—
Out of stock

5

PLUG, BLIND

16G-13569-00-00

1
Out of stock

6

CLIP (3G0)

90467-10039-00

1
Out of stock

7

O-RING (26H)

93210-45578-00

1
Out of stock

8

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

9

BOLT, SOCKET

91314-06016-00

1

$6.17

In stock

10

HOSE CLAMP ASSY

90450-53005-00

—

$8.63

In stock

11

CLAMP, HOSE(1FK)

90460-49274-00

—
Out of stock

12

VALVE ASSY.

1UT-13510-00-00

1
Out of stock

13

WIRE PULLEY ASS'Y

1FK-1130E-00-00

1
Out of stock

14

WIRE PULLEY ASS'Y

1FK-1130E-00-00

1
Out of stock

15

SPRING, COMPRESSION (716)

90501-06585-00

1
Out of stock

16

BOLT, BUTTON

92017-05010-00

—

$5.77

In stock

17

. CABLE, PULLEY 2

1FK-1133F-00-00

1
Out of stock

18

COVER, VALVE

1FK-13550-00-00

—
Out of stock

19

DAMPER

1FK-13593-00-00

—
Out of stock

20

SCREW, BINDING(1FK)

90154-06033-00

—

$7.03

In stock

21

CLAMP

90462-20149-00

1
Out of stock

22

SCREW, PAN HEAD(3LA)

98517-05010-00

—

$3.52

In stock

23

WASHER(1RW)

92907-05600-00

—
Out of stock

24

GROMMET (462)

90480-13018-00

—

$6.25

In stock

25

COLLAR (899 INTAKE)

90387-06500-00

—
Out of stock

26

HOSE (L400)

90445-082A9-00

—
Out of stock

27

CLIP (16G)

90467-08021-00

—

$6.17

In stock

28

NOZZLE

41R-14489-00-00

—

$8.71

In stock

29

HOSE (L270)

90445-09757-00

1
Out of stock

30

CLIP(41W)

90467-08092-00

—

$6.86

In stock

31

SCREW, WITH WASHER

90159-05119-00

1
Out of stock

32

FUEL PUMP COMP.

1FK-13907-02-00

—
Out of stock

33

HOSE (L300)

90445-126E7-00

—
Out of stock

34

CLIP(3BM)

90467-10135-00

—

$6.91

In stock

35

CASE, AIR CLEANER 1

1FK-14411-01-00

1
Out of stock

36

COVER 1

1FK-14417-00-00

1
Out of stock

37

SEAL

1VJ-14462-00-00

—

$16.08

In stock

38

SCREW, PAN TAP.2 SLIT

97707-50614-00

—
Out of stock

39

JOINT

1FK-14454-00-00

1
Out of stock

40

O-RING (25G)

93210-20573-00

—
Out of stock

41

FILTER

1FK-1445E-00-00

—
Out of stock

42

JOINT, AIR CLEANER 1

1FK-14453-00-00

—
Out of stock

43

HOSE CLAMP ASSY

90450-62006-00

—

$10.77

In stock

44

ELEMENT, AIR CLEANER

1FK-14451-00-00

—
Out of stock

45

CAP, CLEANER CASE 1

1FK-14412-00-00

1
Out of stock

46

SEAL

1VJ-14462-00-00

—

$16.08

In stock

47

SCREW, PAN HEAD

98517-05020-00

—

$1.35

In stock

48

WASHER(1RW)

92907-05600-00

—
Out of stock

49

SEAL

1VJ-14462-00-00

—

$16.08

In stock

50

SEAL

1VJ-14462-00-00

—

$16.08

In stock

51

DUCT

1FK-14437-00-00

—
Out of stock

52

SCREW, PAN TAP.2 SLIT

97707-50614-00

—
Out of stock

53

STAY

1FK-14413-00-00

1
Out of stock

54

STAY 2

1FK-14414-00-00

1
Out of stock
