2000 Yamaha V-MAX CA (VMX1200MC) Meter Diagram

← All diagrams

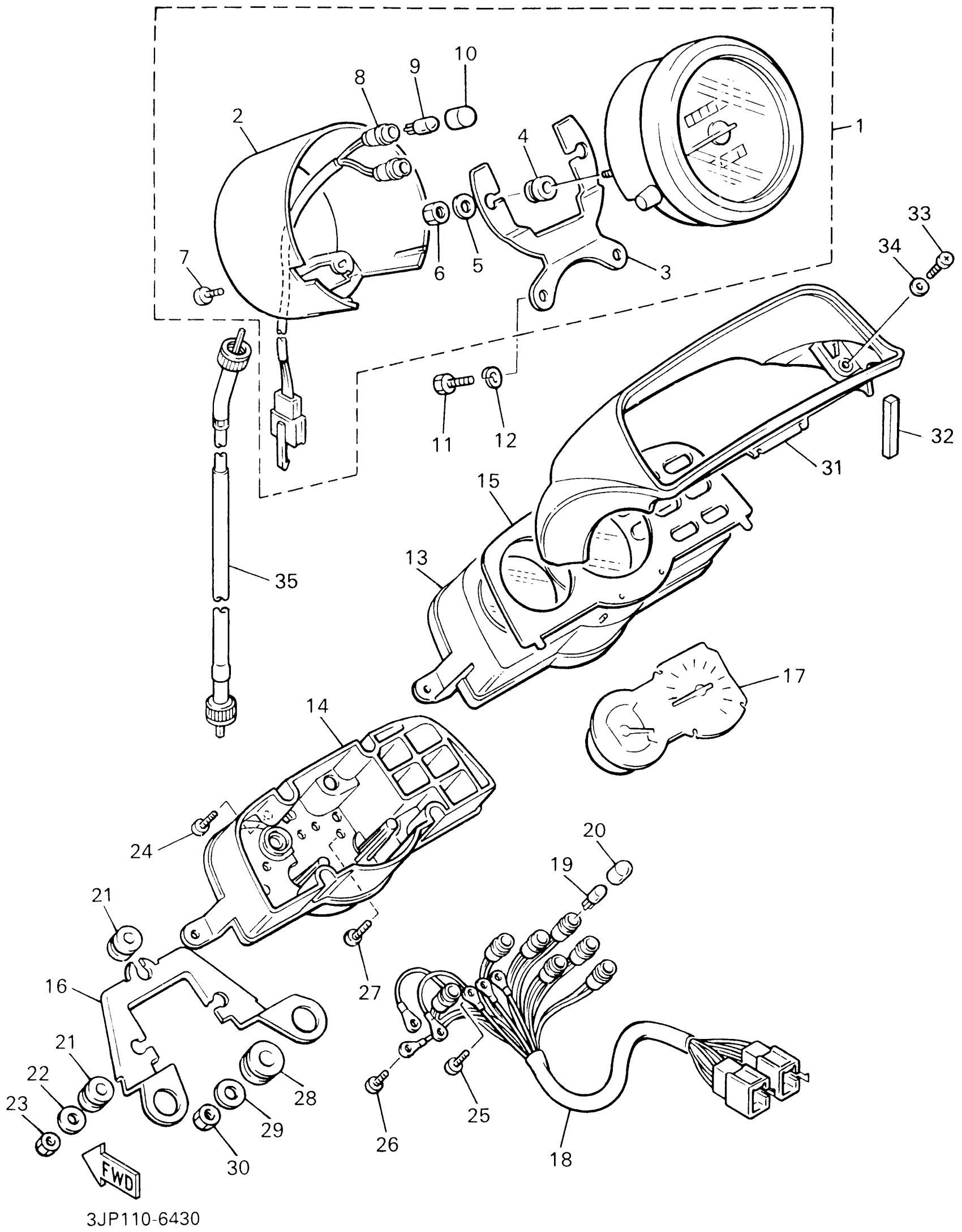

Find the part on the Meter diagram for your 2000 Yamaha V-MAX CA (VMX1200MC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Yamaha V-MAX CA (VMX1200MC) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSY

1FK-83570-A2-00

1
Out of stock

2

COVER, SPEEDOMETER

1FK-83507-00-00

1
Out of stock

3

BRACKET, METER

1FK-83519-00-00

—
Out of stock

4

DAMPER

1FG-83523-00-00

—

$8.82

In stock

5

WASHER(1RW)

92907-05600-00

1
Out of stock

6

NUT, HEXAGON

95317-05600-00

1

$1.10

In stock

7

SCREW, TAPPING (10M)

90164-04009-00

1
Out of stock

8

. SOCKET CORD ASSY

1FK-83509-00-00

1
Out of stock

9

BULB (T6.5 12V-3W)

42X-83517-00-00

1

$6.48

In stock

10

TUBE

1FK-83535-00-00

1
Out of stock

11

BOLT, HEXAGON

97017-06016-00

1

$6.18

In stock

12

WASHER(6TA)

92907-06600-00

1

$0.78

In stock

13

CASE, UPPER

3LR-8353G-00-00

1
Out of stock

14

CASE, INNER

1FK-8353H-00-00

—
Out of stock

15

PANEL,METER

3LR-83611-00-00

1
Out of stock

16

BRACKET, TACHOMETER

1FK-83545-00-00

1
Out of stock

17

TACHOMETER ASSY

1FK-83540-00-00

1
Out of stock

18

SOCKET CORD ASSY

3UF-83520-00-00

—
Out of stock

19

BULB (T6.5 12V-3W)

42X-83517-00-00

1

$6.48

In stock

20

TUBE

1FK-83535-00-00

1
Out of stock

21

DAMPER

1FK-83523-00-00

1
Out of stock

22

WASHER PLATE 803835240000

90201-05032-00

—

$6.71

In stock

23

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

24

SCREW, TAPPING

90164-04005-00

1
Out of stock

25

SCREW, WITH WASHER(36Y)

90159-03102-00

—
Out of stock

26

SCREW, WITH WASHER

90159-03044-00

1
Out of stock

27

SCREW, WITH WASHER

90159-04043-00

1
Out of stock

28

GROMET (3X3)

90480-14229-00

—

$6.17

In stock

29

WASHER, PLATE(36Y)

90201-063J2-00

—

$4.45

In stock

30

NUT(6TA)

95317-06600-00

—

$2.69

In stock

31

COVER, METER

3JP-83559-00-00

1
Out of stock

32

DAMPER 2

1FK-83526-00-00

—

$1.49

In stock

33

SCREW, PAN HEAD

98517-04016-00

—
Out of stock

34

WASHER(JF2)

92907-04600-00

—

$1.23

In stock

35

SPEEDOMETER CABLE ASSY

1FK-83550-11-00

—
Out of stock
