2000 Yamaha V-MAX CA (VMX1200MC) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2000 Yamaha V-MAX CA (VMX1200MC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

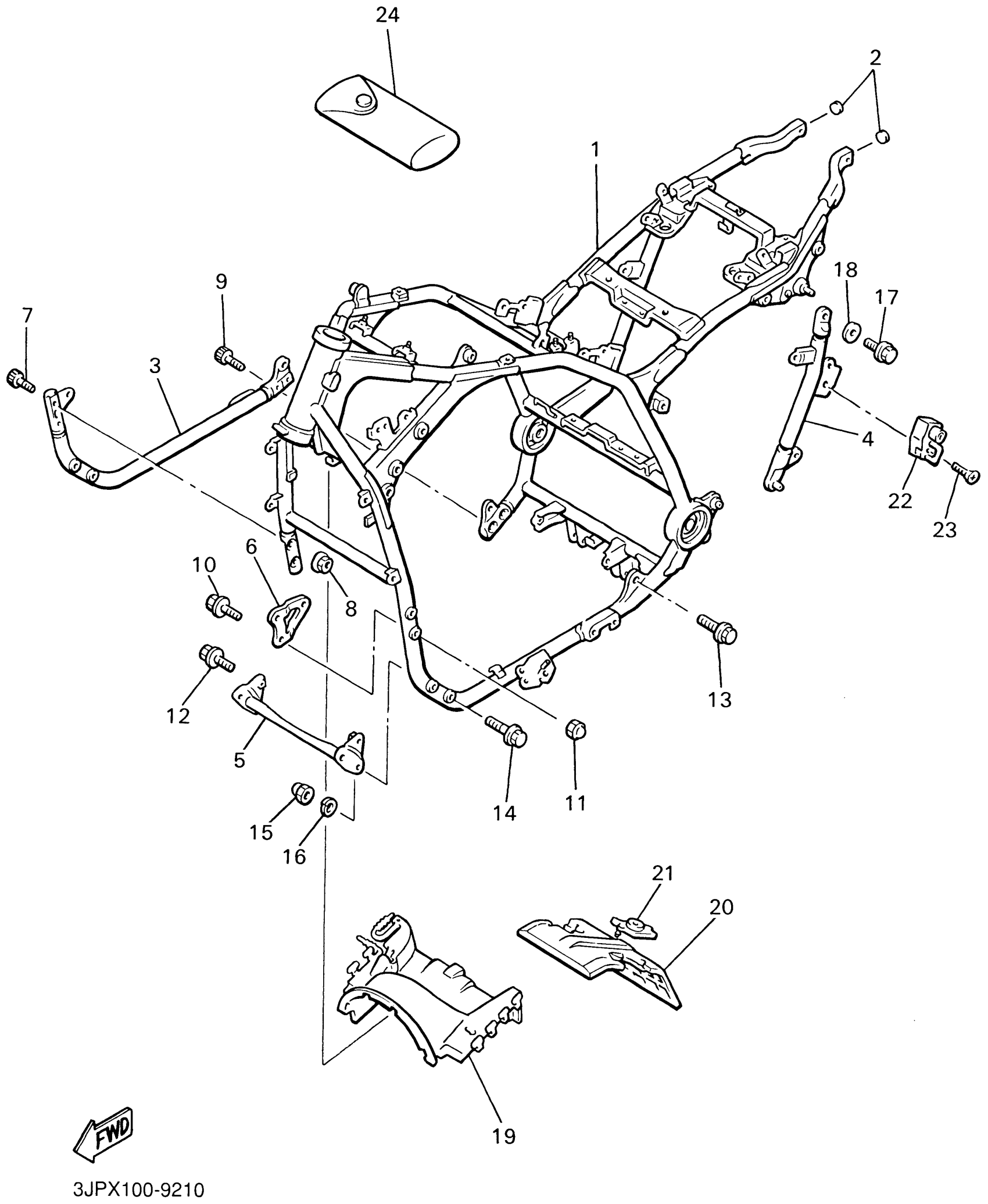

2000 Yamaha V-MAX CA (VMX1200MC) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

2EN-21110-02-33

1
Out of stock

2

PLUG

3YJ-24481-00-00

—
Out of stock

3

DOWN TUBE COMP.

1FK-21140-00-33

1
Out of stock

4

BACK STAY SUB COMP. 1

3UF-21105-00-33

1
Out of stock

5

CROSS BAR COMPLETE

1FK-2141V-10-00

1
Out of stock

6

STAY, ENGINE 2

1FK-21315-00-00

1
Out of stock

7

BOLT, SOCKET

91317-10030-00

1

$6.85

In stock

8

NUT(4KG)

90179-10658-00

1

$7.49

In stock

9

BOLT, SOCKET

91317-10020-00

—

$6.68

In stock

10

BOLT, FLANGE

90105-081A0-00

1
Out of stock

11

NUT, CROWN (5A8)

90176-10033-00

1
Out of stock

12

BOLT, WASHER BASED(1FK)

90105-10376-00

1
Out of stock

13

BOLT, WASHER BASED (26H)

90105-12252-00

1
Out of stock

14

BOLT, FLANGE

95817-08060-00

1

$3.28

In stock

15

NUT, CROWN (12W)

90176-08040-00

1
Out of stock

16

WASHER(JN5)

92907-08100-00

—

$5.98

In stock

17

BOLT WASHER BASED (1J7)

90105-08066-00

—

$6.82

In stock

18

WASHER (853)

90201-08326-00

—

$6.17

In stock

19

COVER

1FK-2117F-01-00

1
Out of stock

20

COVER 2

1FK-2117M-00-00

—
Out of stock

21

COVER 3

1FK-2117N-01-00

—
Out of stock

22

HELMET HANGER ASSY

26H-21308-01-00

—

$74.80

In stock

23

SCREW (4G1)

90149-06154-00

—

$6.91

In stock

24

TOOL KIT

26H-W2810-00-00

1
Out of stock
