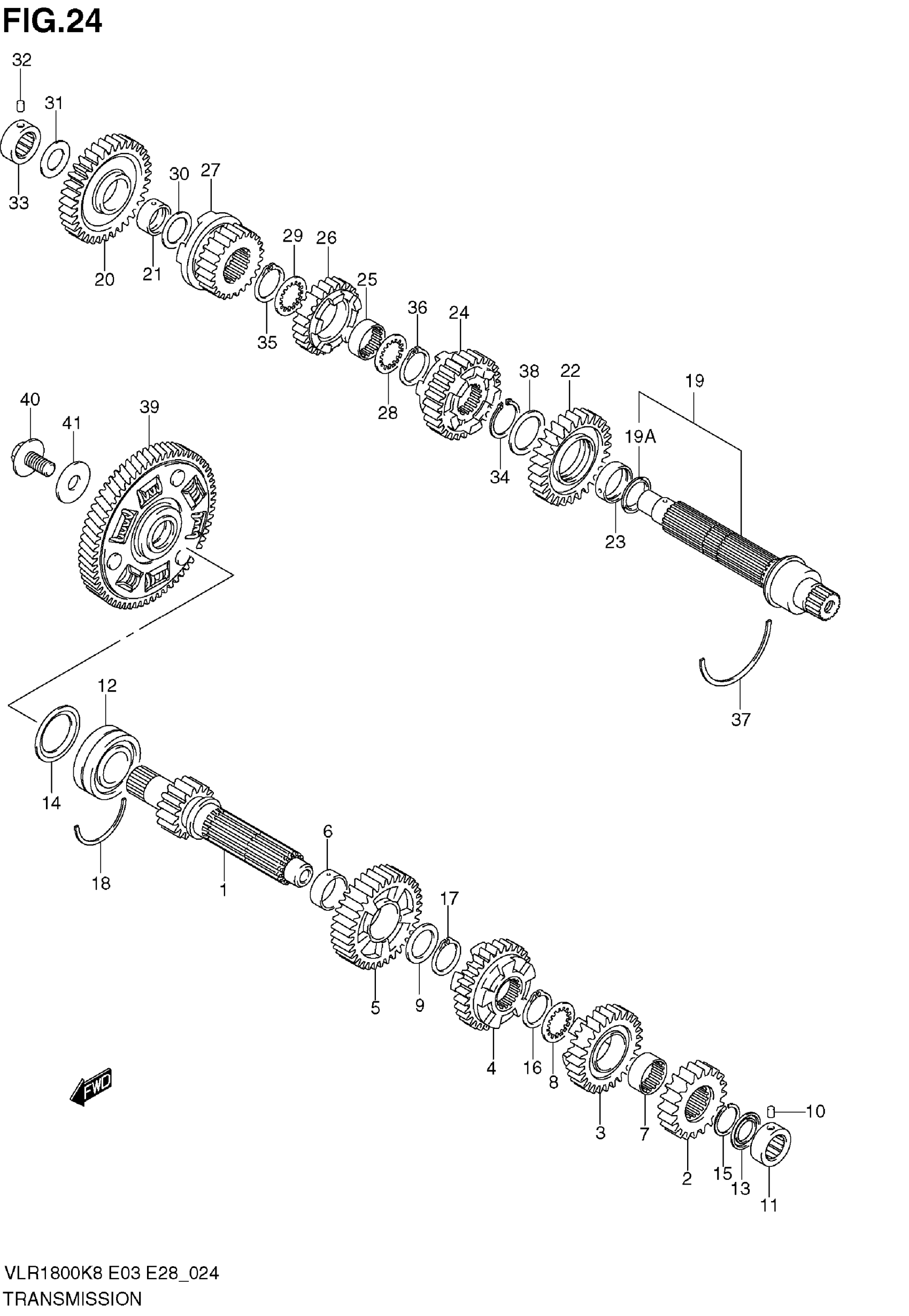

Suzuki VLR1800 (2009) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, CNTR (NT:16)

24121-48G10

$361.78

2

GEAR, 2ND DRIVE (NT:20)

24221-48G10

Unavailable

3

GEAR, 3RD DRIVE (NT:28)

24231-48G00

$206.05

4

GEAR, 4TH DRIVE (NT:29)

24241-48G00

$239.40

5

GEAR, 5TH DRIVE (NT:35)

24251-48G00

$236.67

6

BUSH, 5TH DRIVE GEAR

24252-24F10

$40.03

7

BUSH, 3RD DRIVE GEAR

24262-24F10

$40.03

8

WASHER, 3RD DRIVE GEAR

09167-27003

$7.38

9

WASHER, 5TH DRIVE GEAR | 27X36X2.5

09181-27014

$6.87

10

PIN, CNTR SHAFT BRG, L | 6X10

09261-06003

$1.49

11

BEARING, CNTR SHAFT, L | 20X34X13.5

09263-20087

$54.53

12

BEARING, CNTR SHAFT, R

09267-25012

$169.68

13

SEAL, OIL

09285-20006

$5.88

14

SEAL, COUNTER SHAFT, R

09285-34011

Unavailable

15

CIRCLIP, 2ND DRIVE GEAR

09380-27004

$3.33

16

CIRCLIP, 3RD DRIVE GEAR

09380-27006

$2.73

17

CIRCLIP, 5TH DRIVE GEAR

09380-27006

$2.73

18

C RING, CNTR SHAFT BRG, R

09390-62012

$6.69

19

SHAFT, DRIVE | Includes Item(s) 19A

24130-48G01

$332.32

19A

RING, DRIVE SHAFT FRICT

24136-48G01

$44.80

20

GEAR, 1ST DRIVEN (NT:35)

24311-48G00

$232.28

21

BUSH, 1ST DRIVEN GEAR

24312-24F10

$40.03

22

GEAR, 2ND DRIVEN (NT:28)

24321-48G01

$231.15

23

BUSH, 2ND DRIVEN GEAR

24322-48G00

$36.25

24

GEAR, 3RD DRIVEN (NT:27)

24331-48G00

$247.92

25

BUSH, 4TH DRIVEN GEAR

24332-24F10

$38.53

26

GEAR, 4TH DRIVEN (NT:24)

24341-48G00

$209.15

27

GEAR, 5TH DRIVEN (NT:24)

24351-48G00

$228.48

28

WASHER, 4TH DRIVEN GEAR

09167-30008

$6.65

29

WASHER, 4TH DRIVEN GEAR

09167-30008

$6.65

30

WASHER, 1ST DRIVEN GEAR | 20X34X1.0

09181-20251

$2.77

31

WASHER, 1ST DRIVEN GEAR | 24X34X1.0

09181-24005

$3.21

32

PIN, DRIVE SHAFT BRG, R | 6X10

09261-06003

$1.49

33

BEARING, DRIVE SHAFT, R

09263-20087

$54.53

34

CIRCLIP, 2ND DRIVEN GEAR

09380-30009

$3.15

35

CIRCLIP, 4TH DRIVEN GEAR, R

09380-30009

$3.15

36

CIRCLIP, 4TH DRIVEN GEAR, L

09380-30009

$3.15

37

C RING, DRIVE SHAFT BRG, L

09390-80004

$12.53

38

WASHER, 2ND DRIVEN GEAR

08211-30403

$4.45

39

GEAR ASSY, PRIMARY DRIVEN | NT:58 This part replaces 21200-22810.

21200-22830

$685.47

40

BOLT, PRIMARY DRIVEN GEAR | 12X24

09103-12084

$9.22

41

WASHER, PRIMARY DRIVEN | 12X35X2.0

09160-12045

$3.76
